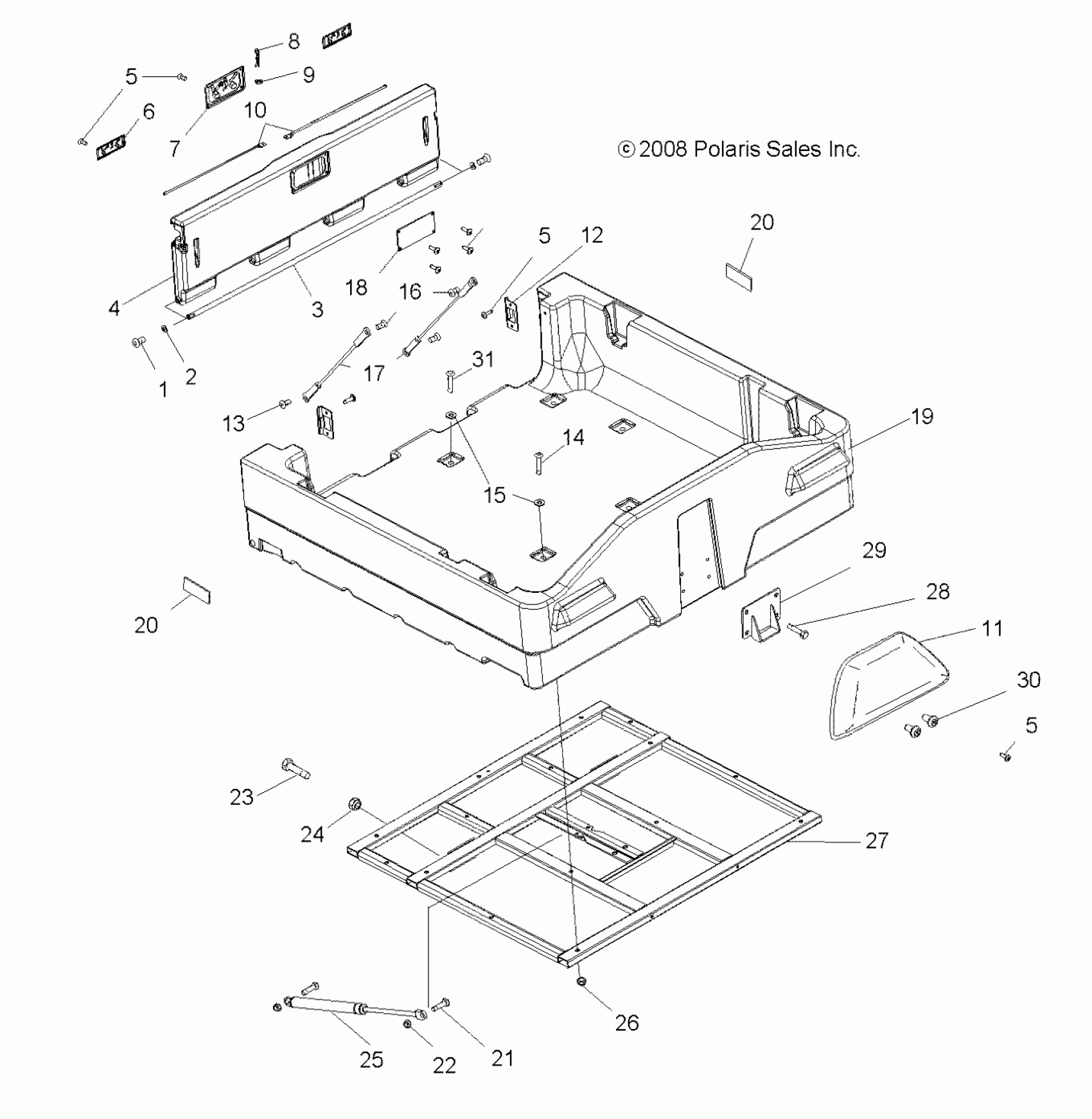

Polaris SPORTSMAN 6X6 - A08CL50AA BODY, DUMP BOX - A08CL50AA (49ATVBOX086X6) Diagram

#

Description
Price

1

SCREW

7515177

$3.19

2

WASHER

7558221

$2.39

3

ROD, HINGE

5132358

$51.99

4

TAILGATE

5433388

$375.99

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

6

LATCH

5433656

$63.99

7

LATCH, PADDLE

5433655

$83.99

8

PIN, HITCH

7661644

$2.39

9

WASHER, RUBBER

7556143

$4.79

10

SHAFT, LATCH

5132373

$11.99

11

COVERING, BACKREST, BLACK

2681664-070

$51.99

11

Asm., Backrest, Black

2682522-070

Unavailable

12

Bracket, Box Latch

5243304

$14.39

13

Screw

7517938

$1.49

14

Screw

7515534

$4.79

15

Washer

7555815

$3.99

16

SCREW

7517742

$5.59

17

Cable, Tailgate

7080881

$39.99

18

Cover, Tailgate, Black

5244068-067

$27.99

19

Box, Molded, Black [Incl. Decal]

5437274-070

$273.02

20

DECAL-REFLECT.2.88,RED

7079925

$7.19

20

DECAL-REFLECT.2.88,RED

7079925

$7.19

21

Bolt

7512329

$3.99

22

NUT-5/16-18 NYLOK-Y

7542324

$1.49

23

Screw

7512492

$1.49

24

Nut, Flange Lock

7542449

$3.99

25

Shock, Dump Box

7041301

$59.99

26

Nut, Flange

7547180

$2.39

27

Support, Box, Black

1012893-067

$323.99

28

Screw

7515350

$3.97

29

Latch, Box, Black

1013125-067

Unavailable

30

Screw

7512084

$1.49

31

Screw

7515440

$3.99
