Description

Price

1

Asm., Clutch Cover, Outer [Incl. Outer Cover,11,12]

2633262

$169.87

2

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$125.46

3

Duct, Clutch Air, Inlet

5437060

$27.79

4

Seal, Cover, Inner

5411553

$23.99

5

Bolt

7512232

$1.49

5

Bolt

7512232

$1.49

6

Asm., Bolt and Washer

7510000

$3.99

7

SEAL, CLUTCH COVER, OUTER

5521738

$42.46

8

Bracket, Clutch Cover, Black

5247524-067

Unavailable

9

SCREW

7512094

$1.59

9

SCREW

7512094

$1.59

10

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

11

O RING-.364X.504X.07

5410542

Unavailable

12

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

13

DECAL, AUTOMATIC TRANSMISSION

7172746

Unavailable

14

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

15

BOOT, DUCT

5412636

$23.99

16

Duct, Air Outlet, Clutch

5433657

$36.31

17

Asm., Screw and Washer

3084205

$3.99

18

BRACKET, CLUTCH, SEAL

5242046

$35.99

19

Seal, Cover, Case

5412637

$43.99

20

Washer, Flat

7558301

$1.49

21

Washer

7555935

$2.39

22

Bracket, Clutch Cover, Front

5247949

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

Spacer

7556091

$3.99

25

Clamp, Narrow Band

7080511

$4.79

26

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

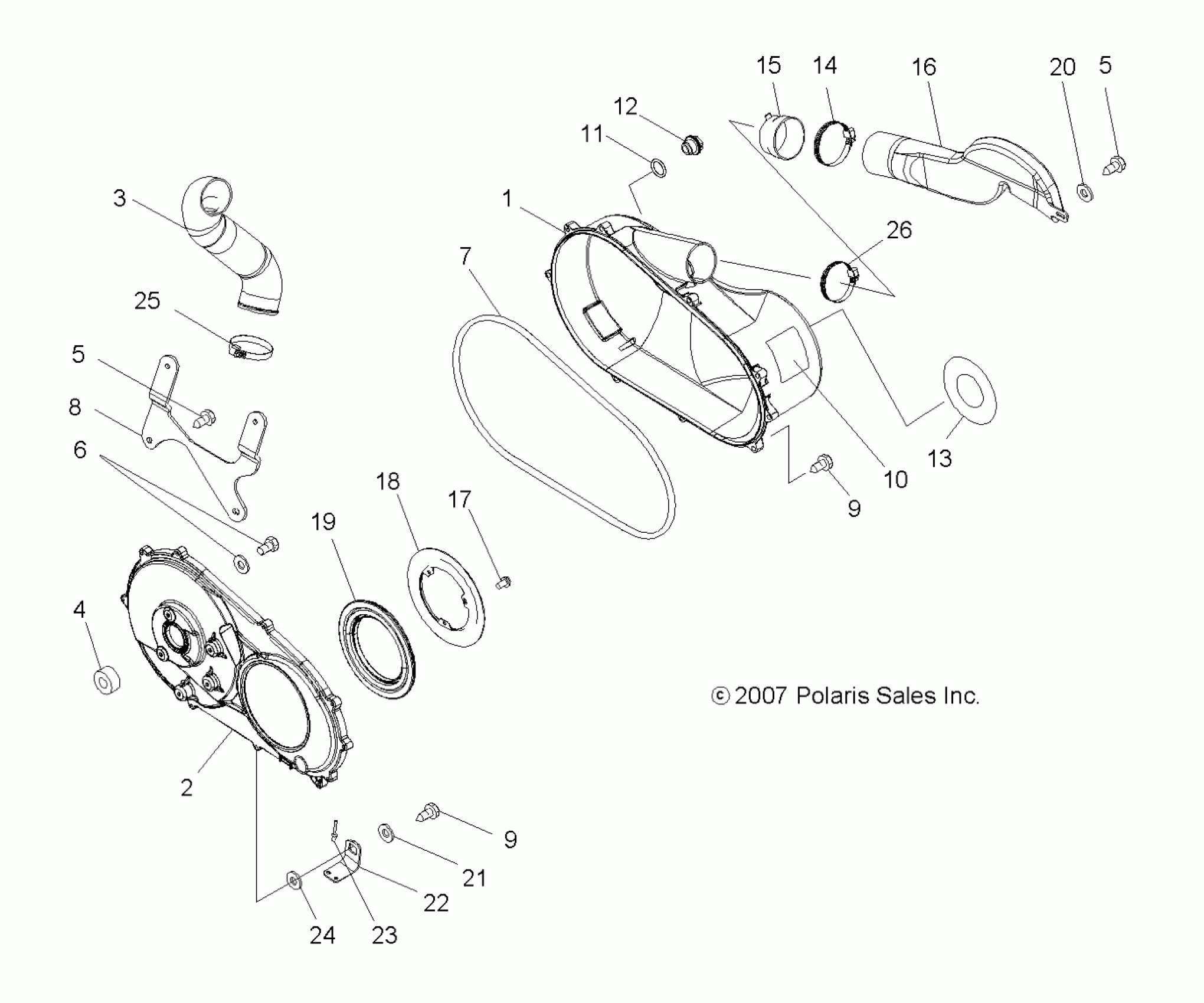

Polaris SPORTSMAN 6X6 - A08CL50AA BODY, CLUTCH COVER - A08CL50AA (49ATVCLUTCHCVR086X6) Diagram

Asm., Clutch Cover, Outer [Incl. Outer Cover,11,12]

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

Duct, Clutch Air, Inlet

Seal, Cover, Inner

Bolt

Bolt

Asm., Bolt and Washer

SEAL, CLUTCH COVER, OUTER

Bracket, Clutch Cover, Black

SCREW

SCREW

DECAL, WARNING, CLUTCH COVER

O RING-.364X.504X.07

PLUG-DRAIN,CLUTCH COVER

DECAL, AUTOMATIC TRANSMISSION

CLAMP-BAND,NARROW 70-90MM

BOOT, DUCT

Duct, Air Outlet, Clutch

Asm., Screw and Washer

BRACKET, CLUTCH, SEAL

Seal, Cover, Case

Washer, Flat

Washer

Bracket, Clutch Cover, Front

RIVET-3/16-.090-.290

Spacer

Clamp, Narrow Band

CLAMP-BAND,NARROW 60-80MM
