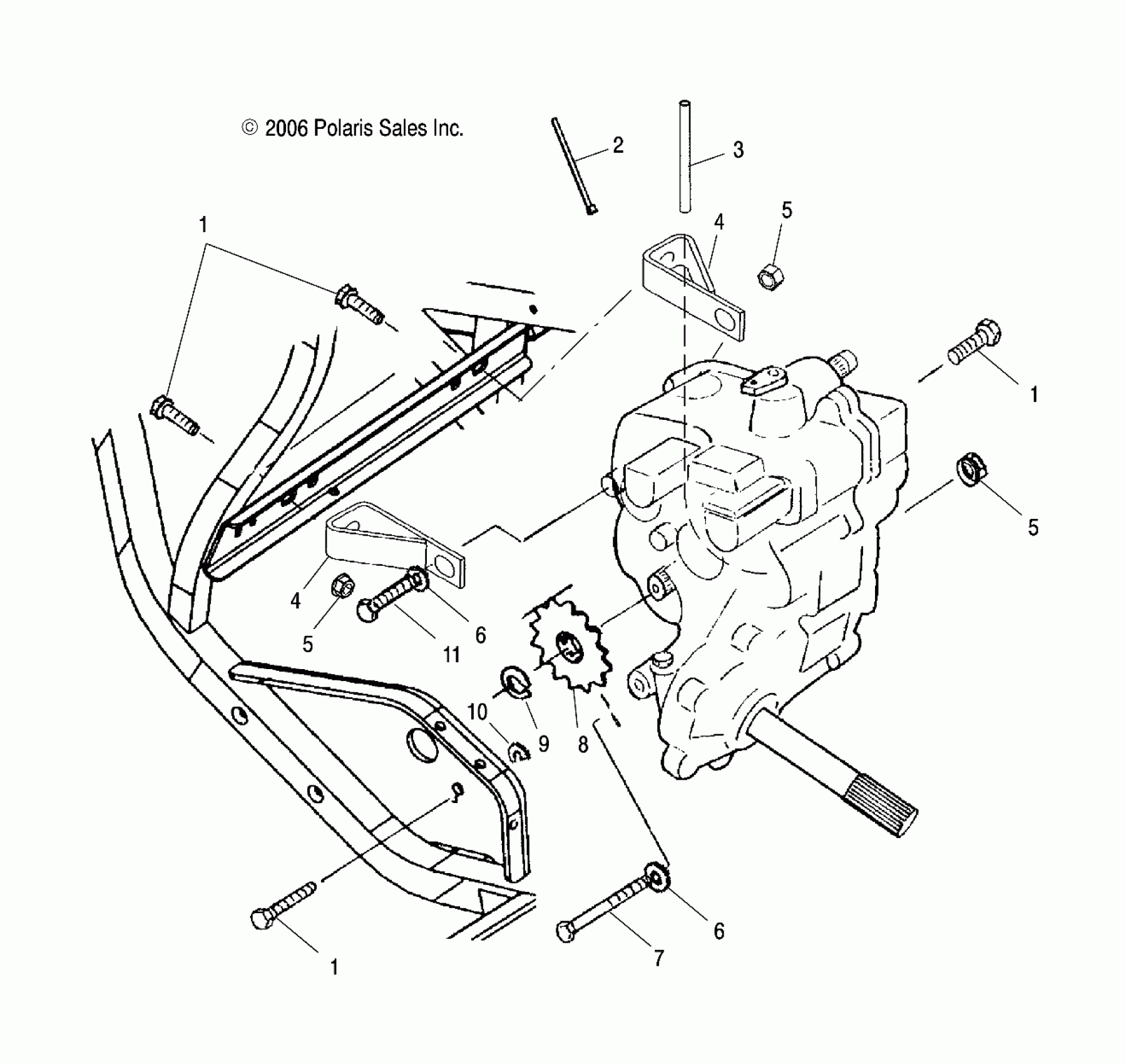

Polaris SPORTSMAN 6X6 - A07CL50AA TRANSMISSION, MOUNTING - A07CL50AA (49ATVGEARCASEMTG6X6) Diagram

#

Description
Price

1

Bolt

7518364

$1.59

1

Bolt

7518364

$1.59

1

Bolt

7518364

$1.59

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

LINE, FUEL

8360009-600

Unavailable

4

Mount, Transmission

1014772

$15.49

4

Mount, Transmission

1014772

$15.49

5

Nut, Flange Lock

7547089

$4.79

5

Nut, Flange Lock

7547089

$4.79

5

Nut, Flange Lock

7547089

$4.79

6

Washer, Flat

7555806

$1.49

6

Washer, Flat

7555806

$1.49

7

SCREW

7517646

$7.19

8

Sprocket, 12T

3221044

$43.99

9

Ring, Snap

7710434

$3.99

10

Shim, .020

5210764

Unavailable

10

Shim, .010

5211065

Unavailable

10

Shim, .030

5211517

Unavailable

11

Screw

7517640

$10.39
