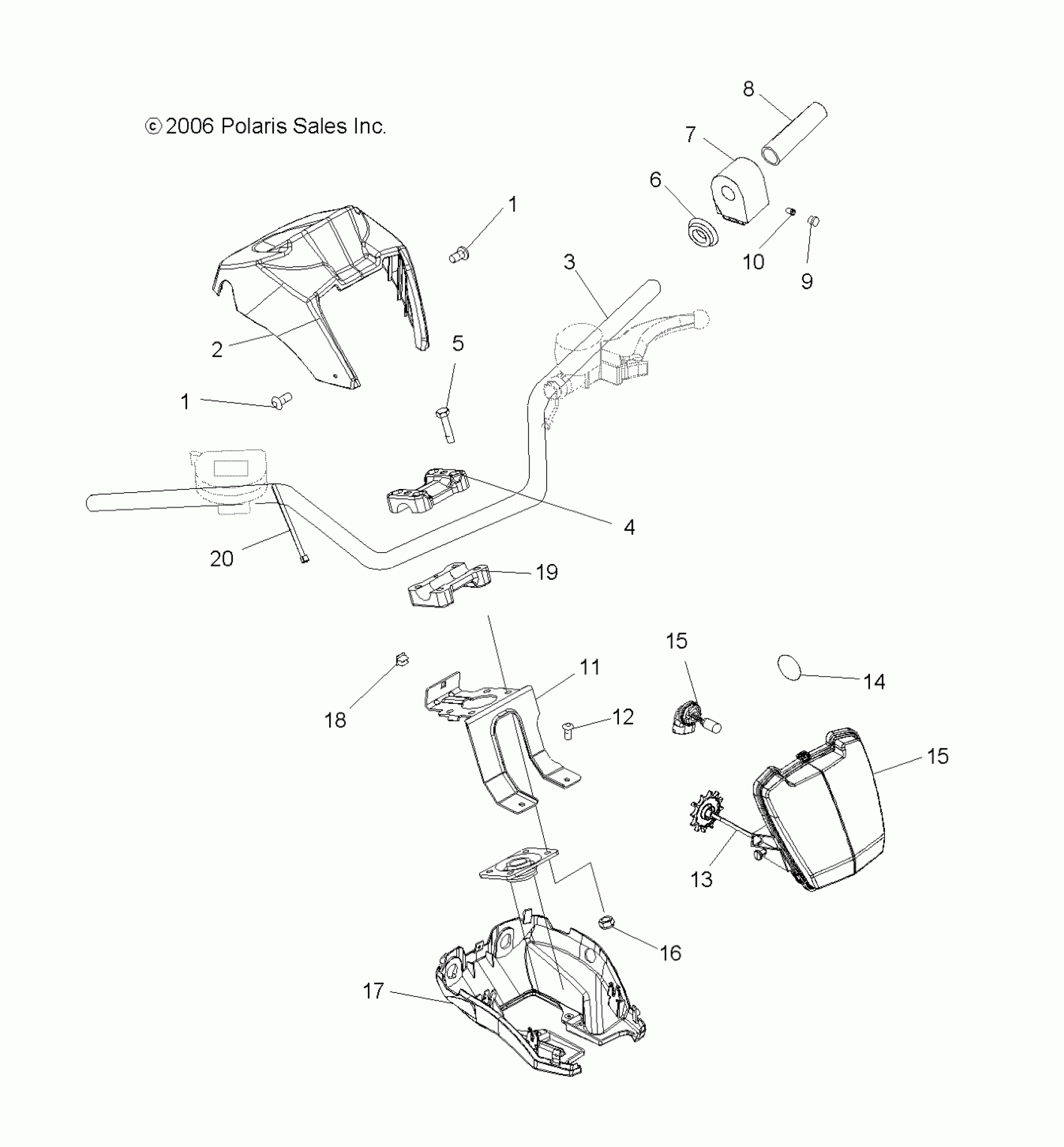

Polaris SPORTSMAN 6X6 - A07CL50AA HANDLEBAR and HEADLIGHT POD - A07CL50AA (49ATVHANDLEBAR6X6) Diagram

#

Description
Price

1

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

1

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

2

Pod, Headlight, Upper, Camo Green Metallic

5436819-400

Unavailable

3

TUBE, HANDLEBAR, BLACK

5244581-067

$83.59

4

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

5

SCREW

7515189

Unavailable

6

Spacer, Switch, LH

5433903

Unavailable

7

Control, LH Hi/Lo/Off

4011385

$38.60

8

Grip, Handlebar, Black

5412900-070

$24.27

9

PLUG, HOLE

5432952

$5.59

10

SCREW, SET

7517625

$4.79

11

BRACKET, POD MOUNTING, BLACK

5244969-067

$44.99

12

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

13

Knob, Adjusting [w/Rod]

4032079

$23.99

14

O-RING

5410163

$1.60

15

KIT-HARNESS,HEADLIGHT

2204143

$71.99

15

BULB-HEADLIGHT,50 WATT

4010253

$34.99

15

Asm., Headlight, 50W

2410429

$107.99

15

KIT-HARNESS,HEADLIGHT

2204143

$71.99

15

BULB-HEADLIGHT,50 WATT

4010253

$34.99

15

Asm., Headlight, 50W

2410429

$107.99

16

Nut, Nylok

7542122

$1.49

17

Pod, Headlight, Lower, Black

5436747-070

$83.99

18

CLIP

7670127

$9.59

19

BLOCK, HANDLEBAR

5631973

$27.99

20

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
