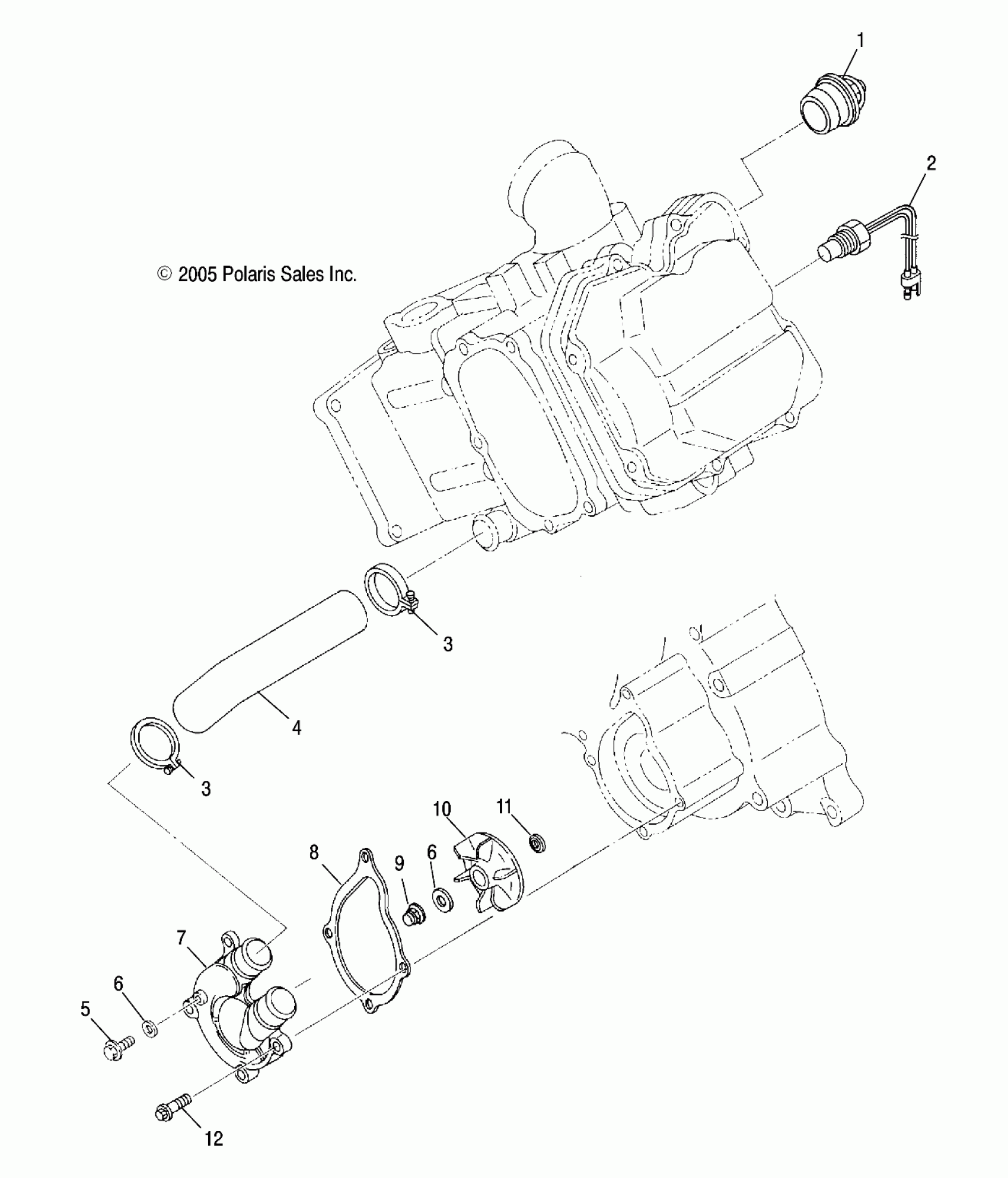

Polaris SPORTSMAN 6X6 - A07CL50AA ENGINE, WATER PUMP - A07CL50AA (4999201649920164D11) Diagram

#

Description
Price

1

THERMOSTAT

3084940

$93.08

2

Asm., Sensor, Thermo

3089246

Unavailable

3

CLAMP, HOSE

3086774

Unavailable

3

CLAMP, HOSE

3086774

Unavailable

4

Hose, Main

3085857

Unavailable

5

Bolt, Flange

3085359

$2.38

6

WASHER, FLAT

7555998

$1.19

6

WASHER, FLAT

7555998

$1.19

7

Cover, Water Pump

3085351

Unavailable

8

GASKET, WATER PUMP

3086840

$6.46

9

NUT, SELF LOCK

3085077

$9.52

10

IMPELLER

3084935

Unavailable

11

WASHER, SEAL

3084942

Unavailable

12

BOLT, FLANGE

3084877

Unavailable
