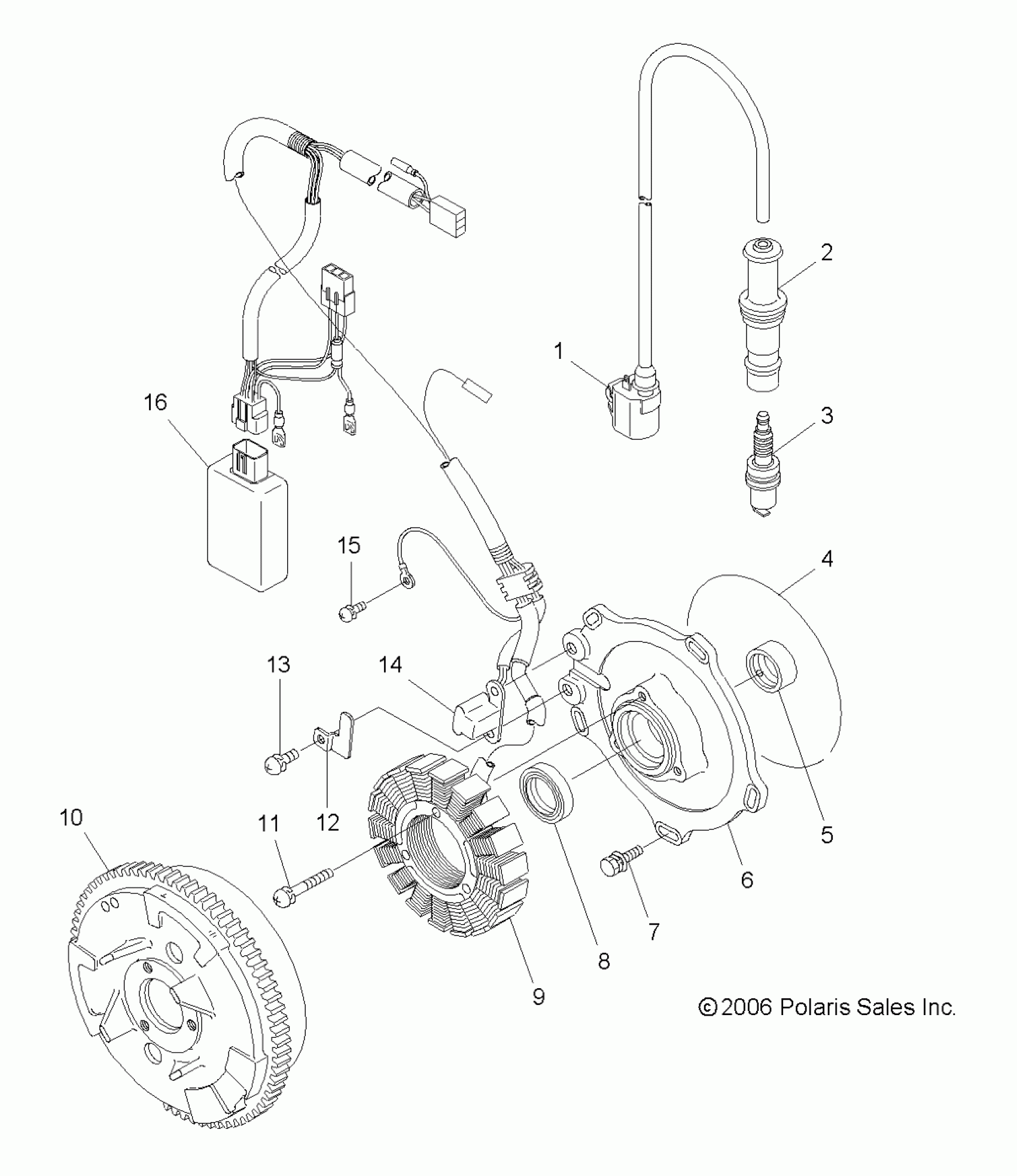

Polaris SPORTSMAN 6X6 - A07CL50AA ENGINE, MAGNETO - A07CL50AA (49ATVMAGNETO076X6) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,2]

3089239

$195.99

2

CAP, SPARK PLUG

3084980

$59.99

3

Plug, Spark, BKR5E

3070175

$3.99

4

O-RING

3084978

$35.99

5

BEARING, METAL

3084972

Unavailable

6

PLATE

3089248

Unavailable

6

Asm., Plate [Incl. 5,6,8,9,11-15]

3089545

$439.99

7

ASM., BOLT AND WASHER

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

STATOR [INCL. 14]

3089546

Unavailable

10

Flywheel w/Ring Gear

3089544

Unavailable

11

ASM., SCREW AND WASHER

3089547

$3.19

12

BAND, PULSE

3089250

Unavailable

13

ASM., SCREW AND WASHER

3084976

Unavailable

14

COIL, PULSER

3089254

$103.99

15

ASM., SCREW AND WASHER

3081256

$3.19

16

CDI System

3089238

$375.99
