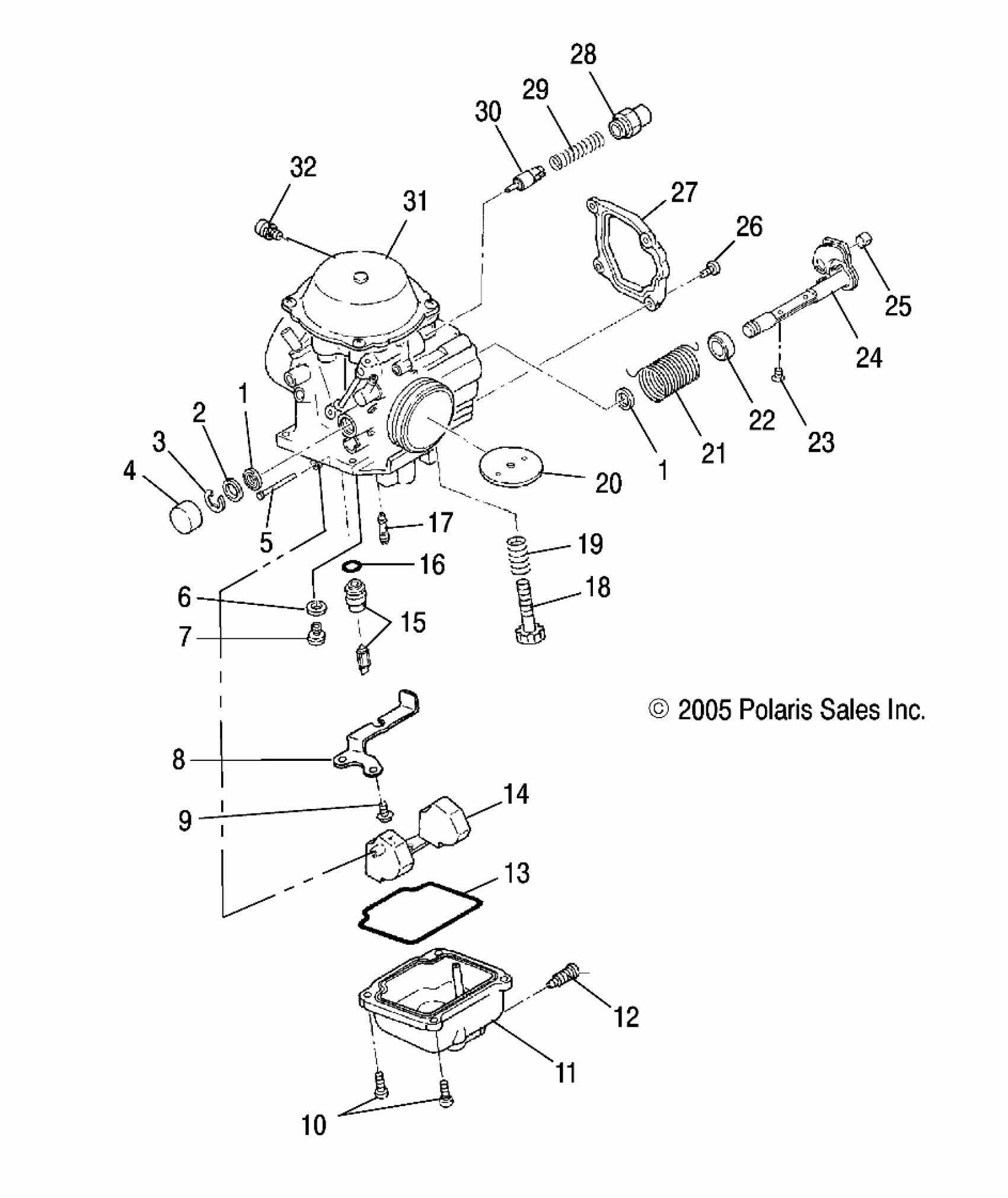

Polaris SPORTSMAN 6X6 - A07CL50AA ENGINE, CARBURETOR - A07CL50AA (4999201649920164D08) Diagram

#

Description
Price

1

SEAL

3130515

$11.99

1

SEAL

3130515

$11.99

2

PACKING

-------

Unavailable

3

E-RING

3130518

$1.59

4

CAP

3130519

$10.39

5

PIN, FLOAT

3130361

$8.89

6

WASHER

3130014

$1.59

7

Jet, Main, #142.5

3130566

$8.08

8

PLATE

3130594

$27.99

9

SCREW

3130591

$3.99

10

SCREW

3130520

$1.59

11

Asm., Float Body

3130590

$103.99

12

SCREW

3130521

$10.39

13

O-RING

3130532

$31.99

14

ASM., FLOAT

3130529

$79.99

15

VALVE, NEEDLE, 1.5

3131360

$47.99

16

O-RING

3130533

$5.59

17

JET, PILOT, #40

3130624

$23.99

18

SCREW, ADJUST

3131423

$23.99

19

SPRING

3130836

$7.27

20

Valve, Throttle, 100

3130502

$47.99

21

SPRING

3130589

$23.99

22

Ring

3130514

$7.19

23

SCREW

3130501

$3.99

24

Asm., Throttle Shaft

3130513

$79.99

25

GUIDE, CABLE

3130543

$27.99

26

SCREW

3130535

$7.19

27

COVER

3130511

$43.99

28

Holder, Guide

3130199

$28.32

29

SPRING

3130538

$4.79

30

Asm., Plunger

3130539

$35.99

31

Asm., Carburetor [Incl. 1-24,26,28-32]

3131572

$653.56

32

Asm., Screw and Washer

3084205

$3.99
