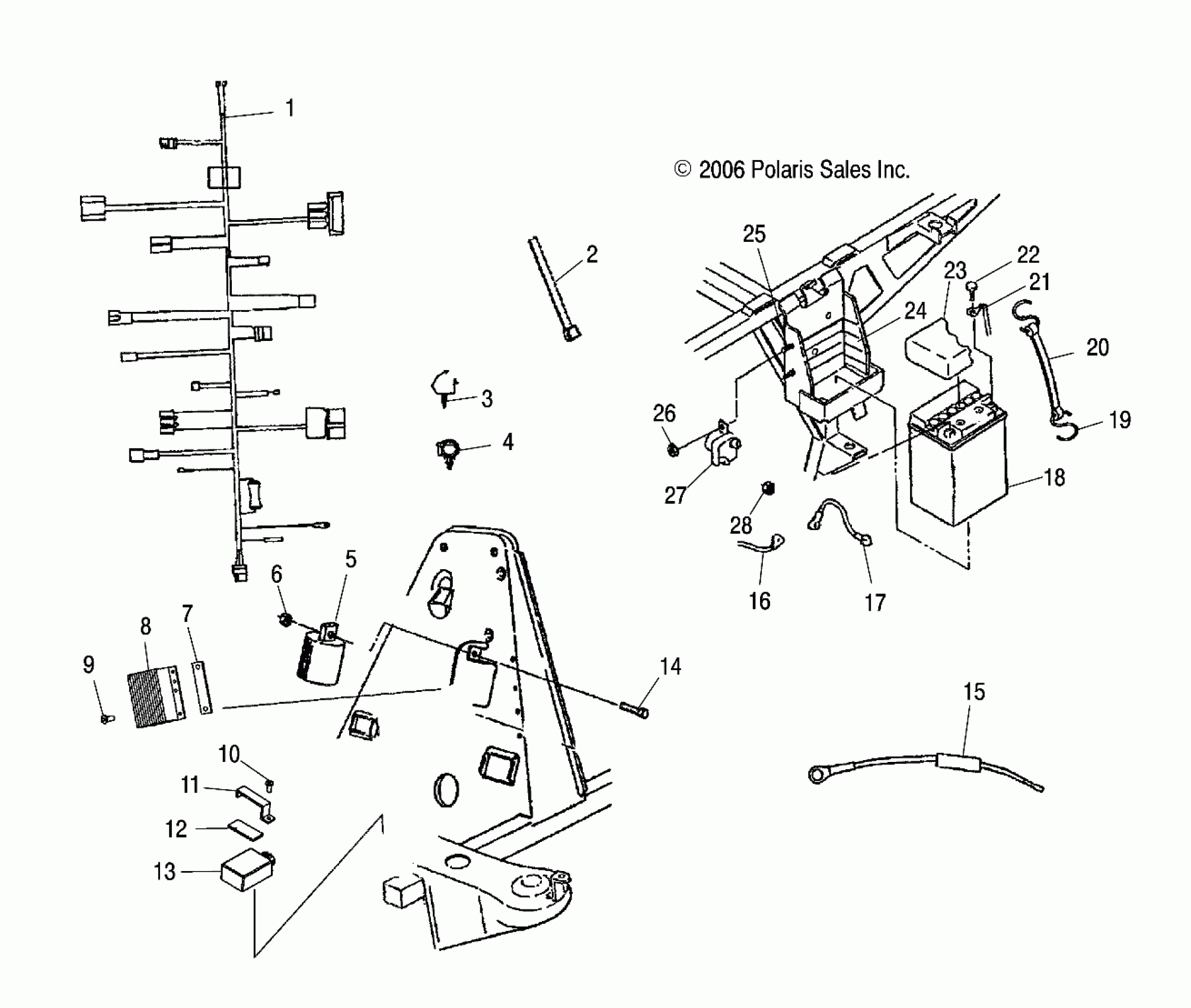

Polaris SPORTSMAN 6X6 - A07CL50AA ELECTRICAL - A07CL50AA (49ATVELECT6X6) Diagram

#

Description
Price

1

Kit, Harness, Resistor Module

2204890

$161.49

1

Harness, Main [Incl. 15, Resistor]

2410882

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CLIP, ROUTING

7670109

$2.38

4

CLIP, ROSEBUD

4020139

$4.76

5

Asm., Coil, Ignition

3089239

$210.46

6

Nut, Nylok

7541925

$0.79

7

Heat Sink

5247782

$10.63

8

Control, Module

4011568

$586.65

9

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

10

SCREW

7512024

$4.76

11

BRACKET, CDI

5246747

$8.08

12

Pad

5810317

Unavailable

13

CDI System

3089238

$444.43

14

BOLT

7512007

$3.97

15

Kit, Fusible Link, .8 MM

2202607

$39.68

16

Cable, Solenoid/Starter

4010093

$48.56

17

Cable, Battery/Solenoid

4010094

Unavailable

18

Battery

4140006

$99.99

18

Tube, Battery Vent

5432077

$8.89

19

Hook, Battery Strap

7010032

$1.59

20

Strap, Holddown, Battery

5412499

$4.84

21

Cable, Battery/Engine

4010095

Unavailable

22

Kit, Battery Bolt

2200361

Unavailable

23

Cover, Battery

5431769

$15.37

24

PAD-BATTERY

5810290

$7.27

25

Screw

7512027

$1.19

26

Nut, Nylok

7518287

$3.17

27

Solenoid, Starter

4010947

$47.60

28

NUT

7547270

$3.97
