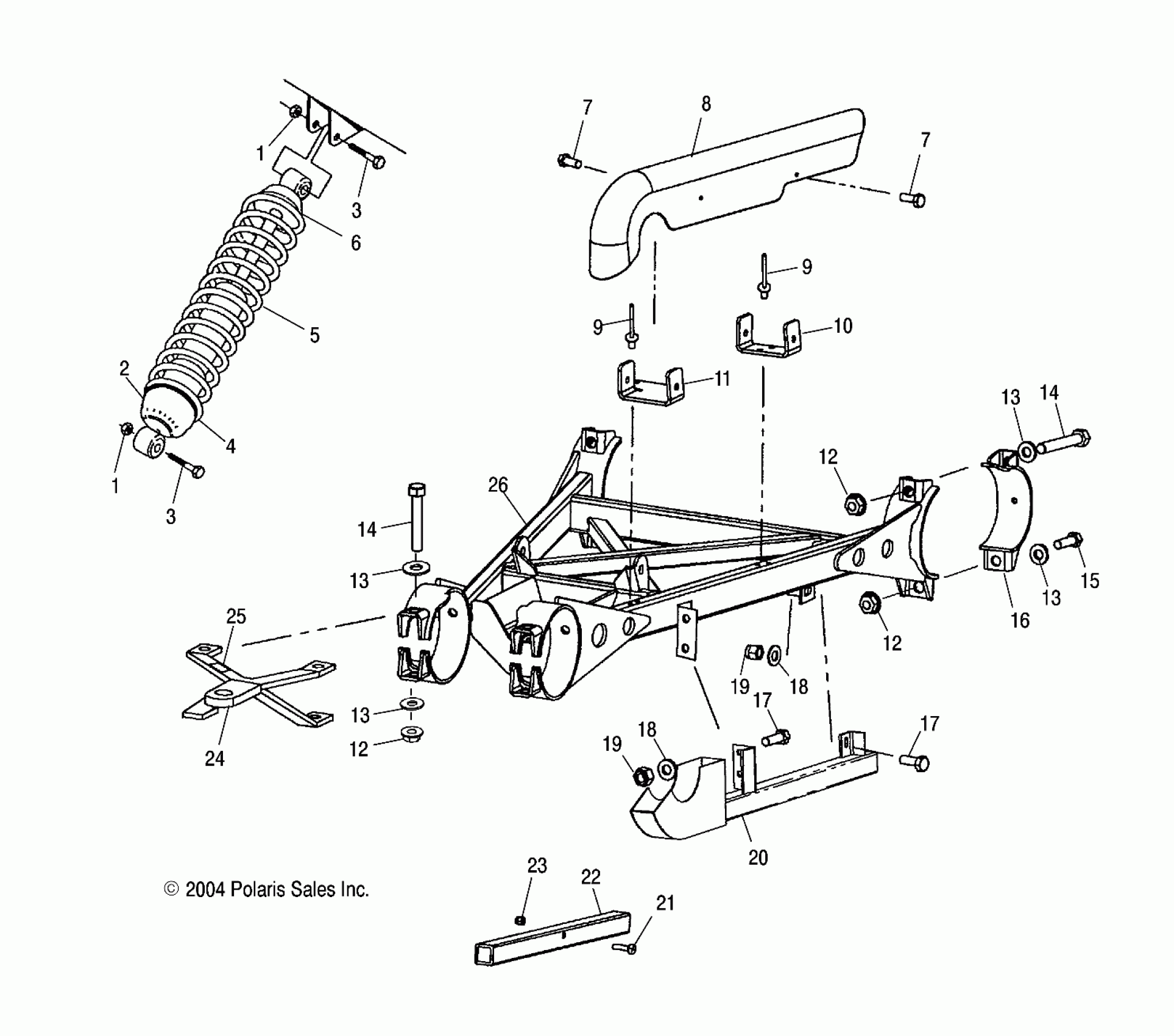

Polaris SPORTSMAN 6X6 - A05CL50AA SWING ARM WELDMENT (REAR) - A05CL50AA (4995019501C02) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Shock, Rear

7041963

Unavailable

3

Screw

7515415

$1.49

3

Screw

7515415

$1.49

4

Washer

7556142

Unavailable

5

Spring, Compression, Black

7041880-067

Unavailable

6

Retainer, Short

5241147

$10.03

7

SCREW

7517386

$1.49

7

SCREW

7517386

$1.49

8

Cover, Chain

5433539

$77.44

9

RIVET-3/16-.090-.290

7661637

$1.49

9

RIVET-3/16-.090-.290

7661637

$1.49

10

Mount, Chain Cover, Front, Black

5244077-067

Unavailable

11

Mount, Chain Cover, Rear, Black

5244078-067

Unavailable

12

Nut, Flange

7542522

$5.59

12

Nut, Flange

7542522

$5.59

12

Nut, Flange

7542522

$5.59

13

Washer

7555883

$3.99

13

Washer

7555883

$3.99

13

Washer

7555883

$3.99

13

Washer

7555883

$3.99

14

Bolt

7512576

$7.99

14

Bolt

7512576

$7.99

15

BOLT

7512520

$4.79

16

Bracket, Swing Arm

1580067-067

Unavailable

17

Bolt

7515321

$1.49

17

Bolt

7515321

$1.49

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

18

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

Guard, Chain, Lower, Black

1013327-067

$224.99

21

Screw

7515117

$1.49

22

Guide, Chain, Rear

5521279

$43.99

23

Nut, Nylok

7541925

$1.49

24

Kit, Hitch [Incl. 12-14]

2200472

Unavailable

25

DECAL, HITCH, 1500 LBS.

7170509

$6.39

26

Extension, Swing Arm, Black

1541344-067

$849.99
