Description

Price

1

Bezel

5434380

Unavailable

2

Asm., Cluster, Instrument

3280431

$343.99

3

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

5

Pod, Headlight, Upper, Camo Green

5434284-400

$133.56

6

ASM., THROTTLE CONTROL, AWD [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 5]

-------

Unavailable

7

TUBE, HANDLEBAR, BLACK

5244581-067

$83.59

8

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

9

SCREW

7515189

Unavailable

10

ASM., MASTER CYLINDER [SEE CONTROLS - RH, MASTER CYLINDER/BRAKE LINE PG. B9 FOR DETAILS]

-------

Unavailable

11

Spacer, Switch, LH

5433903

Unavailable

12

Switch, Handlebar, Off/Lo/Hi

4010592

$38.60

13

Grip, Handlebar, Black

5433834-070

$24.27

14

PLUG, HOLE

5432952

$5.59

15

SCREW, SET

7517625

$4.79

16

BRACKET, POD MOUNTING, BLACK

5244969-067

$44.99

17

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

18

Knob, Adjusting [w/Rod]

4032079

$23.99

19

O-RING

5410163

$1.60

20

KIT-HARNESS,HEADLIGHT

2204143

$71.99

20

BULB-HEADLIGHT,50 WATT

4010253

$34.99

20

Asm., Head Lamp

2410268

$109.27

21

CABLE, CHOKE

7081171

Unavailable

22

Nut, Nylok

7542122

$1.49

23

Receptacle, Pod Mount, 12V

4010638

$24.27

24

Pod, Headlight, Lower, Black

5433762-070

$114.99

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

25

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

4010278

Unavailable

25

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

25

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

26

Screw

7517658

$5.59

27

Sensor

4010298

$111.99

28

Cap, Sensor

5132382

$23.99

29

KEY SWITCH KEY COVER

5433534

$12.35

30

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

31

Nut, Choke

7080922

$3.19

32

Pad, Adhesive

5812563

$1.49

33

CLIP

7670127

$9.59

34

BLOCK, HANDLEBAR

5631973

$27.99

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

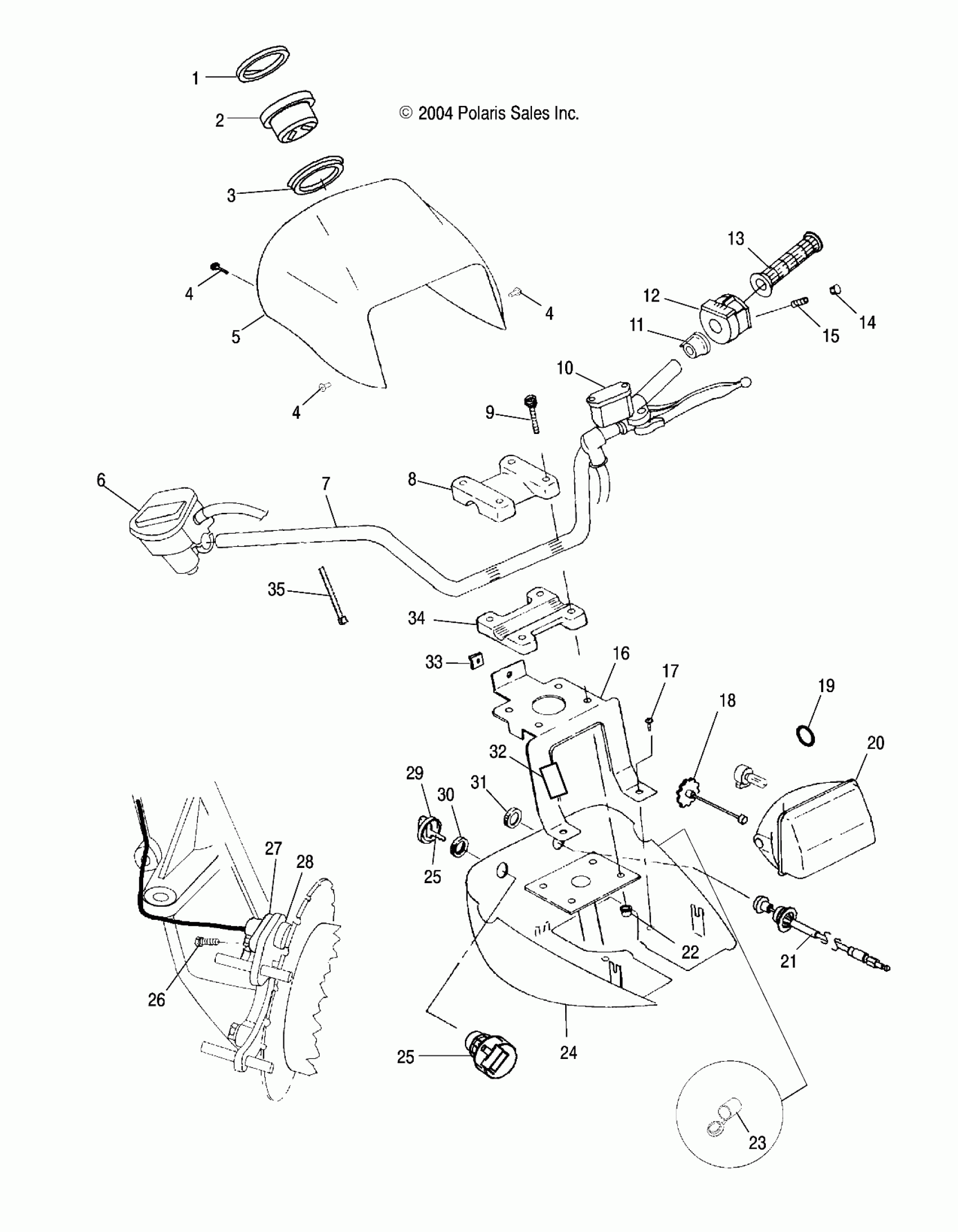

Polaris SPORTSMAN 6X6 - A05CL50AA HANDLEBAR and HEADLIGHT POD - A05CL50AA (4995019501D01) Diagram

Bezel

Asm., Cluster, Instrument

MOUNT-RUBBER,INSTR. CLUSTER

SCR-#8X.625,SELF TAP-PH/PN-ZTB

SCR-#8X.625,SELF TAP-PH/PN-ZTB

SCR-#8X.625,SELF TAP-PH/PN-ZTB

Pod, Headlight, Upper, Camo Green

ASM., THROTTLE CONTROL, AWD [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 5]

TUBE, HANDLEBAR, BLACK

BLOCK, HANDLEBAR, PEGGED

SCREW

ASM., MASTER CYLINDER [SEE CONTROLS - RH, MASTER CYLINDER/BRAKE LINE PG. B9 FOR DETAILS]

Spacer, Switch, LH

Switch, Handlebar, Off/Lo/Hi

Grip, Handlebar, Black

PLUG, HOLE

SCREW, SET

BRACKET, POD MOUNTING, BLACK

SCR-#8X1/2,TR/PH,TYPE B-Y

Knob, Adjusting [w/Rod]

O-RING

KIT-HARNESS,HEADLIGHT

BULB-HEADLIGHT,50 WATT

Asm., Head Lamp

CABLE, CHOKE

Nut, Nylok

Receptacle, Pod Mount, 12V

Pod, Headlight, Lower, Black

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

Switch, Key, 3 Position [Incl. Key]

BLANK, KEY, SERIES 2000, 2100, 6700, 6800

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

Switch, Key, 3 Position [Incl. Key]

Screw

Sensor

Cap, Sensor

KEY SWITCH KEY COVER

NUT-IGNITION SWITCH,HOBBS

Nut, Choke

Pad, Adhesive

CLIP

BLOCK, HANDLEBAR

CABLE-TIE,DIA12-50MM,WTHR-RES.
