Partiron

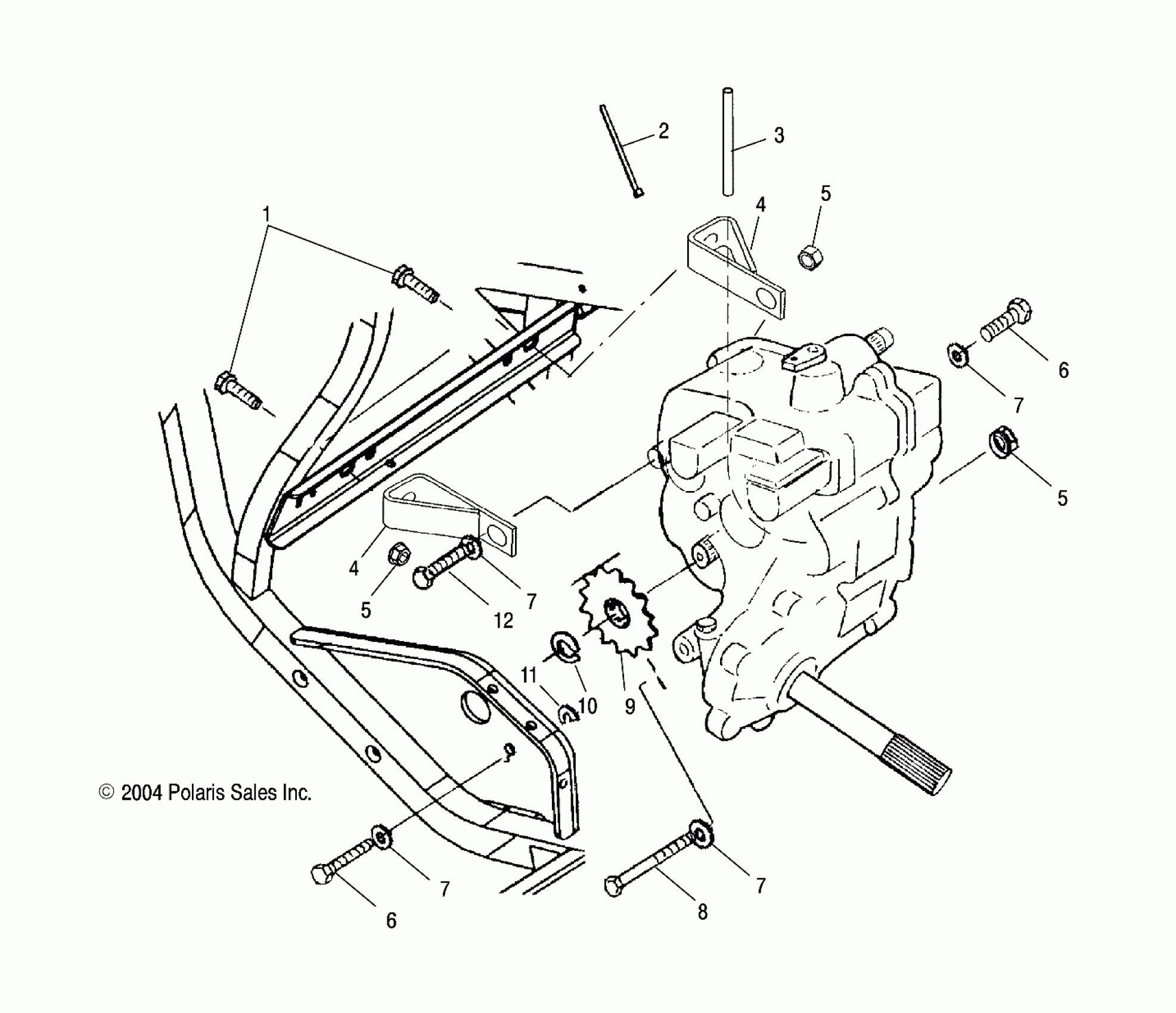

Polaris SPORTSMAN 6X6 - A05CL50AA GEARCASE MOUNTING - A05CL50AA (4995019501C08) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

Line, Vent

8360009-600

Unavailable

4

Mount, Transmission, Rear

1014772

$15.49

4

Mount, Transmission, Rear

1014772

$15.49

5

Nut, Flange Lock

7547089

$4.79

5

Nut, Flange Lock

7547089

$4.79

5

Nut, Flange Lock

7547089

$4.79

6

Screw

7512492

$1.49

6

Screw

7512492

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

7

Washer, Flat

7555806

$1.49

8

SCREW

7517646

$7.19

9

Sprocket, 12T

3221044

$43.99

10

Ring, Snap

7710434

$3.99

11

Shim, .020

5210764

Unavailable

11

Shim, .010

5211065

Unavailable

11

Shim, .030

5211517

Unavailable

12

Screw

7517640

$10.39
