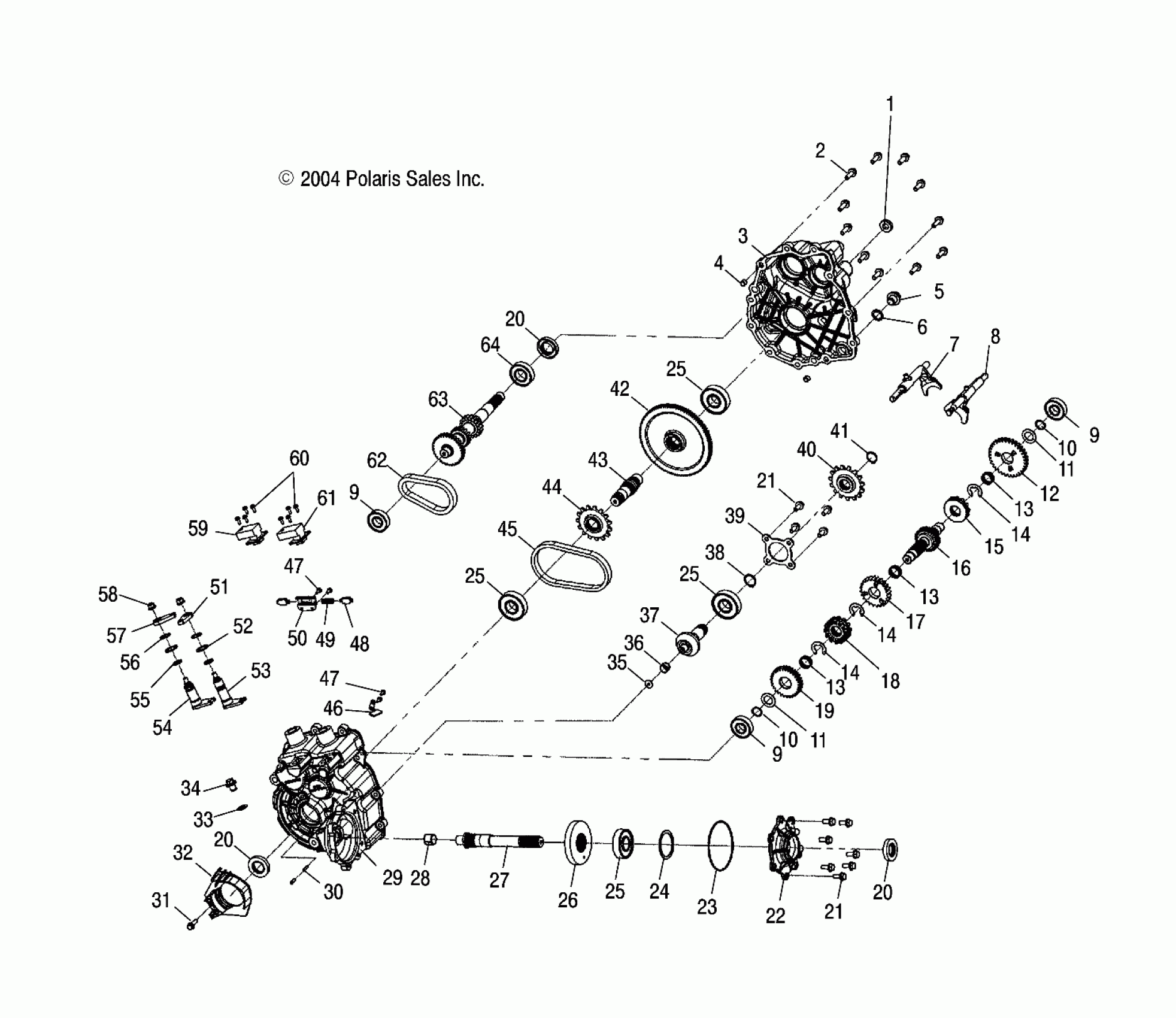

Polaris SPORTSMAN 6X6 - A05CL50AA GEARCASE - A05CL50AA (4995019501C13) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. All]

1341428

Unavailable

1

Bushing, Pivot

3233527

$39.99

2

Screw

3233252

$5.69

3

Gearcase, LH

3233632

$354.99

4

Pipe, Knock

3233529

$10.99

5

Plug

3233448

$23.81

6

Washer

3233035

Unavailable

7

Fork, Shift, Low

3233706

$119.05

8

Fork, Shift, H/R

3233633

$141.65

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

9

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

10

Ring, Retaining

3233177

$6.46

10

Ring, Retaining

3233177

$6.46

11

Washer

3233176

$9.52

11

Washer

3233176

$9.52

12

Gear, 33T

3233731

Unavailable

13

BEARING, NEEDLE

3233718

$35.71

13

BEARING, NEEDLE

3233718

$35.71

13

BEARING, NEEDLE

3233718

$35.71

14

Ring, Retaining

3233720

$9.52

14

Ring, Retaining

3233720

$9.52

14

Ring, Retaining

3233720

$9.52

15

Dog, Engagement, Low

3233732

$178.08

16

Shaft, Reverse, 29T

3233733

Unavailable

17

Sprocket, 24T

3233719

$109.27

18

Dog, Engagement, H/R

3233721

Unavailable

19

Gear, 30T

3233722

Unavailable

20

Seal, Triple Lip

3233788

$32.37

20

Seal, Triple Lip

3233788

$32.37

20

Seal, Triple Lip

3233788

$32.37

21

Screw

3233539

Unavailable

21

Screw

3233539

Unavailable

22

Cover, Snorkel

3233556

$31.11

23

O-Ring

3233555

$6.06

24

SHIM

3233554

$39.99

25

BEARING

3233020

$47.62

25

BEARING

3233020

$47.62

25

BEARING

3233020

$47.62

25

BEARING

3233020

$47.62

26

Gear, 25T

3233898

$229.37

27

Shaft, Snorkel

3233899

$133.56

28

BUSHING-GARLOCK

3233552

$23.81

29

Gearcase, HLR, RH

3233895

Unavailable

30

Vent

3233037

Unavailable

31

Screw

3233026

$6.46

32

Guide, Chain

3233897

$59.99

33

Washer, Nylon

3233872

$9.52

34

Plug, Oil Fill

3233711

Unavailable

35

Washer, Thrust

3233542

$11.32

36

Bushing

3233541

$23.81

37

Shaft, Pinion

3233540

$158.73

38

RING, RETAINING

3233306

$4.76

39

Cover, Bearing

3233263

Unavailable

40

Sprocket, 15/22T

3233730

Unavailable

41

Ring, Retaining

3233537

$6.99

42

Gear, 100T

3233360

Unavailable

43

Shaft, Output

3233544

$174.99

44

Sprocket, 15/26T

3233729

$97.13

45

Chain, Roller

3233546

$68.79

46

Deflector, Oil

3233043

$13.10

47

Screw, Tapping w/Lock Washer

3233747

Unavailable

47

Screw, Tapping w/Lock Washer

3233747

Unavailable

48

Pin, Interlock

3233308

Unavailable

49

Spring

3233032

$13.75

50

Bracket, Interlock

3233309

$20.48

51

Bellcrank

3233153

$32.37

52

Washer

3233040

$9.52

53

Shaft, Shift, H/R

3233737

$71.43

54

Shaft, Shift

3233549

Unavailable

55

O-Ring

3233548

$33.24

56

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

57

Bellcrank

3233547

$56.99

58

Nut, Flange Lock

3233961

$3.32

59

Switch, 2 Position

3234001

Unavailable

60

SCREW

3233749

$5.65

61

Switch, 3 Position

3234002

$174.99

62

Chain, Silent

3233036

Unavailable

63

Shaft, Input

3233704

Unavailable

64

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75
