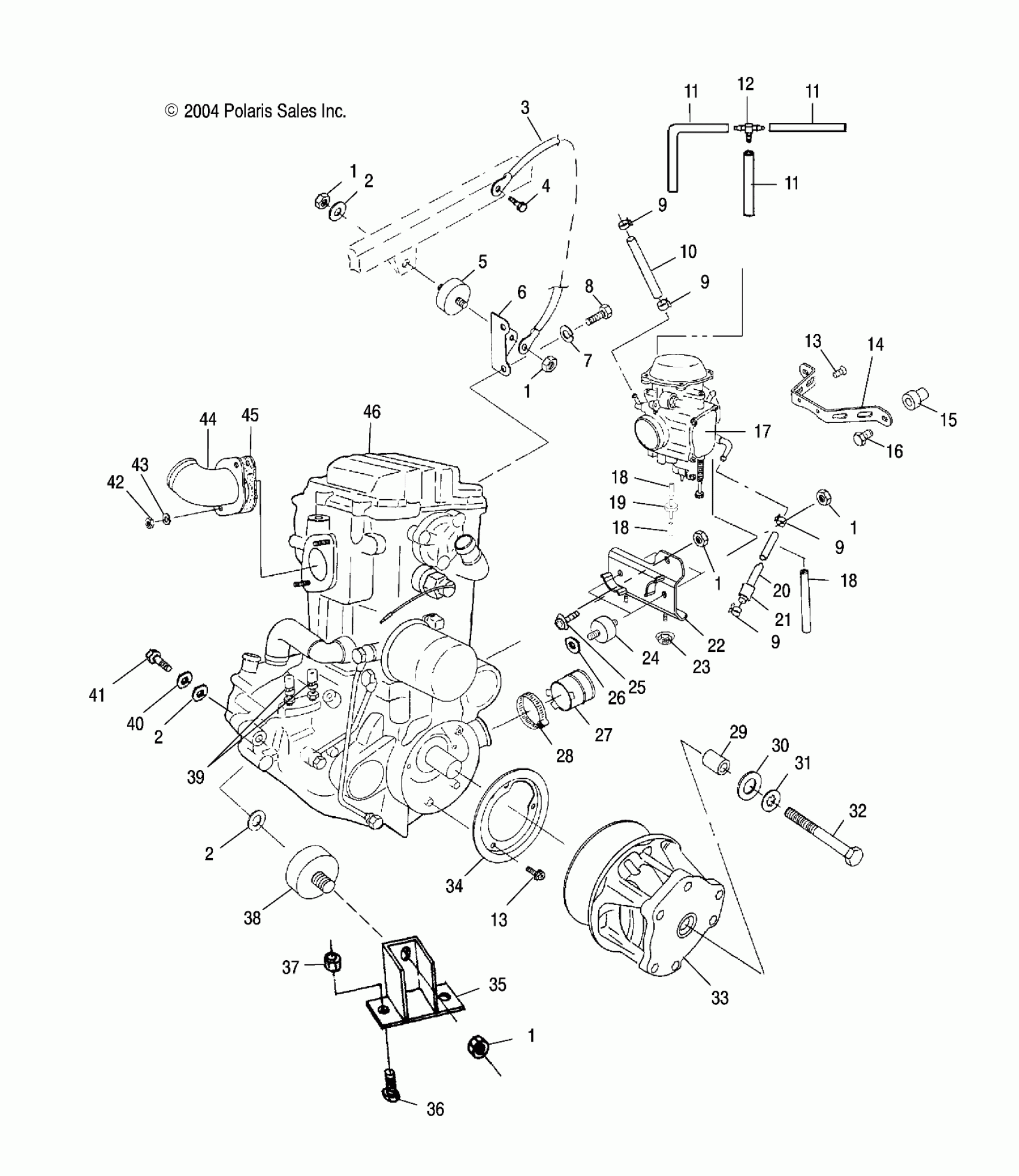

Polaris SPORTSMAN 6X6 - A05CL50AA ENGINE MOUNTING - A05CL50AA (4995019501A09) Diagram

#

Description
Price

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

1

NUT

7547108

$4.79

2

Washer

7555801

$3.99

2

Washer

7555801

$3.99

2

Washer

7555801

$3.99

3

Cable, Ground/Engine

4010132

Unavailable

4

Bolt

7512232

$1.49

5

Mount, Rubber, Top

3110044

Unavailable

6

BRACKET, MOUNT, ENGINE, TOP

5242674

Unavailable

7

WASHER, SPRING LOCK

7552901

$1.49

8

BOLT

7512315

$4.79

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

9

HOSE CLAMP, RED

7080003

$1.49

10

Line, Fuel

8450040-600

Unavailable

11

Line, Fuel

8450003-1525

Unavailable

11

Line, Fuel

8450003-1525

Unavailable

11

Line, Fuel

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

Screw and Washer

3084205

$3.99

13

Screw and Washer

3084205

$3.99

14

Bracket, Carburetor Mount

5246553

Unavailable

15

Nut, Well

7541923

$5.59

16

Bolt

7512247

$2.39

17

ASM., CARBURETOR [SEE CARBURETOR PG. D8, REF. 31]

-------

Unavailable

18

LINE, FUEL

8360009-600

Unavailable

18

LINE, FUEL

8360009-600

Unavailable

18

LINE, FUEL

8360009-600

Unavailable

19

VALVE, CHECK

7051011

Unavailable

20

Hose, Fuel

8450103

Unavailable

21

Sheath, Reflect Sleeve

8450105-65

Unavailable

22

Mount, Rear Engine, Black

1012883-067

$19.83

23

Nut, Flange, Lock

7547089

$4.79

24

Mount, Rubber, Front

3110046

Unavailable

25

Screw

7517289

$4.79

26

WASHER, FLAT

7555815

$3.99

27

BOOT, CLUTCH INTAKE

5412487

Unavailable

28

Clamp, Narrow Band

7080511

$4.79

29

BUSHING-.437 X.770 X.50

5430261

$7.19

30

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

31

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

32

BOLT

7512566

$30.79

33

ASM., DRIVE CLUTCH [SEE DRIVE CLUTCH PG. C3 FOR DETAILS]

-------

Unavailable

34

BRACKET, CLUTCH, SEAL [SEE CLUTCH COVER PG. C6, REF. 18]

-------

Unavailable

35

Mount, Engine, Front, Black

1040688-067

$14.68

36

SCREW

7515398

$2.39

37

NUT-5/16-18 NYLOK-Y

7542324

$1.49

38

Mount, Motor

3110067

Unavailable

39

CLAMP-HOSE,.875-SS

7080474

$8.40

40

Washer, Spring Lock

7552603

$1.49

41

SCREW

7515417

$4.79

42

NUT [SEE CYLINDER PG. D6, REF. 23]

-------

Unavailable

43

WASHER, LOCK [SEE CYLINDER PG. D6, REF. 22]

-------

Unavailable

44

Manifold, Black

1261171-489

$189.99

45

GASKET, EXHAUST [SEE CYLINDER PG. D6, REF. 20]

-------

Unavailable

46

Engine, Short Block [If built after 8/09/04] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorizati

3089513

$5,249.99

46

Engine, Short Block [If built before 8/09/04] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorizat

3089538

Unavailable
