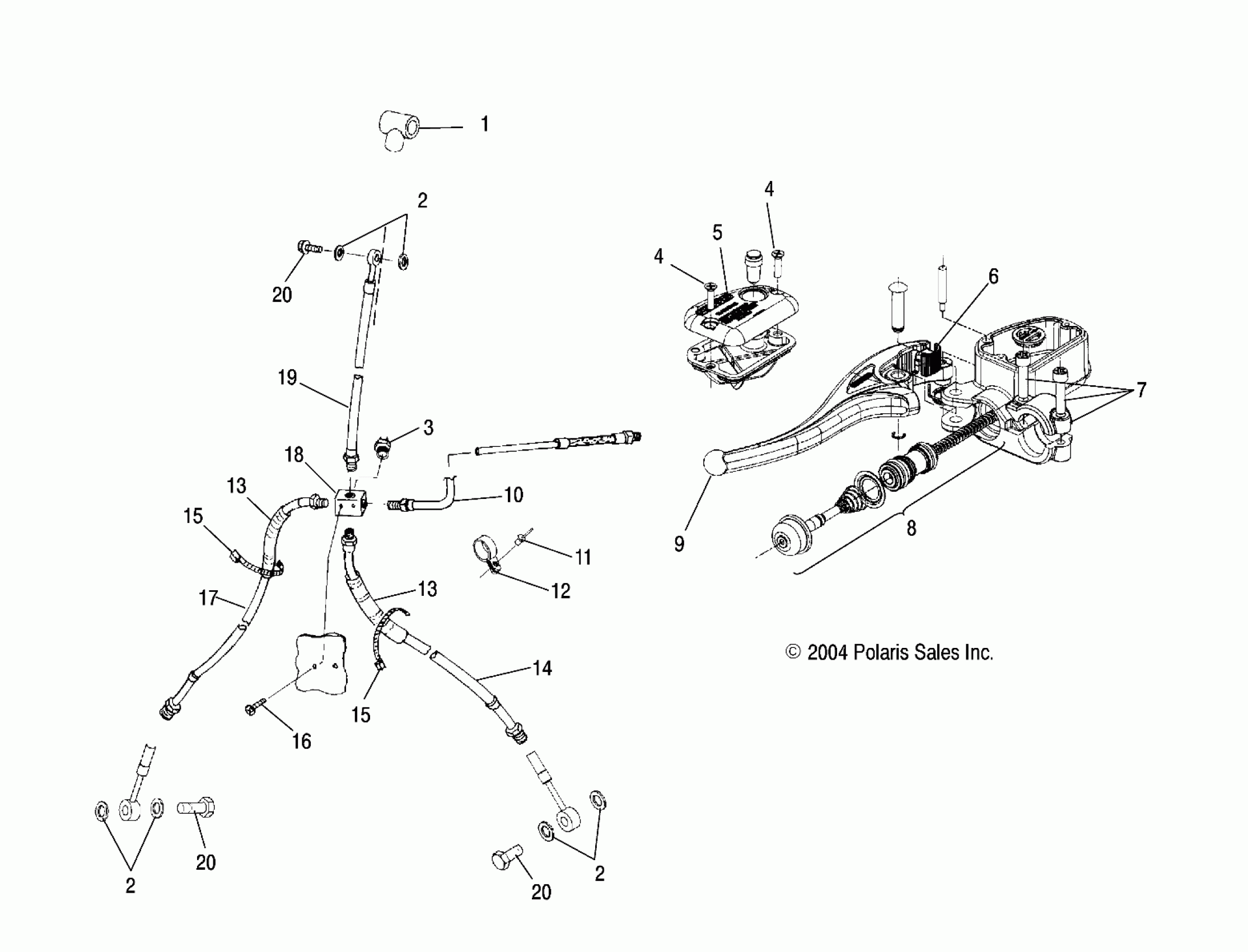

Polaris SPORTSMAN 6X6 - A05CL50AA CONTROLS - MASTER CYLINDER/BRAKE LINE - A05CL50AA (4995019501B08) Diagram

#

Description
Price

-

ASM., MASTER CYLINDER

2010238

$246.89

1

Boot, Brake Line, Rubber

5411297

$2.06

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

3

SWITCH

4110164

$204.24

4

SCREW

7517899

$1.19

4

SCREW

7517899

$1.19

5

KIT, MASTER CYLINDER CAP [INCL. CAP, SIGHT, GASKET, DOES NOT INCLUDE SCREWS]

2202725

$52.60

6

KIT, MASTER CYLINDER PARK BRAKE LEVER [INCL. LEVER, SPRING]

2201836

$44.51

7

KIT, MASTER CYLINDER CLAMP [INCL. CLAMP, SCREWS]

2201833

$47.62

8

KIT, PISTON [INCL. PISTON, SEALS, BOOT, SPRING]

2202410

$111.10

9

KIT, MASTER CYLINDER LEVER [INCL. PIN, LEVER, CLIP]

2201835

$60.70

10

Line, Brake, JB to Rear

1910480

Unavailable

11

Rivet

7621462

$1.19

12

Clamp, Nylon

7080539

$4.76

13

Conduit

8360031-34

Unavailable

13

Conduit

8360031-34

Unavailable

14

Line, Brake, Front, LH [w/Fittings][If built before 4/1/04]

1910474

$89.03

14

Line, Brake, Front, LH [w/Fittings][If built after 4/1/04]

1910838

$76.89

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

SCREW

7512024

$4.76

17

Line, Brake, Front, RH [If built before 4/1/04

1910475

$89.03

17

Line, Brake, Front, RH [If built after 4/1/04]

1910839

$76.89

18

FITTING, CROSS

7052292

$39.68

19

Line, Brake, Pod

1910470

$89.03

20

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

20

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94

20

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.94
