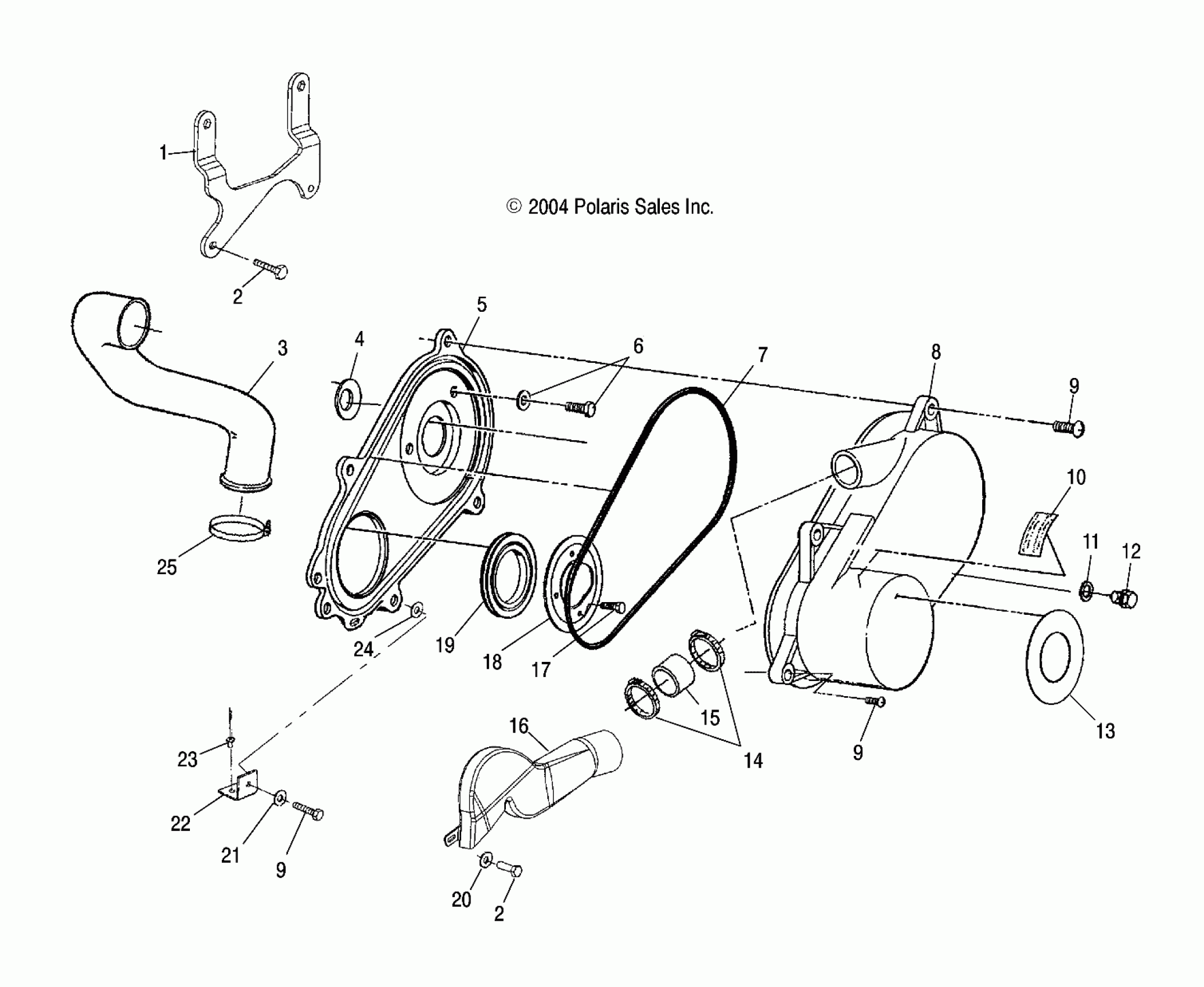

Polaris SPORTSMAN 6X6 - A05CL50AA CLUTCH COVER - A05CL50AA (4995019501C06) Diagram

#

Description
Price

1

Bracket, Clutch Cover

5247524-067

Unavailable

2

Bolt

7512232

$1.49

2

Bolt

7512232

$1.49

3

Duct, Clutch Air, Inlet

5433427

Unavailable

4

Seal, Cover

5411553

$23.99

5

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$125.46

6

Asm., Bolt and Washer

7510000

$3.99

7

Seal, Clutch Cover, Outer

5521578

Unavailable

8

Asm., Clutch Cover, Outer

2633262

$169.87

9

SCREW

7512094

$1.59

9

SCREW

7512094

$1.59

9

SCREW

7512094

$1.59

10

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

11

O RING-.364X.504X.07

5410542

Unavailable

12

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

13

DECAL, AUTOMATIC TRANSMISSION

7172746

Unavailable

14

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

15

Boot, Duct (If built after 11/15/04)

5412636

$23.99

15

Boot, Duct (If built before 11/15/04)

5411489

Unavailable

16

Duct, Air Outlet, Clutch

5433657

$36.31

17

SCREW AND WASHER [SEE CRANKCASE PG. D3, REF. 6]

-------

Unavailable

18

BRACKET, CLUTCH, SEAL

5242046

$35.99

19

Seal, Cover, Case

5410575

Unavailable

20

Washer, Flat

7558301

$1.49

21

Washer

7555935

$2.39

22

Bracket, Clutch Cover, Front

5247949

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

Spacer

7556091

$3.99

25

Clamp, Narrow Band

7080511

$4.79
