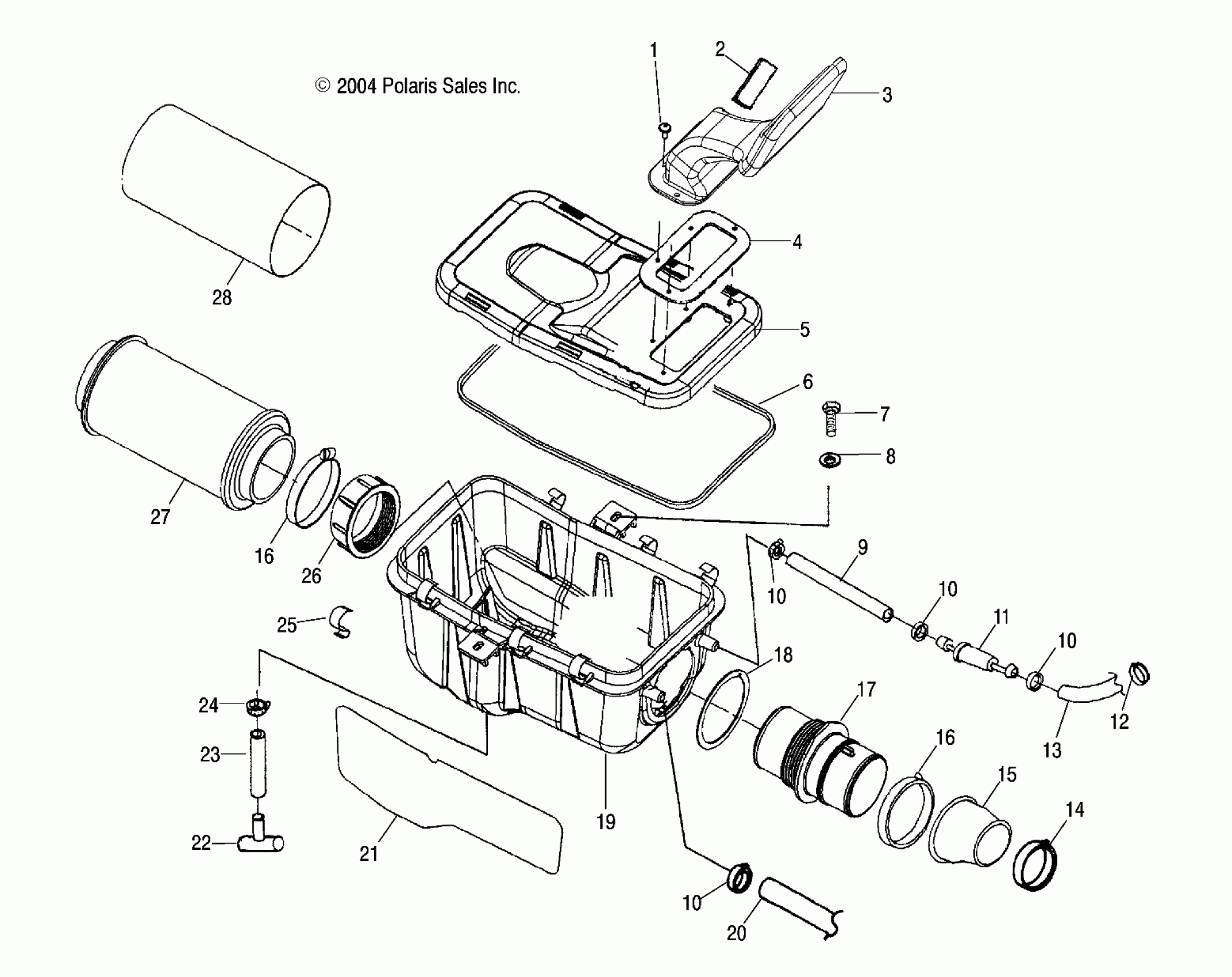

Polaris SPORTSMAN 6X6 - A05CL50AA AIR BOX - A05CL50AA (4995019501C05) Diagram

#

Description
Price

1

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

2

PAD, RACK MOUNT

5810455

$3.19

3

Duct, Inlet

5433395

Unavailable

4

Gasket, Intake

5411422

$6.63

5

Cover, Air Box

5432868

$51.99

6

Seal, Cover

5811482

Unavailable

7

Screw

7515179

$2.39

8

Washer, Flat

7558301

$1.49

9

Line, Breather

8450073-600

Unavailable

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

10

Clamp, Hose

7080699

$1.59

11

Filter, Breather

2530029

$6.39

12

Clamp, Hose, Spring

7080694

$6.53

13

Hose, Breather

5411921

$174.99

14

Clamp, Band

7080511

$4.79

15

Boot, Carburetor

5411540

Unavailable

16

Clamp, Band

7080413

$3.19

16

Clamp, Band

7080413

$3.19

17

Duct, Carburetor, Inlet

5432473

Unavailable

18

Gasket, Carburetor Inlet Duct

5830128

Unavailable

19

Box, Air

5433387

$127.99

20

LINE, BREATHER, OIL TANK [SEE OIL TANK PG. A12, REF. 3]

-------

Unavailable

21

Foil

5811650

Unavailable

22

Plug, Trap

5432377

Unavailable

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99

25

CLIP-AIR BOX

5242044

$9.59

26

Collar, Inlet, Carburetor

5432601

$12.79

27

Filter, Air

7080595

Unavailable

28

Filter, Sleeve, Precleaner

5811633

$11.99
