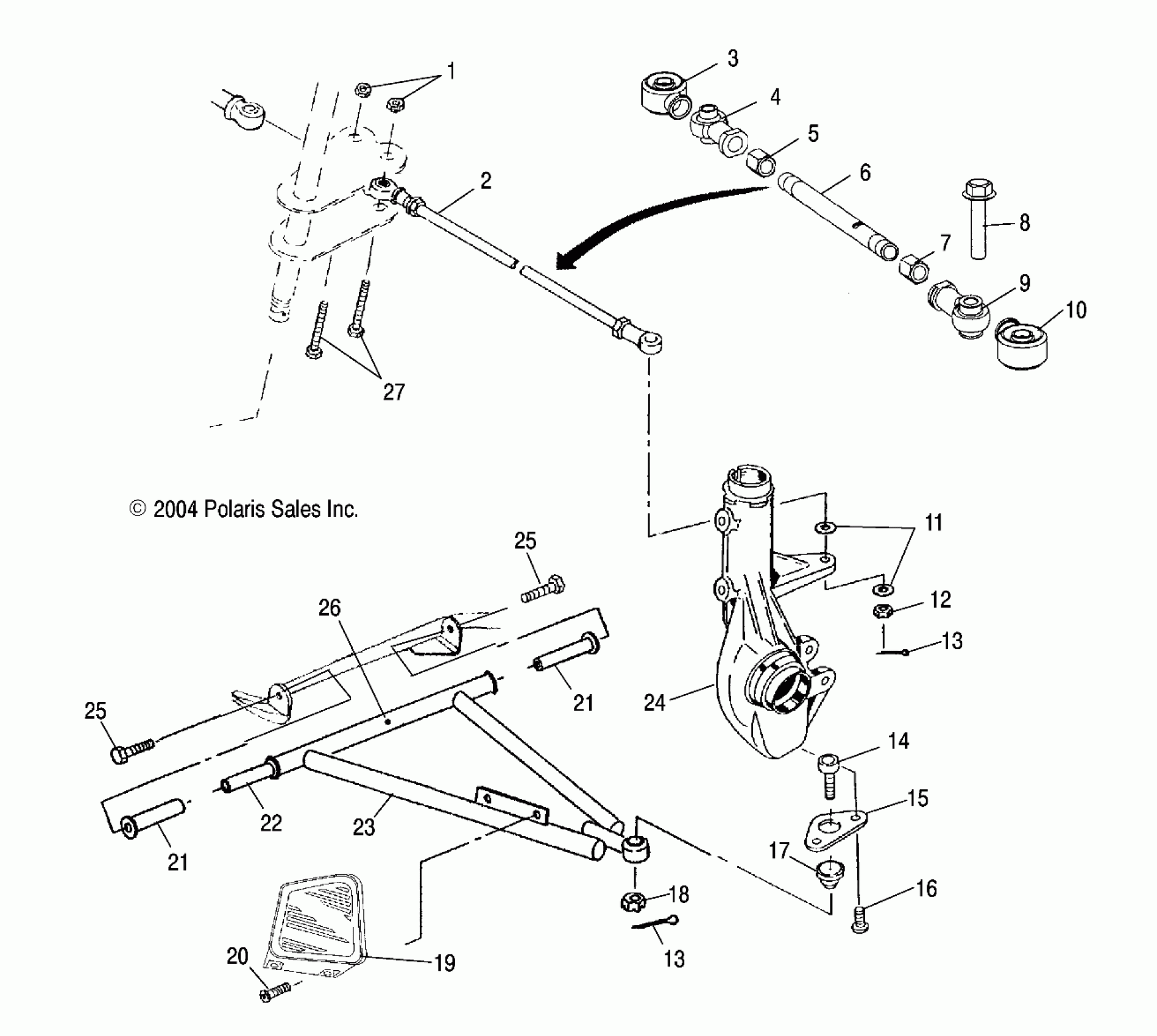

Polaris SPORTSMAN 6X6 - A05CL50AA A-ARM/STRUT MOUNTING - A05CL50AA (4995019501B05) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

2

Asm., Tie Rod [Incl. 3-9]

1820805

Unavailable

3

Boot, Seal, Rod End

5411291

Unavailable

4

Rod End, RH

7061034

$54.04

5

Nut, Jam

7542711

$2.39

6

Tie Rod

5020926

$39.99

7

Nut, Jam, LH

7547028

$2.39

8

Bolt

7517909

$5.59

9

Rod End, LH

7061054

Unavailable

10

Boot, Seal, Rod End

5411920

Unavailable

11

Washer

7556099

$1.59

12

Nut

7547177

$2.39

13

Pin, Cotter

7661203

$1.49

13

Pin, Cotter

7661203

$1.49

14

Joint, Ball

7080673

$76.89

15

BRACKET-BALL JOINT

5211121

$31.99

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

17

Boot, Rubber

5410548

Unavailable

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

Shield, CV Joint, Black, RH

5431149-070

$24.27

19

Shield, CV Joint, Black, LH

5431150-070

Unavailable

20

Screw

7512084

$1.49

21

Bushing, A-Arm, Long, Black

5434551

$5.01

21

Bushing, A-Arm, Long, Black

5434551

$5.01

22

Shaft, A-Arm

5133806

$30.79

23

Kit, A-Frame, LH [Incl. 13,21,22,25]

2202282

$135.99

23

Kit, A-Frame, RH [Incl. 13,21,22,25]

2202283

$169.99

24

ASM., HUBSTRUT [SEE FRONT STRUT PG. B2, REF. 16]

-------

Unavailable

25

Bolt

7518364

$1.59

25

Bolt

7518364

$1.59

26

Fitting, Lub

7080433

$1.49

27

Screw

7515415

$1.49
