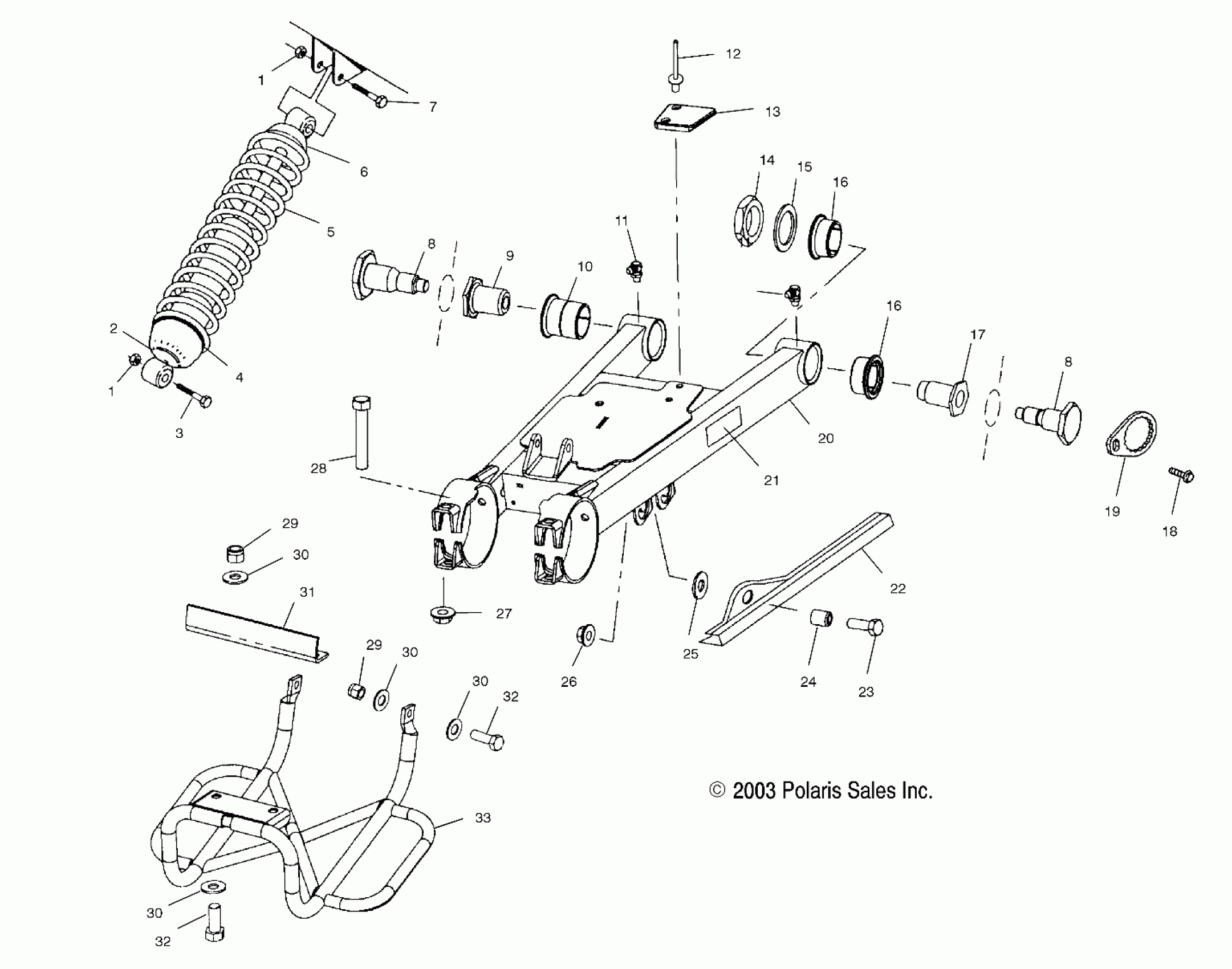

Polaris SPORTSMAN 6X6 - A04CL50AA SWING ARM/SHOCK MOUNTING - A04CL50AA (4986288628B13) Diagram

#

Description
Price

1

Nut, Nylok

7542439

$1.49

1

Nut, Nylok

7542439

$1.49

2

Shock

7041962

$230.70

3

Screw

7515438

$4.79

4

Washer

7556142

Unavailable

5

Spring, Compression

7041987-067

Unavailable

6

Retainer, Spring

5241147

$10.03

7

Screw

7515415

$1.49

8

Bolt, Swing Arm Pivot

5134321

$39.99

8

Bolt, Swing Arm Pivot

5134321

$39.99

9

Bushing, Pivot, LH

5133166

$31.99

10

Bushing, Swing Arm, LH

5434545

$8.79

11

FITTING, ZERK

7080510

$5.59

12

Rivet

7661046

$3.99

13

Guide, Chain Pad

5432727

$31.99

14

Nut

7547082

$31.99

15

Washer, Flat

7556035

Unavailable

16

Bushing, Swing Arm, RH

5434546

$8.79

16

Bushing, Swing Arm, RH

5434546

$8.79

17

Bushing, Pivot, RH

5133167

$35.99

18

SCREW

7515399

$1.49

19

Bracket, Bolt Lock

5247488

Unavailable

20

Asm., Swing Arm [Incl. 10,11,16]

1541583

$357.14

21

Decal, "Chain Free Play"

7078572

Unavailable

22

Guard, Chain

5432854

$35.99

23

SCREW

7515304

$5.59

24

Bushing

5332828

$9.59

25

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

26

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

27

Nut, Flange

7542522

$5.59

28

Bolt

7512576

$7.99

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

30

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

30

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

30

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

31

Mount, Bracket, Rock Guard

5222221-067

$8.98

32

Screw

7512325

$2.39

32

Screw

7512325

$2.39

33

Guard, Swing Arm

1013328-067

$589.99
