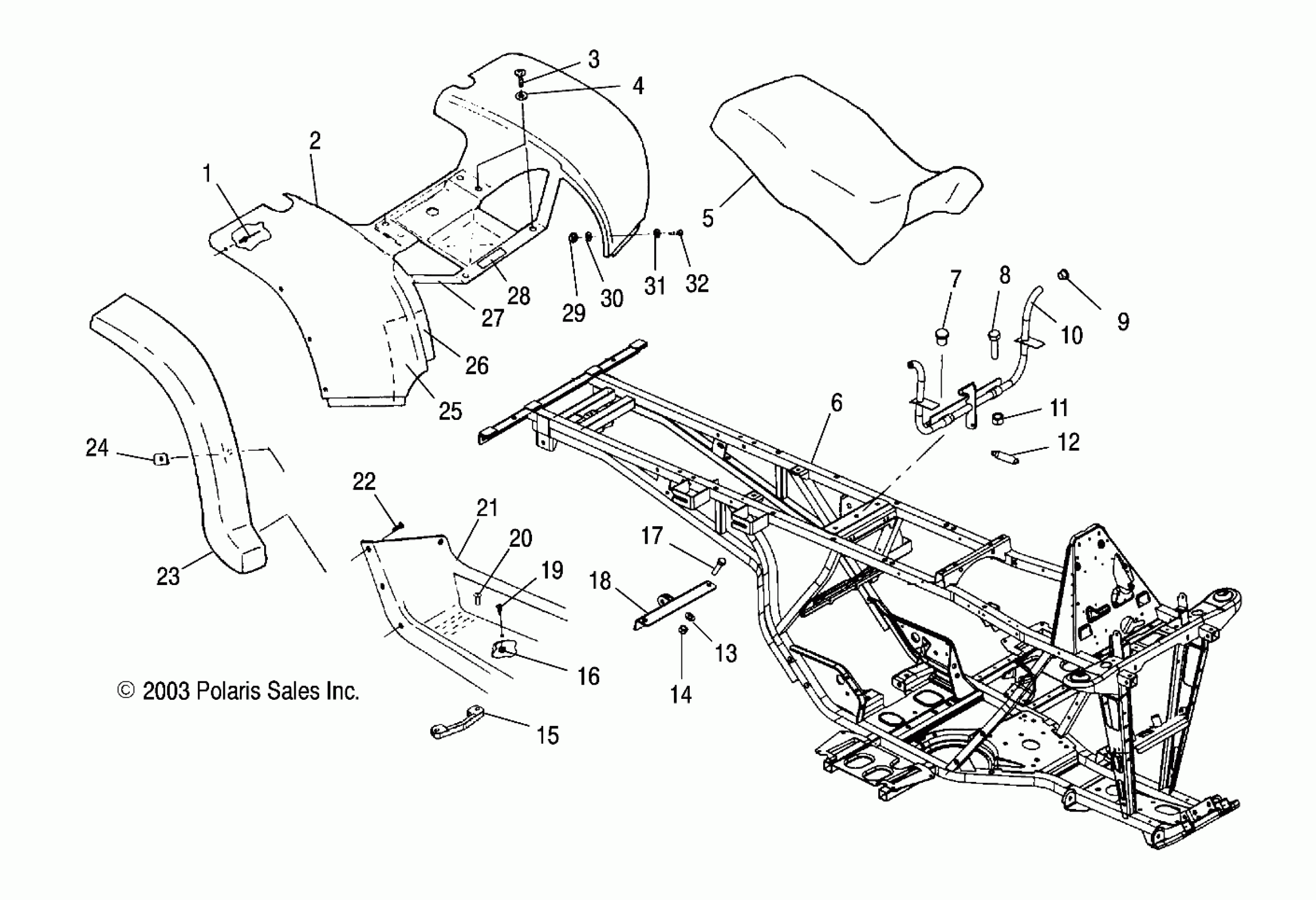

Polaris SPORTSMAN 6X6 - A04CL50AA REAR CAB and SEAT - A04CL50AA (4986288628A04) Diagram

#

Description
Price

1

Rivet

7661645

Unavailable

2

Cab, Rear, Green

5433428-400

$339.98

3

SCREW

7512242

$2.38

4

Washer, Flat

7555859

$1.19

5

Asm., Seat, Black

2682959-070

Unavailable

5

Covering, Seat, Black

2682960-070

Unavailable

6

Frame, Main

1013967-067

$873.00

7

Bumper, Rubber

5410414

$3.17

8

BOLT

7512240

$3.97

9

PLUG

5432798

$5.65

10

Lever, Box

1013307-067

$212.70

11

Nut

7542153

$1.59

12

Spring

7041879

$5.71

13

Washer, Flat

7555734

$0.79

14

NUT-5/16-18 NYLOK-Y

7542324

$0.79

15

Spacer, Footwell

5432280

$8.73

16

Nut, Nylok

7542122

$1.19

17

Screw

7512392

$4.76

18

Mount, Strut, Rear

1040293-067

$22.06

19

Screw

7512279

$0.79

20

SCREW

7517377

$4.76

21

Footwell, Black, LH

5432221-070

$230.70

21

Footwell, Black, RH

5434417-070

$230.70

22

SCREW

7512232

$1.19

23

Guard, Mud, Rear, LH

5433429

Unavailable

23

Guard, Mud, Rear, RH

5433430

Unavailable

24

NUT, U-TYPE SPEED

7670057

$1.19

25

Foil, Foam, Rear Fender

5811111

Unavailable

26

Foil, Rear Cab, Front

5811106

Unavailable

27

Foil, Foam

5811087

Unavailable

28

Decal, Carb/Filter Information

7079902

Unavailable

29

Nut, Nylok

7541925

$0.79

30

WASHER

7555792

$4.76

31

WASHER

7556034

$2.38

32

Screw

7512085

Unavailable
