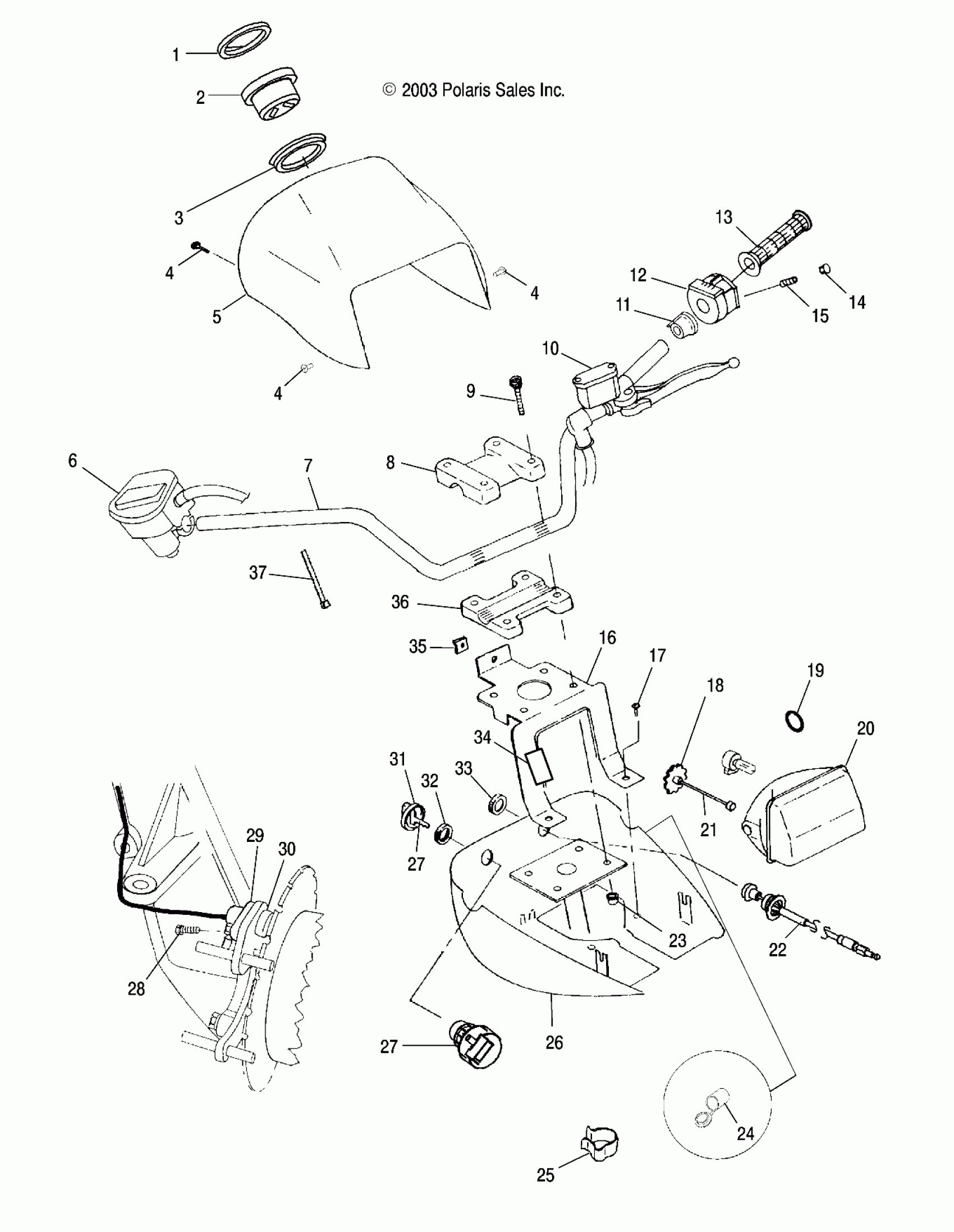

Polaris SPORTSMAN 6X6 - A04CL50AA HANDLEBAR and HEADLIGHT POD - A04CL50AA (4986288628D01) Diagram

#

Description
Price

1

Bezel

5434380

Unavailable

2

Cluster, Instrument

3280425

Unavailable

3

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

5

Pod, Headlight, Upper, Green

5434284-400

$133.56

6

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 5]

-------

Unavailable

7

Tube, Handlebar

5244581-067

$83.59

8

Block, Handlebar, Pegged (If built after 9/29/03)

5631972

$27.99

8

Block, Handlebar, Pegged (If built before 9/29/03)

5631146

$10.71

9

Screw (If built before 1/05/04)

7517238

$4.79

9

Screw (If built after 1/05/04)

7515189

Unavailable

10

ASM., MASTER CYLINDER [SEE CONTROLS - RH, MASTER CYLINDER/BRAKE LINE PG. B9 FOR DETAILS]

-------

Unavailable

11

Spacer, Switch, LH

5433903

Unavailable

12

Switch, Handlebar, Off/Lo/Hi

4010592

$38.60

13

Grip, Handlebar

5433834-070

$24.27

14

Plug

5432952

$5.59

15

SCREW, SET

7517625

$4.79

16

Bracket, Pod Mounting

5244969-067

$44.99

17

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

18

KNOB, ADJUSTING

4032079

$23.99

19

O-RING

5410163

$1.60

20

KIT-HARNESS,HEADLIGHT

2204143

$71.99

20

BULB-HEADLIGHT,50 WATT

4010253

$34.99

20

Asm., Head Lamp

2410268

$109.27

21

ROD, ADJUSTING

4011378

$39.99

22

Cable, Choke (If built before 8/11/03)

7081008

$79.99

22

Cable, Choke (If built after 8/11/03)

7081176

$77.21

23

Nut, Nylok

7542122

$1.49

24

Receptacle, Pod Mount, 12V

4010638

$24.27

25

Clip, Cable Retaining

7080631

$6.29

26

Pod, Headlight, Lower

5433762-070

$114.99

27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

27

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

27

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

27

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

27

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

27

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

28

Screw

7517658

$5.59

29

Sensor

4010298

$111.99

30

Cap, Sensor

5132382

$23.99

31

KEY SWITCH KEY COVER

5433534

$12.35

32

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

33

Nut, Choke Slide

7080922

$3.19

34

Pad, Adhesive

5812563

$1.49

35

CLIP

7670127

$9.59

36

Block, Handlebar (If built after 9/29/03)

5631973

$27.99

36

Block, Handlebar (If built before 9/29/03)

5631147

Unavailable

37

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
