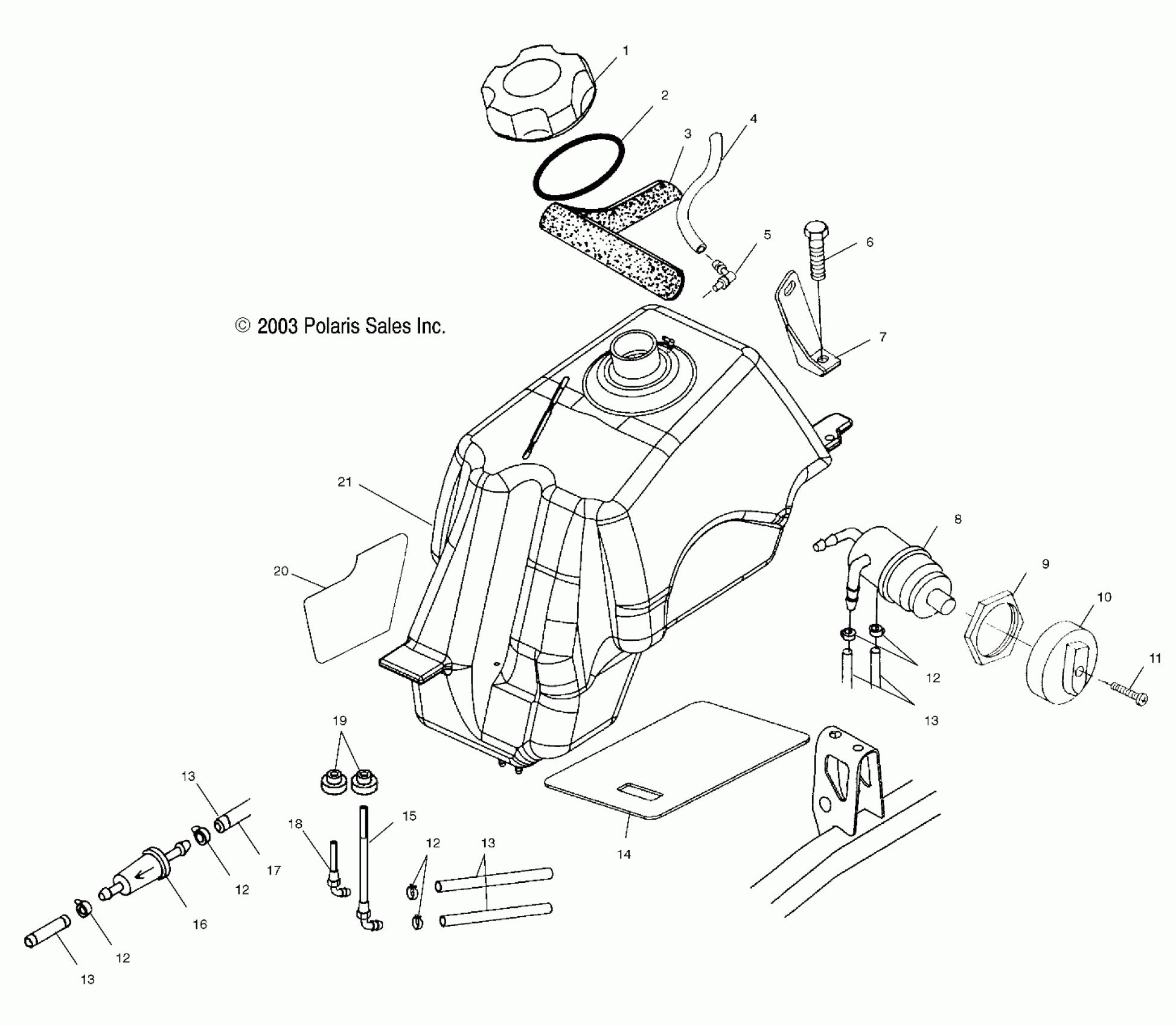

Polaris SPORTSMAN 6X6 - A04CL50AA FUEL TANK - A04CL50AA (4986288628A11) Diagram

#

Description
Price

1

Cap, Gas Tank

5435324

Unavailable

2

Gasket, Fuel Cap

5812123

$5.65

3

Seal, Foam

5811310

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7517685

$1.59

7

Bracket, Mounting, Rear, LH

5222154

Unavailable

7

Bracket, Mounting, Rear, RH

5222155

Unavailable

8

Valve, 3-Way

7052161

$39.99

9

Nut, Fuel Valve

5432733

Unavailable

10

Knob, Fuel Valve

5432559

$10.39

11

Screw

7517505

$1.59

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

12

HOSE CLAMP, RED

7080003

$1.49

13

Hose, Fuel

8450103

Unavailable

13

Hose, Fuel

8450103

Unavailable

13

Hose, Fuel

8450103

Unavailable

13

Hose, Fuel

8450103

Unavailable

14

Foil

5812005

$19.30

15

Fitting, Outlet, Main, 90 Degree

7052349

Unavailable

16

Filter, Fuel

2530009

$5.65

17

Sheath, Reflect Sleeve

8450105-15

Unavailable

18

Fitting, 90 Degree

7052289

Unavailable

19

Grommet

7052362

$9.99

20

Foil

5812004

Unavailable

21

Asm., Fuel Tank [Incl. 15,18]

2520361

Unavailable
