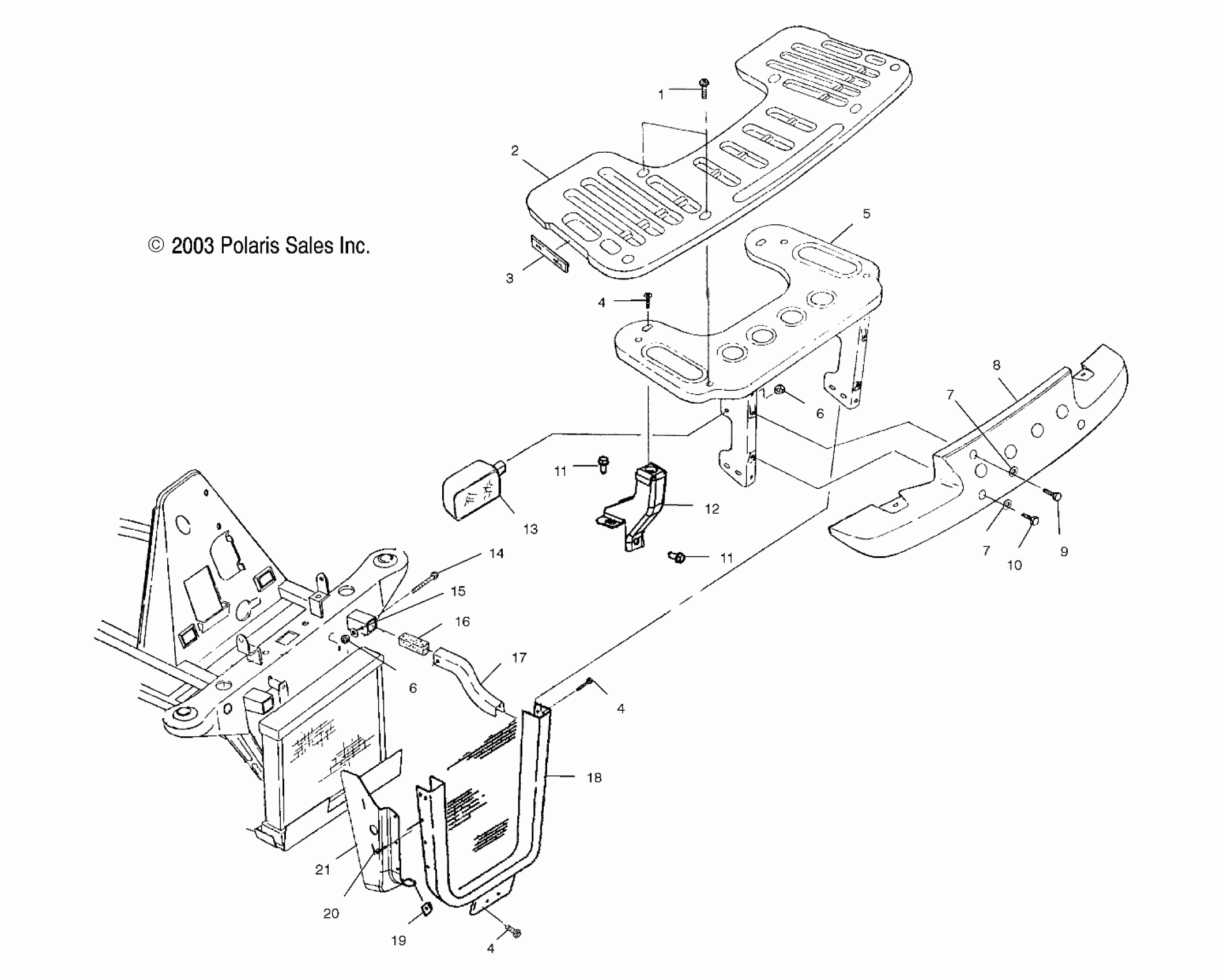

Polaris SPORTSMAN 6X6 - A04CL50AA FRONT RACK and BUMPER MOUNTING - A04CL50AA (4986288628A06) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Asm., Front Rack [Incl. Ref. 3 and Warning Decal]

2632340-070

Unavailable

3

Decal, Reflector, Amber

7079926

Unavailable

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

4

SCREW

7515399

$1.19

5

Support, Front Rack

1014023-067

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

6

NUT-5/16-18 NYLOK-Y

7542324

$0.79

7

Washer (If built before 10/01/03)

7555954

$4.76

7

Washer (If built before 10/01/03)

7555954

$4.76

8

Bumper

5432155-070

$142.86

9

Screw (If built before 10/01/03)

7515391

$4.84

9

Screw (If built after 10/01/03)

7517977

Unavailable

10

Screw (If built before 10/01/03)

7515390

Unavailable

11

SCREW

7512232

$1.19

11

SCREW

7512232

$1.19

12

Support, Front Rack, LH

1013744-067

Unavailable

12

Support, Front Rack, RH

1013746-067

$94.99

13

Bulb, Replacement, 27W

4030059

Unavailable

13

Headlight, LH

2431014

Unavailable

13

Headlight, RH

2431015

Unavailable

14

Bolt

7512329

$3.97

15

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

16

PLUG, FRAME

5810467

Unavailable

17

Extension, Frame, LH

5244729-067

$90.74

17

Extension, Frame, RH

5244730-067

$79.74

18

Guard, Brush

1013772-067

Unavailable

19

Nut, U-Type

7670094

$5.56

20

Screw

7512097

$3.97

21

Shield, Side, Radiator, LH

5433923

$32.37

21

Shield, Side, Radiator, RH

5433924

$32.37
