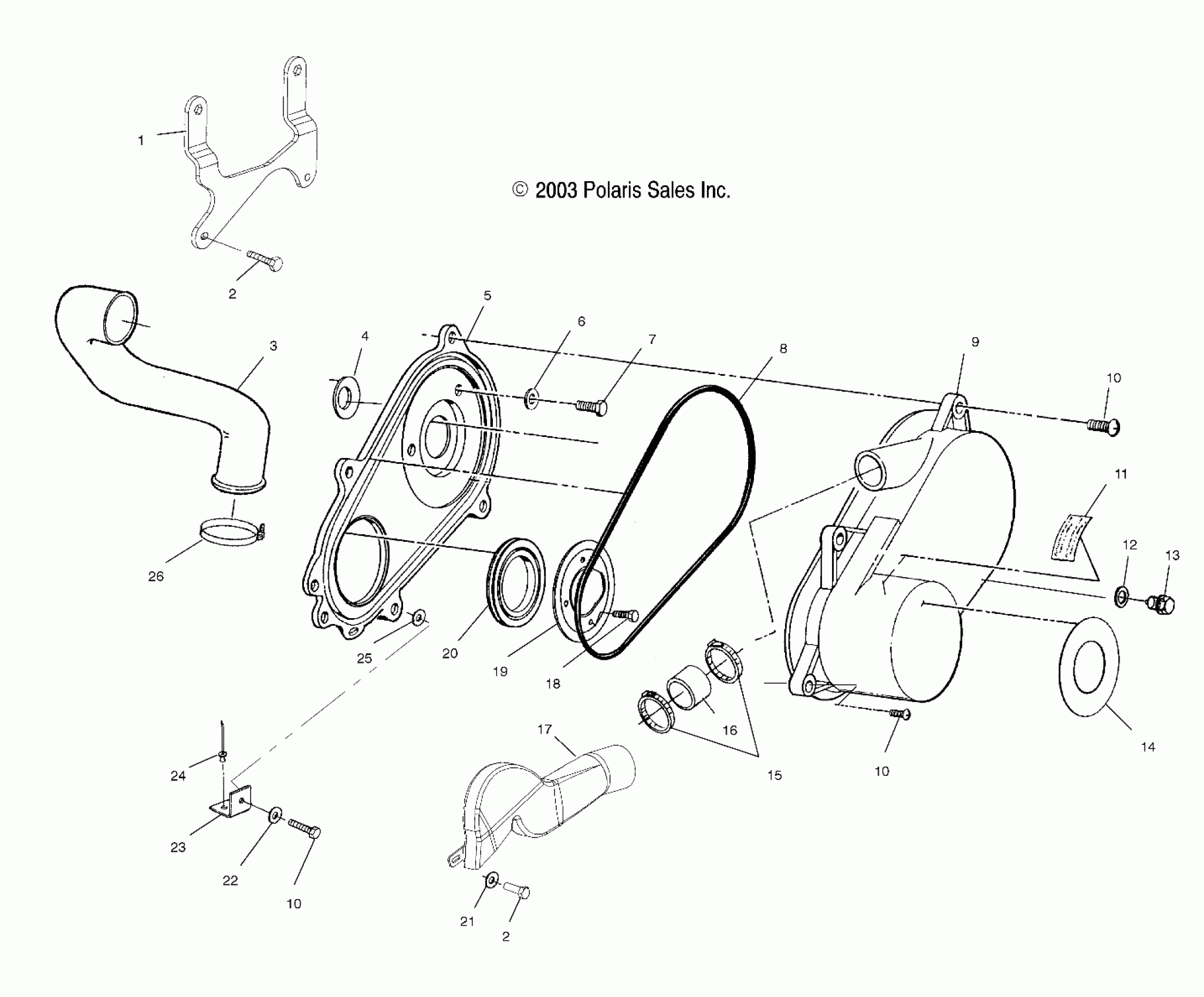

Polaris SPORTSMAN 6X6 - A04CL50AA CLUTCH COVER - A04CL50AA (4986288628C06) Diagram

#

Description
Price

1

Bracket, Clutch Cover

5247524-067

Unavailable

2

SCREW

7512232

$1.49

2

SCREW

7512232

$1.49

3

Duct, Clutch Air, Inlet

5433427

Unavailable

4

Seal, Cover

5411553

$23.99

5

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$125.46

6

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

7

SCR-TFHL-1/4-20X0.88 G5 Z SEMS (If built before 8/11/03)

7517599

$5.59

7

Bolt/Washer (If built after 8/11/03)

7510000

$3.99

8

Seal, Clutch Cover, Outer

5521578

Unavailable

9

Asm., Clutch Cover, Outer

2633262

$169.87

10

SCREW

7512094

$1.59

10

SCREW

7512094

$1.59

10

SCREW

7512094

$1.59

11

Decal, Warning, Clutch Cover

7078689

Unavailable

12

O RING-.364X.504X.07

5410542

Unavailable

13

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

14

Decal, Automatic Transmission

7074782

Unavailable

15

CLAMP-BAND,NARROW 60-80MM

7080707

$3.19

16

Boot, Duct

5411489

Unavailable

17

Duct, Air Outlet, Clutch

5433657

$36.31

18

SCREW AND WASHER [SEE CRANKCASE PG. D3, REF. 6]

-------

Unavailable

19

Bracket, Retainer, Seal

5242046

$35.99

20

Seal, Cover, Case

5410575

Unavailable

21

Washer, Flat

7558301

$1.49

22

Washer

7555935

$2.39

23

Bracket, Clutch Cover (If built before 1/01/04)

5242693-067

Unavailable

23

Bracket, Clutch Cover (If built after 1/01/04)

5247949

Unavailable

24

RIVET-3/16-.090-.290

7661637

$1.49

25

Spacer

7556091

$3.99

26

Clamp, Narrow Band

7080511

$4.79
