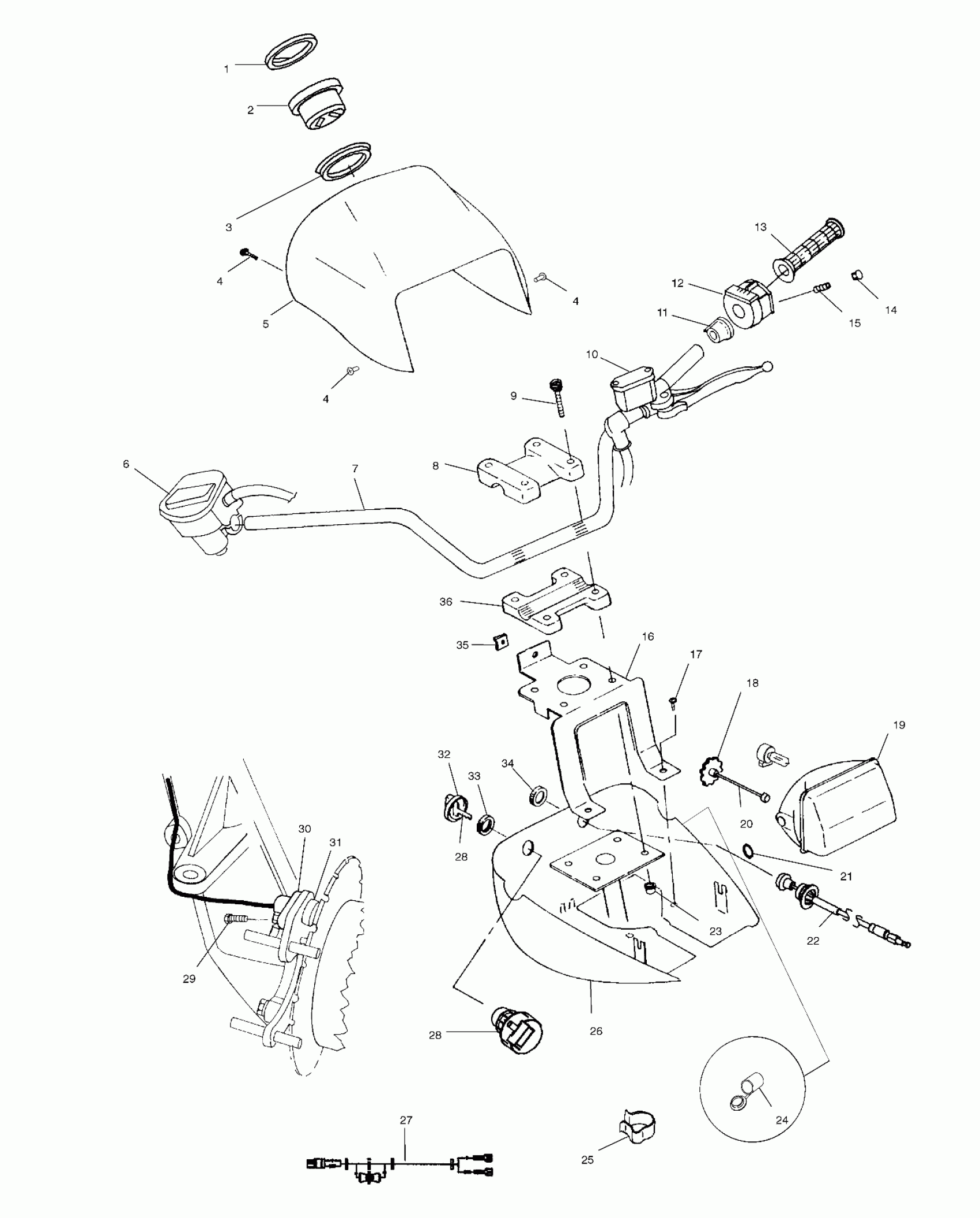

Polaris SPORTSMAN 6X6 - A03CL50AA HANDLEBAR and HEADLIGHT POD - A03CL50AA (4975687568D01) Diagram

#

Description
Price

1

Bezel

5434380

Unavailable

2

Cluster, Instrument

3280425

Unavailable

3

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

5

Pod, Headlight, Upper, Green

5434284-400

$133.56

6

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 5]

-------

Unavailable

7

Tube, Handlebar

5244581-067

$83.59

8

Block, Handlebar, Pegged

5631146

$10.71

9

SCREW

7517238

$4.79

10

ASM., MASTER CYLINDER [SEE CONTROLS - RH, MASTER CYLINDER/BRAKE LINE PG. B9 FOR DETAILS]

-------

Unavailable

11

Spacer, Switch

5433903

Unavailable

12

Switch, Handlebar

4010422

$123.54

13

Grip, Handlebar

5433834-070

$24.27

14

Plug

5432952

$5.59

15

SCREW, SET

7517625

$4.79

16

Bracket, Pod Mounting

5244969-067

$44.99

17

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

18

KNOB, ADJUSTING

4032079

$23.99

19

KIT-HARNESS,HEADLIGHT

2204143

$71.99

19

BULB-HEADLIGHT,50 WATT

4010253

$34.99

19

Asm., Head Lamp

2410268

$109.27

20

ROD, ADJUSTING

4011378

$39.99

21

O-RING

5410163

$1.60

22

Cable, Choke

7081008

$79.99

23

Nut, Nylok

7542122

$1.49

24

Receptacle, Pod Mount, 12V

4010638

$24.27

25

Clip, Cable Retaining

7080631

$6.29

26

Pod, Headlight, Lower

5433762-070

$114.99

27

Harness, Pod/Accessory

2461045

Unavailable

28

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

28

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

28

Switch, Ignition [Incl. Key]

4010390

Unavailable

28

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

28

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

28

Switch, Ignition [Incl. Key]

4010390

Unavailable

29

Screw

7517658

$5.59

30

Sensor

4010298

$111.99

31

Cap, Sensor

5132382

$23.99

32

KEY SWITCH KEY COVER

5433534

$12.35

33

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

34

Nut, Choke Slide

7080922

$3.19

35

CLIP

7670127

$9.59

36

Block, Handlebar

5631147

Unavailable
