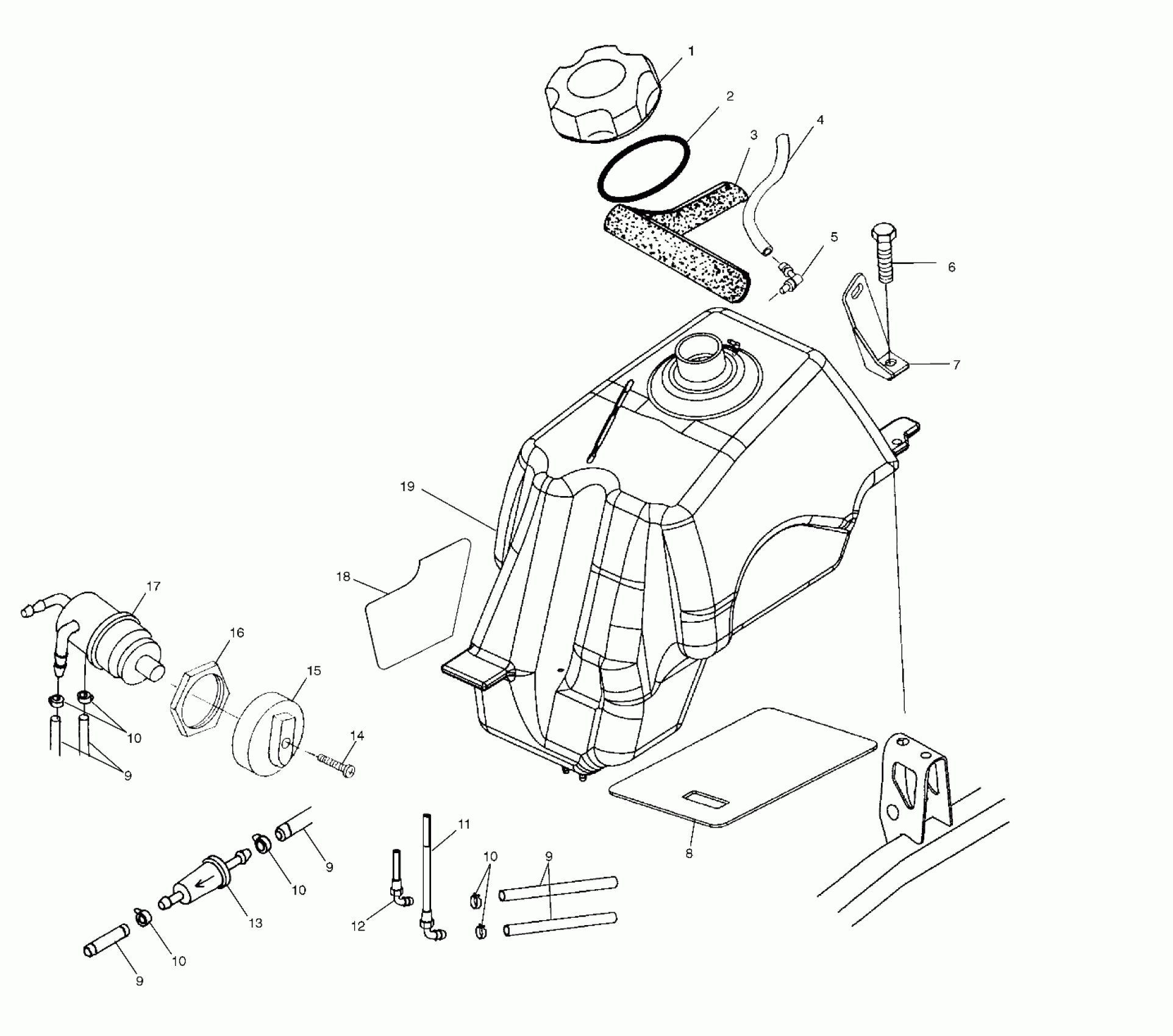

Polaris SPORTSMAN 6X6 - A03CL50AA FUEL TANK - A03CL50AA (4975687568A11) Diagram

#

Description
Price

1

Cap, Gas Tank

5433687

$20.22

2

Gasket, Fuel Cap

5812123

$5.65

3

Seal, Foam

5811310

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

Bolt

7517685

$1.59

7

Bracket, Mounting, Rear, LH

5222154

Unavailable

7

Bracket, Mounting, Rear, RH

5222155

Unavailable

8

Foil

5812005

$19.30

9

Line, Fuel

8450040-600

Unavailable

9

Line, Fuel

8450040-600

Unavailable

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

10

HOSE CLAMP, RED

7080003

$1.49

11

Fitting, Fuel Outlet, Main, 90 Degree

7052147

Unavailable

12

Fitting, Fuel Outlet, Reserve, 90 Degree

7052148

Unavailable

13

Filter, Fuel

2530009

$5.65

14

Screw

7517505

$1.59

15

Knob, Fuel Valve

5432559

$10.39

16

Nut, Fuel Valve

5432733

Unavailable

17

Valve, 3-Way

7052161

$39.99

18

Foil

5812004

Unavailable

19

Asm., Fuel Tank [Incl. 11,12]

2520166

Unavailable
