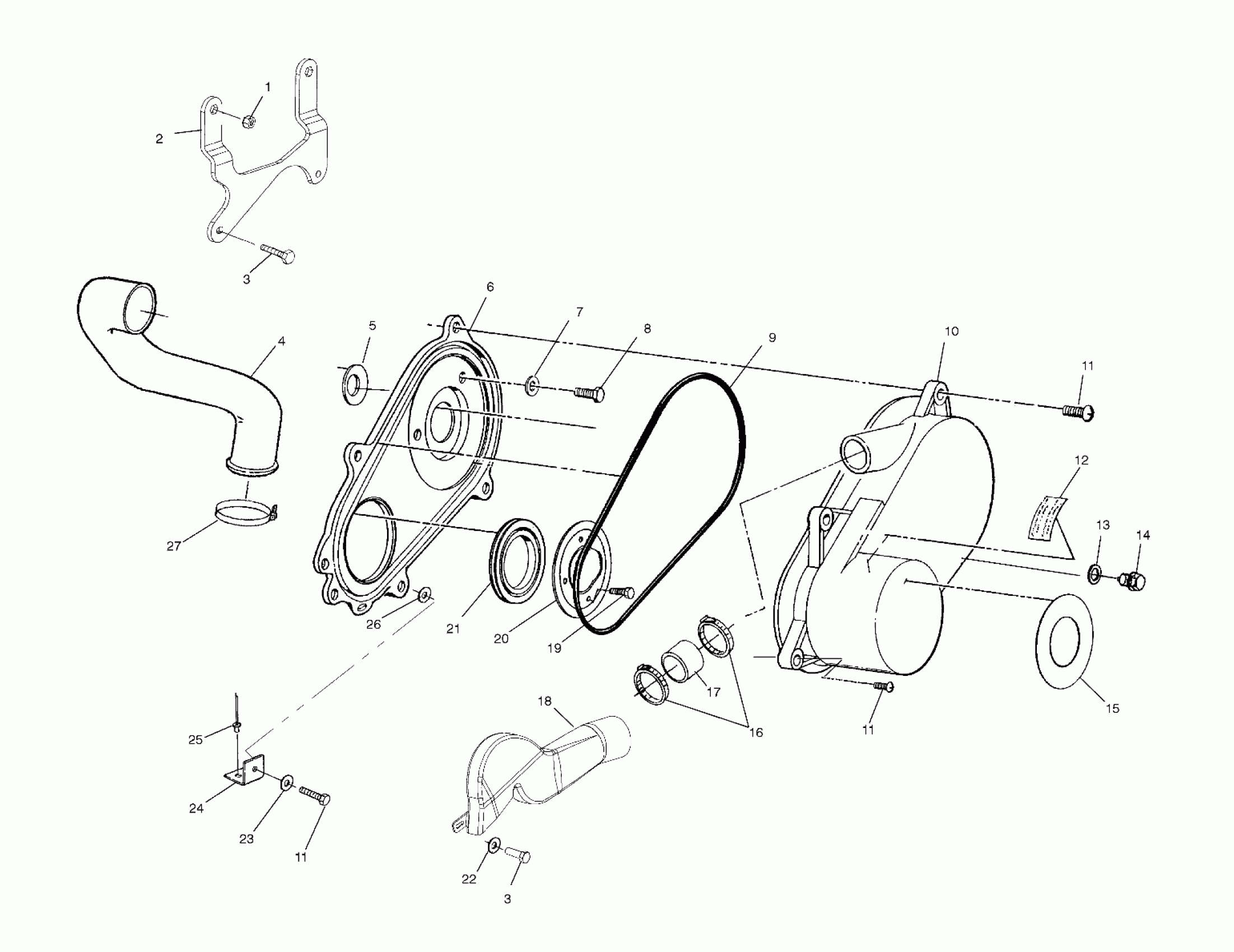

Polaris SPORTSMAN 6X6 - A03CL50AA CLUTCH COVER - A03CL50AA (4975687568C06) Diagram

#

Description
Price

1

Nutsert

7547067

$6.23

2

Bracket, Clutch Cover

5242208-067

Unavailable

3

SCREW

7512232

$1.49

3

SCREW

7512232

$1.49

4

Duct, Clutch Air, Inlet

5433427

Unavailable

5

Seal, Cover

5411553

$23.99

6

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$125.46

7

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

8

Screw

7512278

Unavailable

9

Seal, Clutch Cover, Outer

5521578

Unavailable

10

Asm., Clutch Cover, Outer

2633262

$169.87

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

12

Decal, Warning, Clutch Cover

7078689

Unavailable

13

O RING-.364X.504X.07

5410542

Unavailable

14

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

15

Decal, Automatic Transmission

7074782

Unavailable

16

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

17

Boot, Duct

5411489

Unavailable

18

Duct, Air Outlet, Clutch

5433657

$36.31

19

SCREW AND WASHER [SEE CRANKCASE PG. D3, REF. 6]

-------

Unavailable

20

Bracket, Retainer, Seal

5242046

$35.99

21

Seal, Cover, Case

5410575

Unavailable

22

Washer, Flat

7558301

$1.49

23

Washer

7555935

$2.39

24

Bracket, Clutch Cover

5242693-067

Unavailable

25

RIVET-3/16-.090-.290

7661637

$1.49

26

Spacer

7556091

$3.99

27

Clamp, Narrow Band

7080511

$4.79
