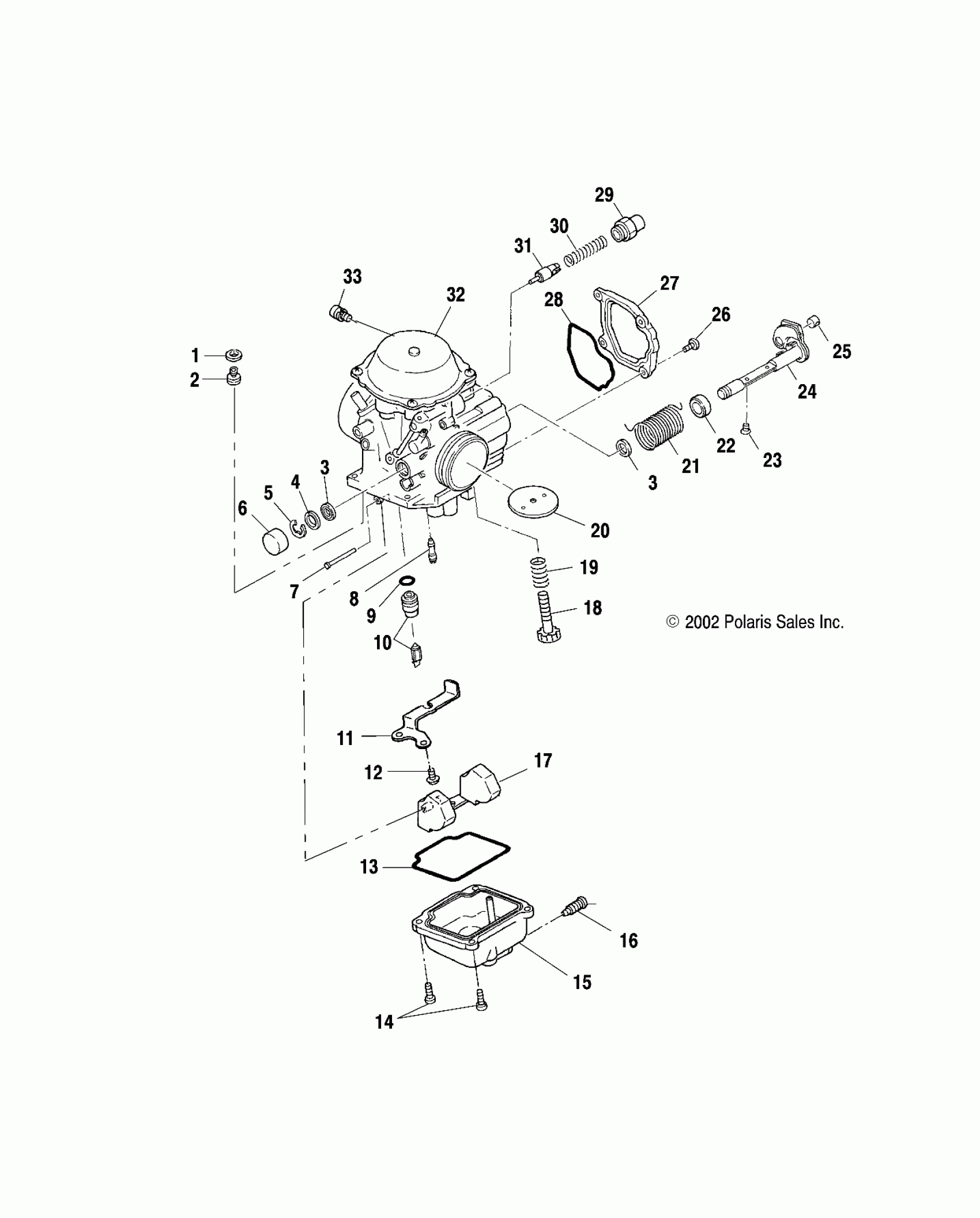

Polaris SPORTSMAN 6X6 - A03CL50AA CARBURETOR - A03CL50AA (4975687568D07) Diagram

#

Description
Price

1

WASHER

3130014

$1.59

2

Jet, Main [142.5)

3131391

$8.89

3

SEAL

3130515

$12.13

3

SEAL

3130515

$12.13

4

PACKING

----

Unavailable

5

E-RING

3130518

Unavailable

6

CAP

3130519

$10.51

7

PIN, FLOAT

3130361

$9.70

8

Jet, Pilot [#40)

3131390

$28.32

9

O-RING

3130533

$5.65

10

Valve, Needle [1.5)

3131360

$61.74

11

PLATE

3130594

$32.37

12

SCREW

3130591

$3.97

13

O-RING

3130532

$32.37

14

SCREW

3130520

$1.59

15

Asm., Float Body

3130590

$119.98

16

SCREW

3130521

$10.32

17

ASM., FLOAT

3130529

$99.74

18

SCREW, ADJUST

3131423

$23.81

19

SPRING

3130836

$8.08

20

Valve, Throttle [100]

3130502

$62.92

21

SPRING

3130589

$28.32

22

Ring

3130514

$7.27

23

SCREW

3130501

$3.97

24

Asm., Throttle Shaft

3130513

$79.37

25

GUIDE, CABLE

3130543

$32.37

26

SCREW

3130535

$7.14

27

COVER

3130511

$54.99

28

O-Ring

3130512

Unavailable

29

Holder, Guide

3130199

$28.32

30

SPRING

3130538

$5.65

31

Asm., Plunger

3130593

$40.46

32

Asm., Carburetor [Incl. All Less 25-28]

3131446

Unavailable

33

Screw and Washer

3084205

$3.97
