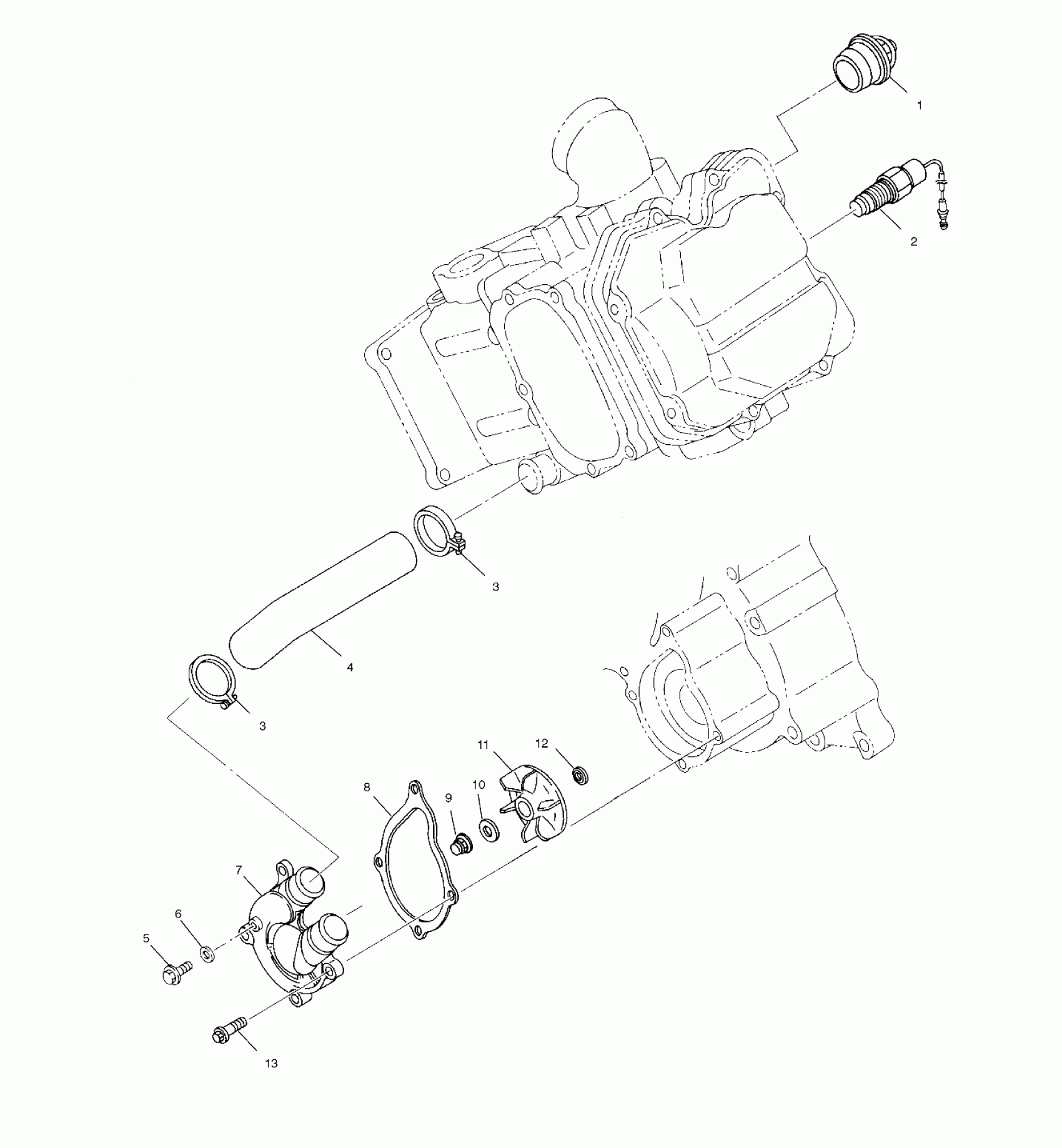

Polaris SPORTSMAN 6X6 - A02CL50AA WATER PUMP - A02CL50AA/DA (4967986798D11) Diagram

#

Description
Price

1

THERMOSTAT

3084940

$93.08

2

Switch, Thermostat

3085352

$129.51

3

Clamp, Hose

3084191

Unavailable

3

Clamp, Hose

3084191

Unavailable

4

Hose, Main

3085857

Unavailable

5

Bolt, Flange

3085359

$2.38

6

Gasket, Aluminum

3082758

$1.19

7

Cover, Water Pump

3085351

Unavailable

8

GASKET, WATER PUMP

3086840

$6.46

9

NUT, SELF LOCK

3085077

$9.52

10

GASKET, ALUMINUM

3083138

$1.19

11

IMPELLER

3084935

Unavailable

12

WASHER, SEAL

3084942

Unavailable

13

BOLT, FLANGE

3084877

Unavailable
