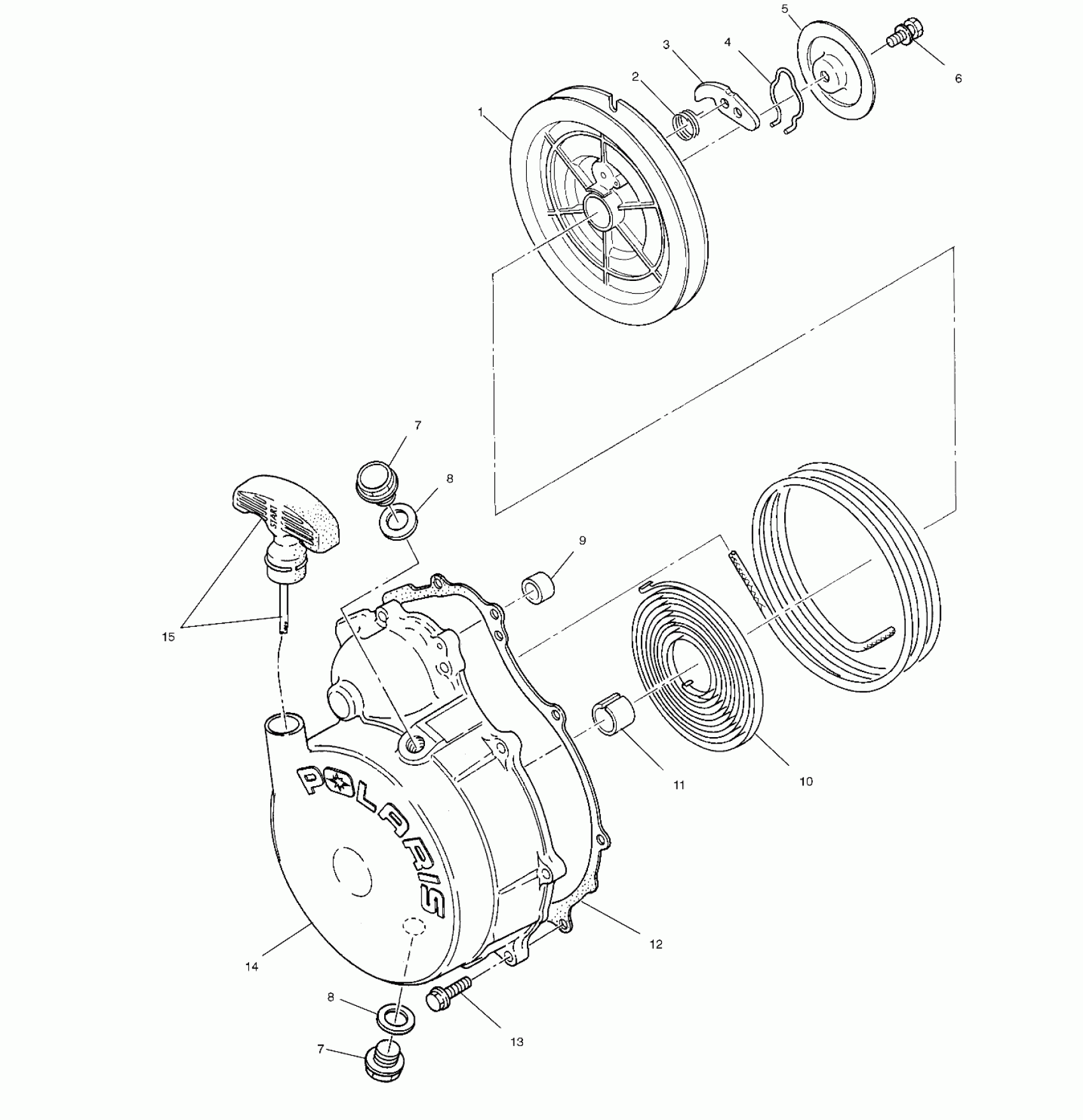

Polaris SPORTSMAN 6X6 - A02CL50AA RECOIL STARTER - A02CL50AA/DA (4967986798D10) Diagram

#

Description
Price

1

Reel

3084822

$87.99

2

Spring, Return

3083463

$4.03

3

Ratchet

3083378

$20.22

4

Spring, Friction

3083379

$24.27

5

Plate, Friction

3084744

Unavailable

6

Bolt and Washer

3085266

Unavailable

7

PLUG

3083453

Unavailable

7

PLUG

3083453

Unavailable

8

GASKET

3082956

$4.84

8

GASKET

3082956

$4.84

9

BUSHING, STARTER

3083669

Unavailable

10

Spring, Spiral

3083185

$32.95

11

Bushing

3084750

$7.19

12

Gasket, Recoil

3084933

Unavailable

13

BOLT, FLANGE

3084877

Unavailable

14

Asm., Recoil [Incl.1-6,9-11,14,15]

3087163

Unavailable

14

Starter Case [Incl. 11]

3087164

Unavailable

15

Asm., Rope

3085083

$39.99
