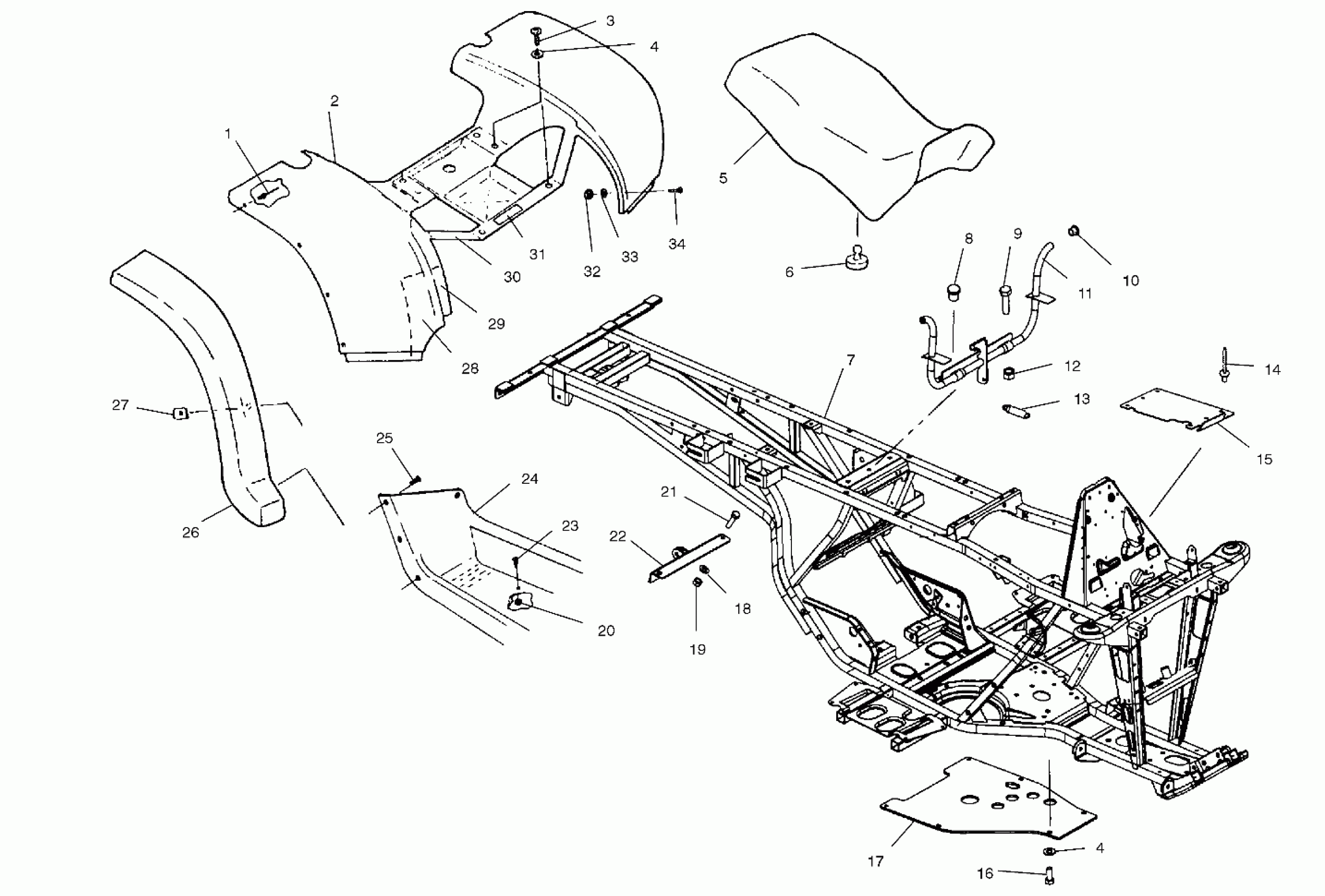

Polaris SPORTSMAN 6X6 - A02CL50AA REAR CAB and SEAT - A02CL50AA/DA (4967986798A04) Diagram

#

Description
Price

1

Rivet

7661645

$3.99

2

Cab, Rear, EB Green

5433428-195

Unavailable

3

SCREW

7512242

$2.39

4

Washer, Flat

7555859

$1.49

4

Washer, Flat

7555859

$1.49

5

Asm., Seat, Black [Incl. 6)(If built after 8/30/01)

2682959-070

Unavailable

5

Covering, Seat, Black (If built after 8/30/01)

2682960-070

Unavailable

5

Asm., Seat, Black [Incl. 6)(If built before 8/30/01)

2682701-070

Unavailable

5

Covering, Seat, Black (If built before 8/30/01)

2682519-070

Unavailable

6

BUMPER-RUBBER

5412067

$3.99

7

Frame

1013323-067

$873.00

8

Bumper, Rubber

5410414

$3.19

9

BOLT

7512240

$3.99

10

PLUG

5432798

$5.59

11

Lever, Box

1013307-067

$214.39

12

Nut

7542153

$1.59

13

Spring

7041879

$5.71

14

RIVET-3/16-.090-.290

7661637

$1.49

15

Guard, Clutch

5242953-067

Unavailable

16

Screw

7515179

$2.39

17

Guard, Rock

5432763

$87.99

18

Washer, Flat

7555734

$1.49

19

NUT-5/16-18 NYLOK-Y

7542324

$1.49

20

Nut, Nylok

7542122

$1.49

21

Screw

7512392

$4.79

22

Mount, Strut, Rear

1040293-067

$22.06

23

Screw

7512279

$1.49

24

Footwell, Black, LH

5432221-070

$230.70

24

Footwell, Black, RH [AA]

5434417-070

$230.70

24

Footwell, RH [DA]

5433219-070

$230.70

25

SCREW

7512232

$1.49

26

Guard, Mud, Rear, LH

5433429

Unavailable

26

Guard, Mud, Rear, RH

5433430

Unavailable

27

NUT, U-TYPE SPEED

7670057

$1.49

28

Foil, Foam, Rear Fender

5811111

$32.37

29

Foil, Rear Cab, Front

5811106

$8.89

30

Foil, Foam

5811087

Unavailable

31

Decal, Carb/Filter Information

7079902

Unavailable

32

Nut, Nylok

7541925

$1.49

33

WASHER

7555792

$4.79

34

Screw

7512085

Unavailable
