Description

Price

1

Ring, Retaining

7710472

$5.59

1

Ring, Retaining

7710472

$5.59

2

Retainer, Nut

5510372

Unavailable

2

Retainer, Nut

5510372

Unavailable

3

Seal, Foam

5411555

$13.59

3

Seal, Foam

5411555

$13.59

4

Nut, Jam

7547031

$27.99

4

Nut, Jam

7547031

$27.99

5

Hub, Locking Middle Axle

5630987

Unavailable

5

Hub, Locking Middle Axle

5630987

Unavailable

6

Seal

3610074

$39.99

6

Seal

3610074

$39.99

7

Housing, Swing Arm

5132219

$183.99

7

Housing, Swing Arm

5132219

$183.99

8

Bearing

3515501

$27.99

8

Bearing

3515501

$27.99

9

Seal, Axle, Rear

3610013

$19.99

9

Seal, Axle, Rear

3610013

$19.99

10

Spacer, Bearing

5132218

$27.99

10

Spacer, Bearing

5132218

$27.99

11

Nut, Nylok

7542439

$1.49

12

Hub, Brake Disc [DA]

5244597

$191.99

13

Disc, Brake

5244425

$76.89

14

Asm., Hub, Brake Disc, Locking [AA]

1520259

Unavailable

14

Asm., Hub, Brake Disc, Locking [DA]

1520373

Unavailable

15

Ring, Retaining

7710405

$4.79

16

Spacer, Axle

5010462

$27.99

17

Seal, Lip

3610070

$15.99

17

Seal, Lip

3610070

$15.99

18

Bearing, Cone

3554518

$39.99

18

Bearing, Cone

3554518

$39.99

19

Bearing, Cup

3554517

$15.99

19

Bearing, Cup

3554517

$15.99

20

Housing, Axle, Rear

5132098

$115.99

21

Fitting, Lubrication

7080306

$3.19

22

O-Ring

5410889

Unavailable

22

O-Ring

5410889

Unavailable

23

Stud [AA]

7515513

$1.49

23

Stud [DA]

7517871

$1.59

24

O-Ring

5411739

$6.99

24

O-Ring

5411739

$6.99

24

O-Ring

5411739

$6.99

24

O-Ring

5411739

$6.99

25

Axle, Middle

5132049

Unavailable

26

Asm., Hub, Sprocket (If built before 1/07/02)

1520311

$96.52

27

Sprocket, 38T (If built after 1/07/02)

3221139

$99.99

27

Sprocket, 38T (If built before 1/07/02)

3221120

Unavailable

27

Sprocket, 38T (If built after 1/07/02)

3221139

$99.99

27

Sprocket, 38T (If built before 1/07/02)

3221120

Unavailable

28

Nut, FLEXLOC (If built before 1/07/02)

7542507

$3.99

28

Nut, FLEXLOC (If built before 1/07/02)

7542507

$3.99

29

Stud (If built before 1/07/02)

7517762

Unavailable

29

Stud (If built before 1/07/02)

7517762

Unavailable

30

Link, Connector

3225026

Unavailable

31

Chain, 80P

3224056-080

$129.51

32

Sprocket, 30T (If built after 1/07/02)

3221138

$89.03

32

Sprocket, 30T (If built before 1/07/02)

3221121

$121.41

32

Sprocket, 30T (If built after 1/07/02)

3221138

$89.03

32

Sprocket, 30T (If built before 1/07/02)

3221121

$121.41

33

Asm., Hub, Sprocket, Mid (If built before 1/07/02)

1520319

$89.03

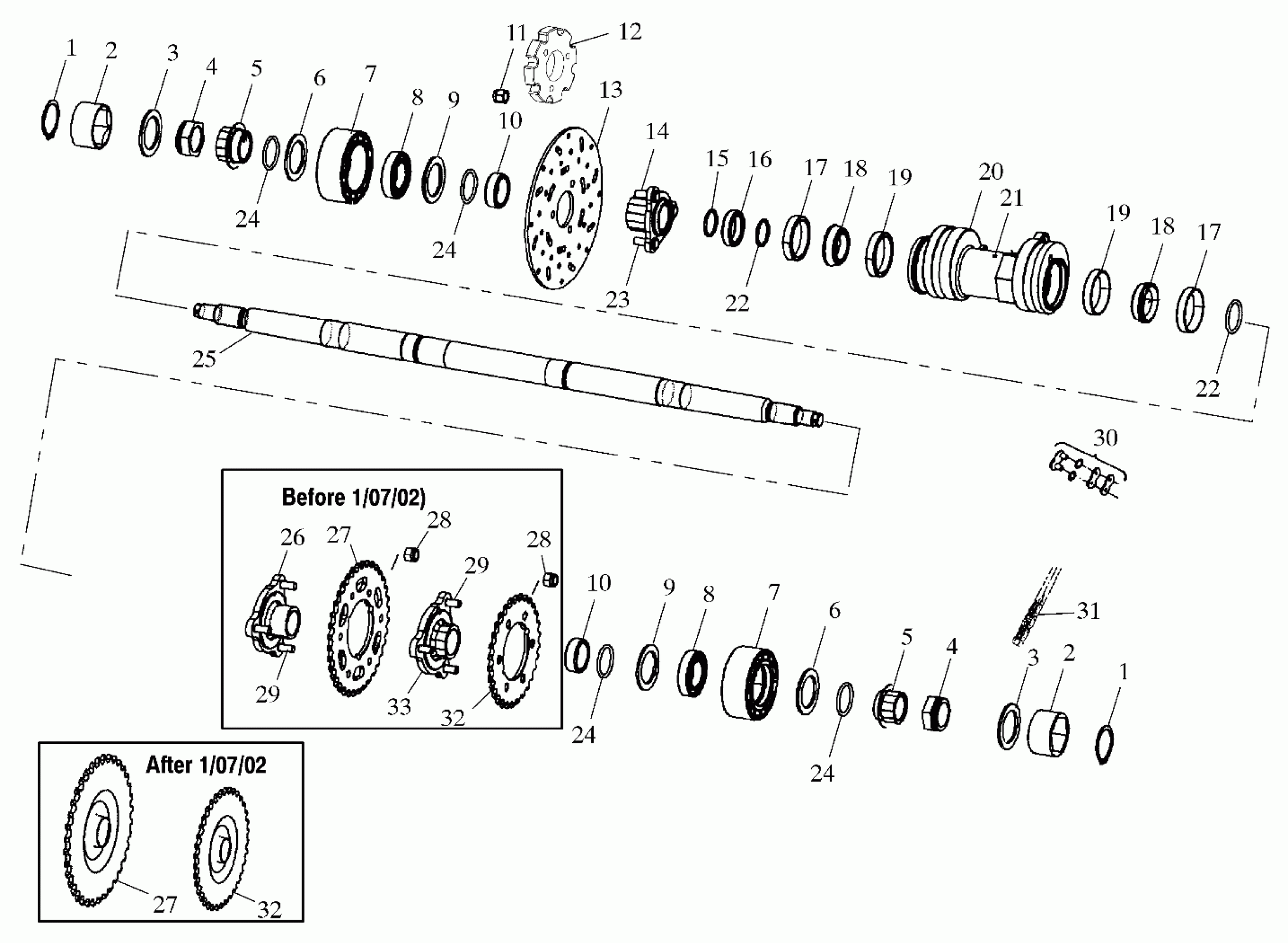

Polaris SPORTSMAN 6X6 - A02CL50AA MIDDLE DRIVE - A02CL50AA/DA (4967986798B11) Diagram

Ring, Retaining

Ring, Retaining

Retainer, Nut

Retainer, Nut

Seal, Foam

Seal, Foam

Nut, Jam

Nut, Jam

Hub, Locking Middle Axle

Hub, Locking Middle Axle

Seal

Seal

Housing, Swing Arm

Housing, Swing Arm

Bearing

Bearing

Seal, Axle, Rear

Seal, Axle, Rear

Spacer, Bearing

Spacer, Bearing

Nut, Nylok

Hub, Brake Disc [DA]

Disc, Brake

Asm., Hub, Brake Disc, Locking [AA]

Asm., Hub, Brake Disc, Locking [DA]

Ring, Retaining

Spacer, Axle

Seal, Lip

Seal, Lip

Bearing, Cone

Bearing, Cone

Bearing, Cup

Bearing, Cup

Housing, Axle, Rear

Fitting, Lubrication

O-Ring

O-Ring

Stud [AA]

Stud [DA]

O-Ring

O-Ring

O-Ring

O-Ring

Axle, Middle

Asm., Hub, Sprocket (If built before 1/07/02)

Sprocket, 38T (If built after 1/07/02)

Sprocket, 38T (If built before 1/07/02)

Sprocket, 38T (If built after 1/07/02)

Sprocket, 38T (If built before 1/07/02)

Nut, FLEXLOC (If built before 1/07/02)

Nut, FLEXLOC (If built before 1/07/02)

Stud (If built before 1/07/02)

Stud (If built before 1/07/02)

Link, Connector

Chain, 80P

Sprocket, 30T (If built after 1/07/02)

Sprocket, 30T (If built before 1/07/02)

Sprocket, 30T (If built after 1/07/02)

Sprocket, 30T (If built before 1/07/02)

Asm., Hub, Sprocket, Mid (If built before 1/07/02)
