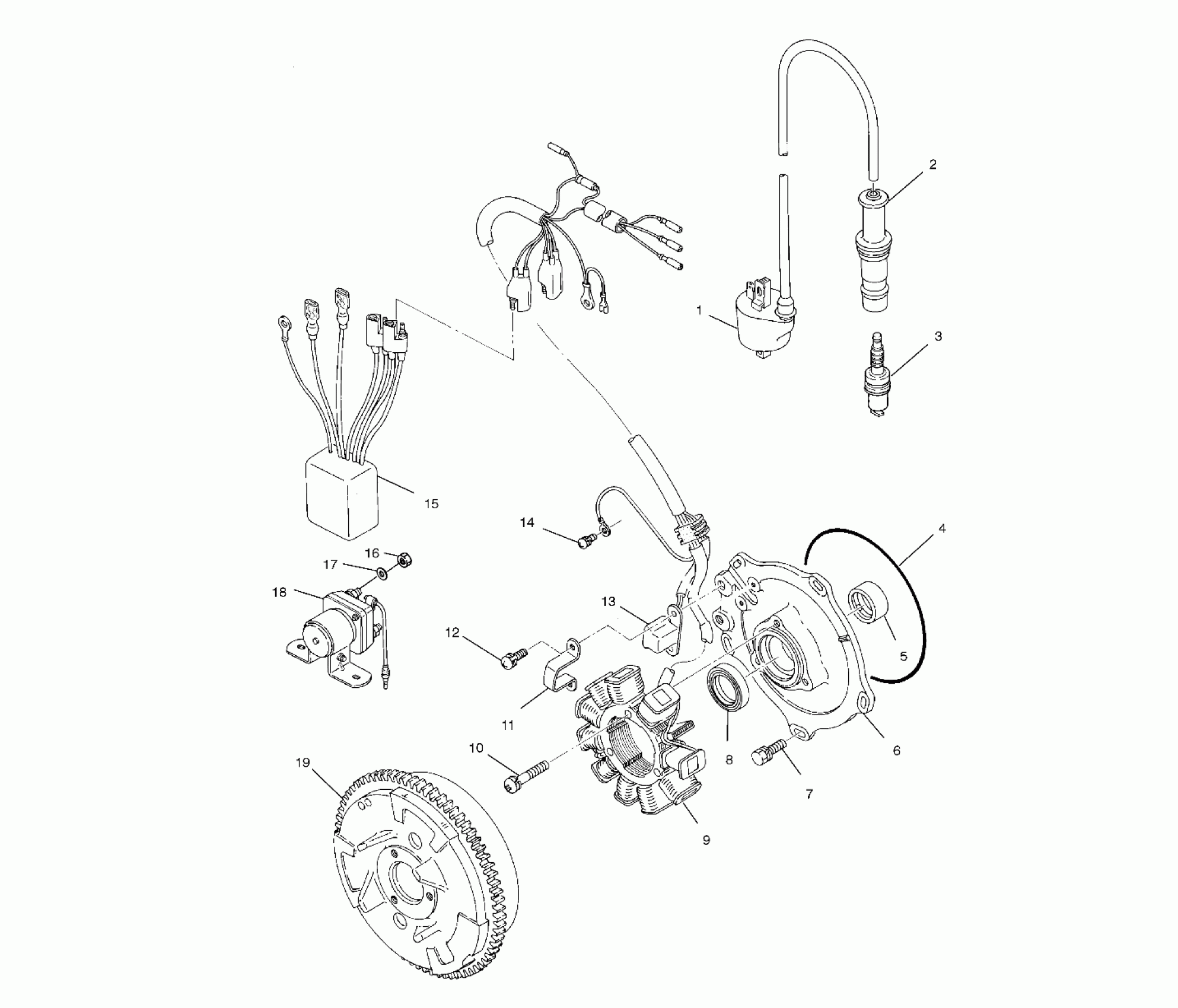

Polaris SPORTSMAN 6X6 - A02CL50AA MAGNETO - A02CL50AA/DA (4967986798D14) Diagram

#

Description
Price

1

Asm., Ignition Coil [Incl. 1,2]

3085227

Unavailable

1

Coil, Ignition

3085228

Unavailable

2

CAP, SPARK PLUG

3084980

$59.99

3

Plug, Spark, BKR5E

3070175

$3.99

4

O-RING

3084978

$35.99

5

Metal, Bearing

3084972

Unavailable

6

Asm., Plate [Incl. 5,6,8-14](S# 02-00894 and higher)

3087167

Unavailable

6

Asm., Plate [Incl. 5,6,8-14](through S# 02-00893)

3086980

Unavailable

6

Plate

3086981

Unavailable

7

Bolt and Washer

3081657

$4.79

8

SEAL, OIL

3084973

$27.99

9

Stator [Incl. 13](S# 02-00894 and higher)

3087168

Unavailable

9

Stator [Incl. 13](through S# 02-00893)

3086984

Unavailable

10

Screw and Washer

3086985

Unavailable

11

Band, Pulse

3085554

Unavailable

12

Screw and Washer

3084976

Unavailable

13

Coil, Pulser

3085360

Unavailable

14

Screw and Washer

3081256

$3.19

15

CDI System (S# 02-00894 and higher)

3087169

Unavailable

15

CDI System (through S# 02-00893)

3086982

Unavailable

16

Nut

3083073

$2.39

17

Washer, Spring

3080077

$2.39

18

Switch, Magnetic

3085521

$60.70

19

Flywheel w/Ring Gear (S# 02-00894 and higher)

3087166

Unavailable

19

Flywheel w/Ring Gear (through S# 02-00893)

3086983

Unavailable
