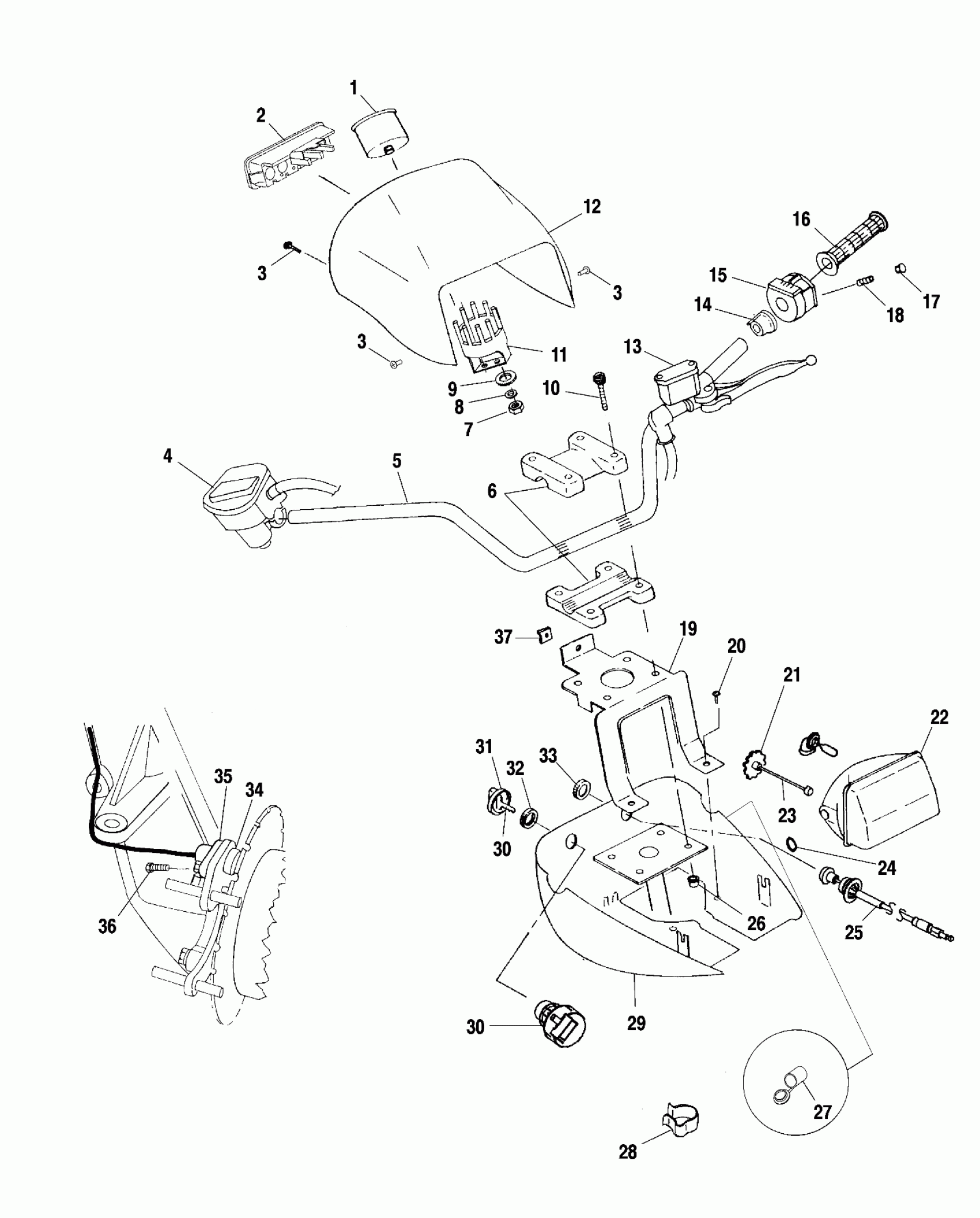

Polaris SPORTSMAN 6X6 - A02CL50AA HANDLEBAR and HEADLIGHT POD - A02CL50AA/DA (4967986798D01) Diagram

#

Description
Price

1

Speedometer, MPH [AA]

3280363

Unavailable

1

Speedometer, KPH [DA]

3280358

Unavailable

2

Panel, Indicator Light

4010315

Unavailable

2

Bulb

4010416

$9.59

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B7, REF. 5]

-------

Unavailable

5

Tube, Handlebar

5244581-067

$83.59

6

Kit, Handlebar Block [Incl. Blocks and 6,10,28]

2200774

Unavailable

6

Block, Handlebar Retainer

5630616-067

Unavailable

7

Nut, Brass

7541933

$4.99

8

Washer, Lock

7555868

Unavailable

9

Washer, Flat

7558212

$1.49

10

SCREW

7515189

Unavailable

11

Clamp, Speedometer

3280291

Unavailable

12

Pod, Headlight, Upper

5433763-195

Unavailable

13

ASM., MASTER CYLINDER [SEE CONTROLS - RH, MASTER CYLINDER/BRAKE LINE PG. B9 FOR DETAILS]

-------

Unavailable

14

Spacer, Switch

5433903

Unavailable

15

Switch, Handlebar

4010422

$123.54

16

Grip, Handlebar

5433834-070

$24.27

17

Plug

5432952

$5.59

18

SCREW, SET

7517625

$4.79

19

Bracket, Pod Mounting

5244969-067

$44.99

20

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

21

KNOB, ADJUSTING

4032079

$23.99

22

KIT-HARNESS,HEADLIGHT

2204143

$71.99

22

BULB-HEADLIGHT,50 WATT

4010253

$34.99

22

Asm., Head Lamp

2410268

$109.27

23

Rod, Adjusting

4032078

Unavailable

24

O-RING

5410163

$1.60

25

Cable, Choke

7081008

$79.99

26

Nut, Nylok

7542122

$1.49

27

Receptacle, Pod Mount, 12V

4010283

Unavailable

28

Clip, Cable Retaining

7080631

$6.29

29

Pod, Headlight, Lower

5433762-070

$114.99

30

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

30

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

30

Switch, Ignition [Incl. Key]

4010390

Unavailable

30

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

30

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

30

Switch, Ignition [Incl. Key]

4010390

Unavailable

31

KEY SWITCH KEY COVER

5433534

$12.35

32

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

33

Nut, Choke Slide

7080922

$3.19

34

Cap, Sensor

5132382

$23.99

35

Sensor

4010298

$111.99

36

Screw

7517658

$5.59

37

CLIP

7670127

$9.59
