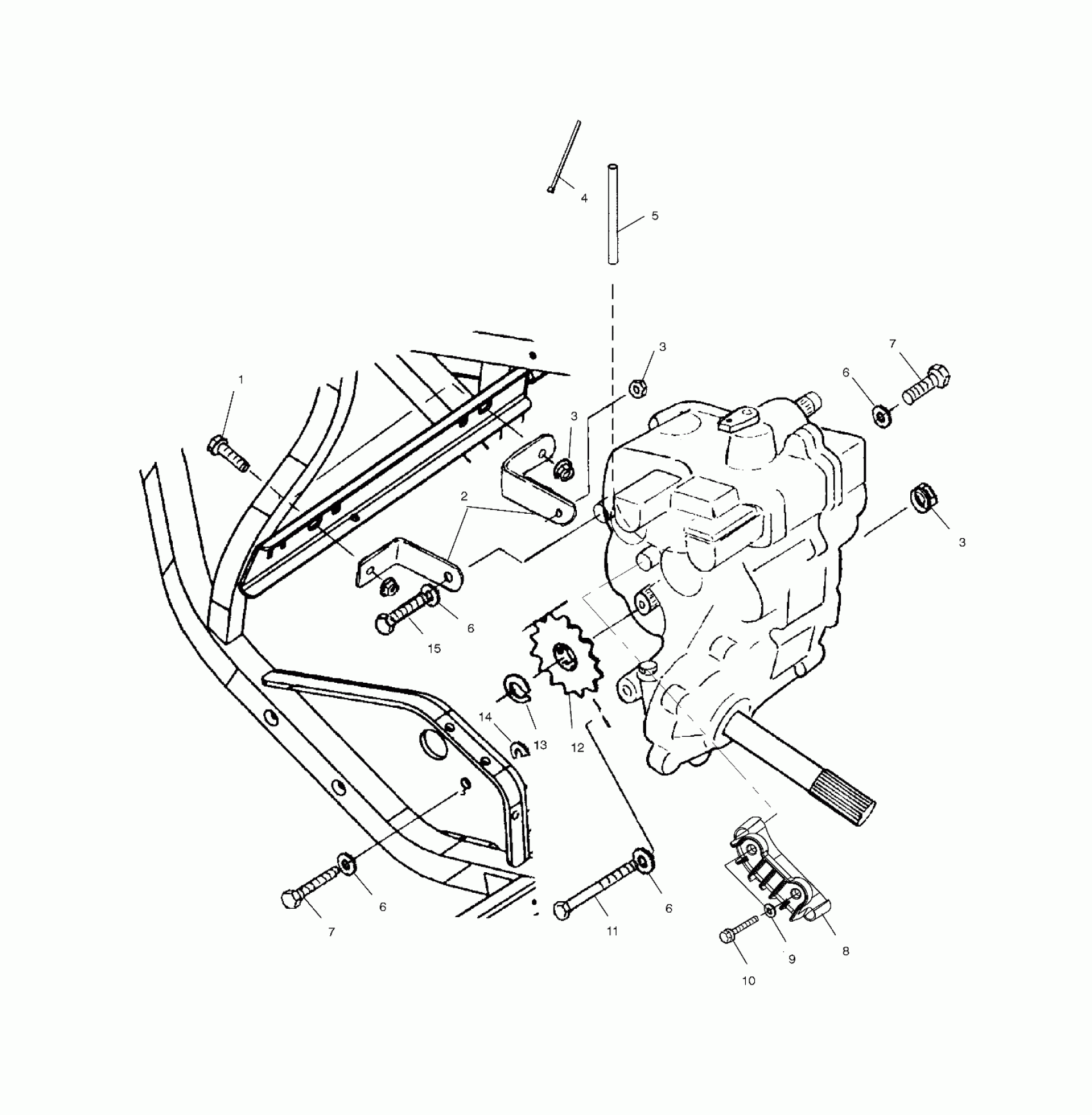

Polaris SPORTSMAN 6X6 - A02CL50AA GEARCASE MOUNTING - A02CL50AA/DA (4967986798C08) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

2

Bracket, Transmission

5242456-067

Unavailable

3

Nut, Flange

7542423

$3.99

3

Nut, Flange

7542423

$3.99

3

Nut, Flange

7542423

$3.99

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

Line, Vent

8360009-700

Unavailable

6

Washer, Flat

7555806

$1.49

6

Washer, Flat

7555806

$1.49

6

Washer, Flat

7555806

$1.49

6

Washer, Flat

7555806

$1.49

7

Screw

7512492

$1.49

7

Screw

7512492

$1.49

8

Guide, Chain, Transmission (If built before 9/01/01)

5433109

$28.32

9

Washer, Flat (If built before 9/01/01)

7558301

$1.49

10

Screw (If built before 9/01/01)

7512276

$4.79

11

SCREW

7517646

$7.19

12

Sprocket, 12T

3221044

$43.99

13

RING, RETAINING

7710434

$3.99

14

Shim [.020"]

5210764

Unavailable

14

Shim [.010"]

5211065

Unavailable

14

Shim [.030"]

5211517

Unavailable

15

Screw

7517640

$10.39
