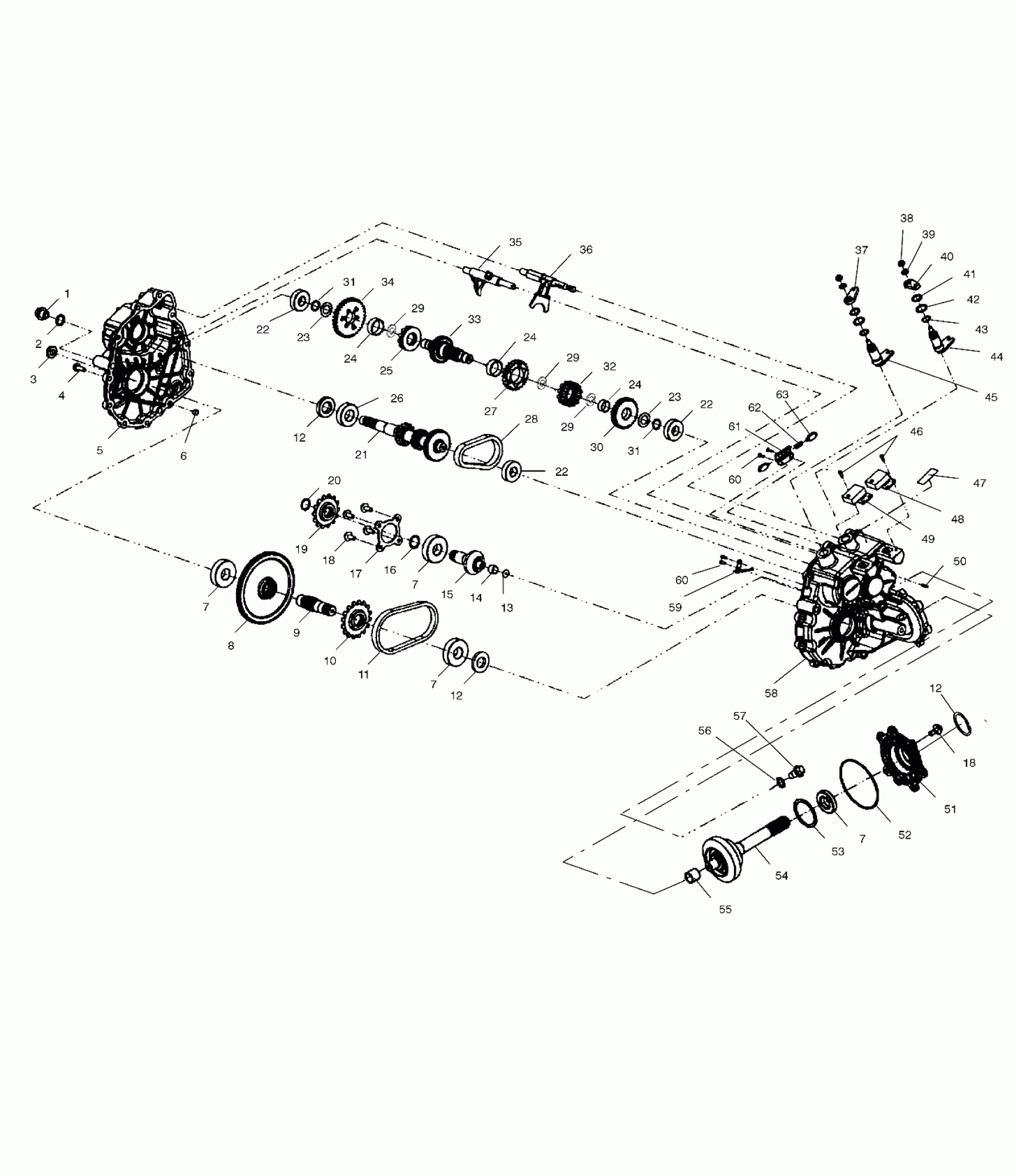

Polaris SPORTSMAN 6X6 - A02CL50AA GEARCASE - A02CL50AA/DA (4967986798C13) Diagram

#

Description
Price

-

Asm., Gearcase [Incl. 1-63][A02CL50AA Only]

1341291

Unavailable

1

Plug

3233448

$23.81

2

Washer

3233035

Unavailable

3

Bushing, Pivot

3233527

$39.99

4

Screw

3233252

$5.69

5

Gearcase, LH

3233632

$354.99

6

Pipe, Knock

3233529

$10.99

7

BEARING

3233020

$47.62

7

BEARING

3233020

$47.62

7

BEARING

3233020

$47.62

7

BEARING

3233020

$47.62

8

Gear, 100T

3233360

Unavailable

9

Shaft, Output

3233544

$174.99

10

Sprocket, 15/26T

3233729

$97.13

11

Chain, Roller

3233546

$68.79

12

Seal

3233248

$32.37

12

Seal

3233248

$32.37

12

Seal

3233248

$32.37

13

Washer

3233542

$11.32

14

Bushing, Garlock

3233541

$23.81

15

Shaft, Pinion 13T

3233540

$158.73

16

RING, RETAINING

3233306

$4.76

17

Cover, Bearing

3233263

Unavailable

18

Screw

3233539

Unavailable

18

Screw

3233539

Unavailable

19

Sprocket, 15/22T

3233730

Unavailable

20

Ring, Retaining

3233537

$6.99

21

Shaft, Input High/Low/Reverse

3233704

Unavailable

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

23

Washer

3233176

$9.52

23

Washer

3233176

$9.52

24

BEARING, NEEDLE

3233718

$35.71

24

BEARING, NEEDLE

3233718

$35.71

24

BEARING, NEEDLE

3233718

$35.71

25

Engagement Dog, Low

3233732

$178.08

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

Sprocket, 24T

3233719

$109.27

28

Chain, Silent

3233036

Unavailable

29

Ring, Retaining

3233720

$9.52

29

Ring, Retaining

3233720

$9.52

29

Ring, Retaining

3233720

$9.52

30

Gear, 30T

3233722

Unavailable

31

Ring, Retaining

3233177

$6.46

31

Ring, Retaining

3233177

$6.46

32

Engagement Dog, High/Reverse

3233721

Unavailable

33

Shaft, Reverse, 29T

3233733

Unavailable

34

Gear, 33T

3233731

Unavailable

35

Fork, Shift, Low

3233706

$119.05

36

Fork, Shift, High/Reverse

3233633

$141.65

37

Bellcrank

3233547

$56.99

38

Nut

3233055

$3.32

39

Washer

3233054

$6.46

40

Bellcrank, High/Low/Reverse

3233153

$32.37

41

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

42

Washer

3233040

$9.52

43

O-Ring

3233548

$33.24

44

Shaft, Shift, High/Reverse

3233737

$71.43

45

Shaft, Shift, High/Low/Reverse

3233549

Unavailable

46

Screw

3233691

$5.65

47

Decal, Switch

3233636

Unavailable

48

Switch, High/Reverse

3233635

$174.99

49

Switch

3233617

Unavailable

50

Vent

3233037

Unavailable

51

Cover, Snorkel

3233556

$31.11

52

O-Ring

3233555

$6.06

53

SHIM

3233554

$39.99

54

Snorkel

3233723

Unavailable

55

BUSHING-GARLOCK

3233552

$23.81

56

Washer

3233324

$8.54

57

Plug, Oil Fill

3233711

Unavailable

58

Gearcase

3233799

Unavailable

59

Deflector, Oil

3233043

$13.10

60

Screw

3233033

Unavailable

60

Screw

3233033

Unavailable

61

Bracket, Interlock

3233309

$20.48

62

Spring

3233032

$13.75

63

Pin, Interlock

3233308

Unavailable
