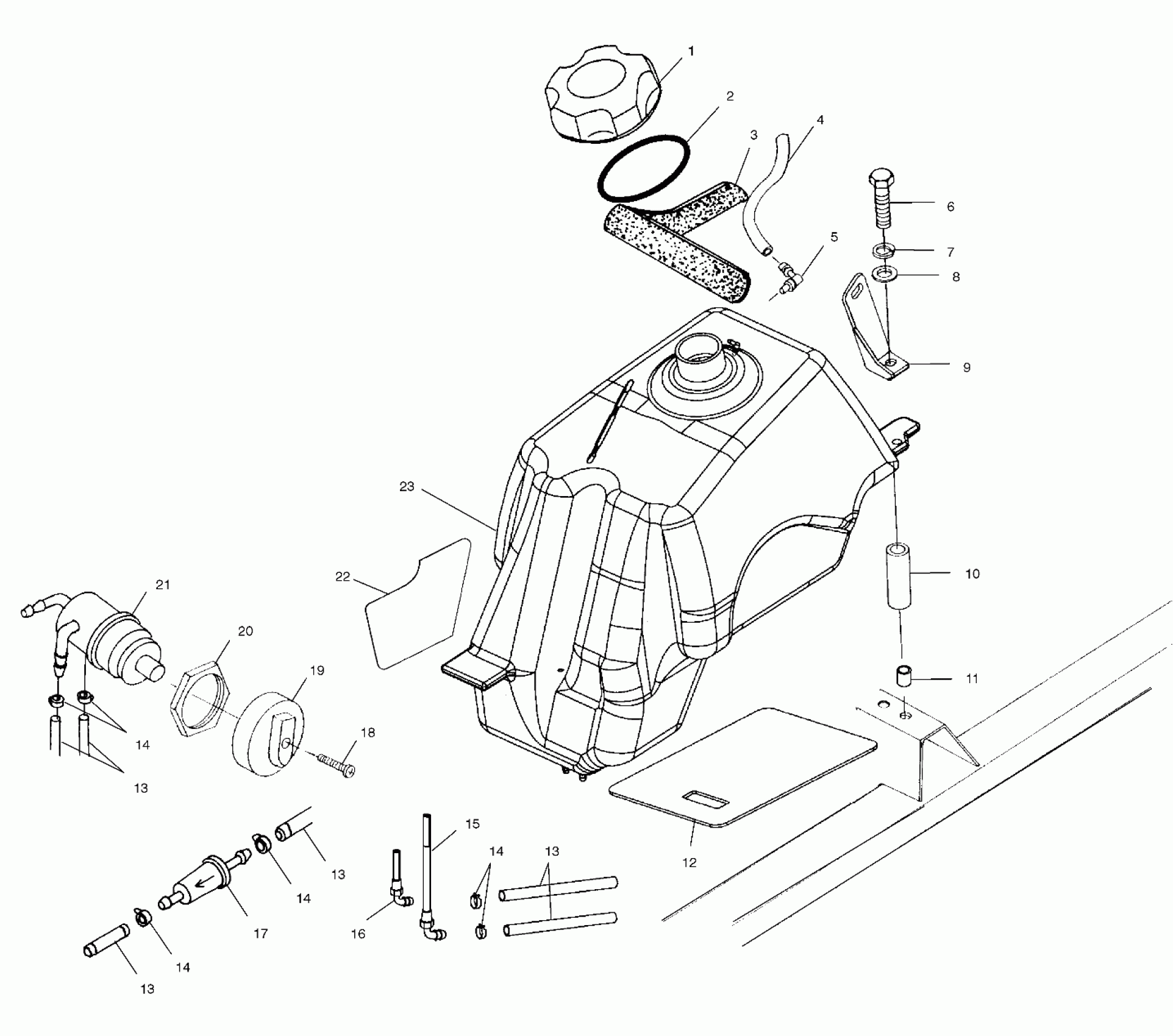

Polaris SPORTSMAN 6X6 - A02CL50AA FUEL TANK - A02CL50AA/DA (4967986798A11) Diagram

#

Description
Price

1

Cap, Gas Tank

5433687

$20.22

2

Gasket, Fuel Cap

5812123

$5.65

3

Seal, Foam

5811310

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

Vent, Tank

5431053

$24.27

6

Bolt

7517451

$5.56

7

WASHER, SPRING LOCK

7552801

$1.59

8

Washer, Flat

7558301

$1.19

9

Bracket, Mounting, Rear, LH

5222154-067

Unavailable

9

Bracket, Mounting, Rear, RH

5222155-067

Unavailable

10

Spacer

5332457

Unavailable

11

Nutsert

7547069

$3.97

12

Foil

5812005

$20.22

13

Line, Fuel

8450040-600

Unavailable

13

Line, Fuel

8450040-600

Unavailable

13

Line, Fuel

8450040-600

Unavailable

13

Line, Fuel

8450040-600

Unavailable

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

14

HOSE CLAMP, RED

7080003

$1.19

15

Fitting, Fuel Outlet, Main, 90 Degree

7052147

Unavailable

16

Fitting, Fuel Outlet, Reserve, 90 Degree

7052148

$9.52

17

Filter, Fuel

2530009

$6.46

18

Screw

7517505

$1.59

19

Knob, Fuel Valve

5432559

$11.32

20

Nut, Fuel Valve

5432733

Unavailable

21

Valve, 3-Way

7052161

$44.51

22

Foil

5812004

$20.22

23

Asm., Fuel Tank [Incl. 15,16]

2520166

Unavailable
