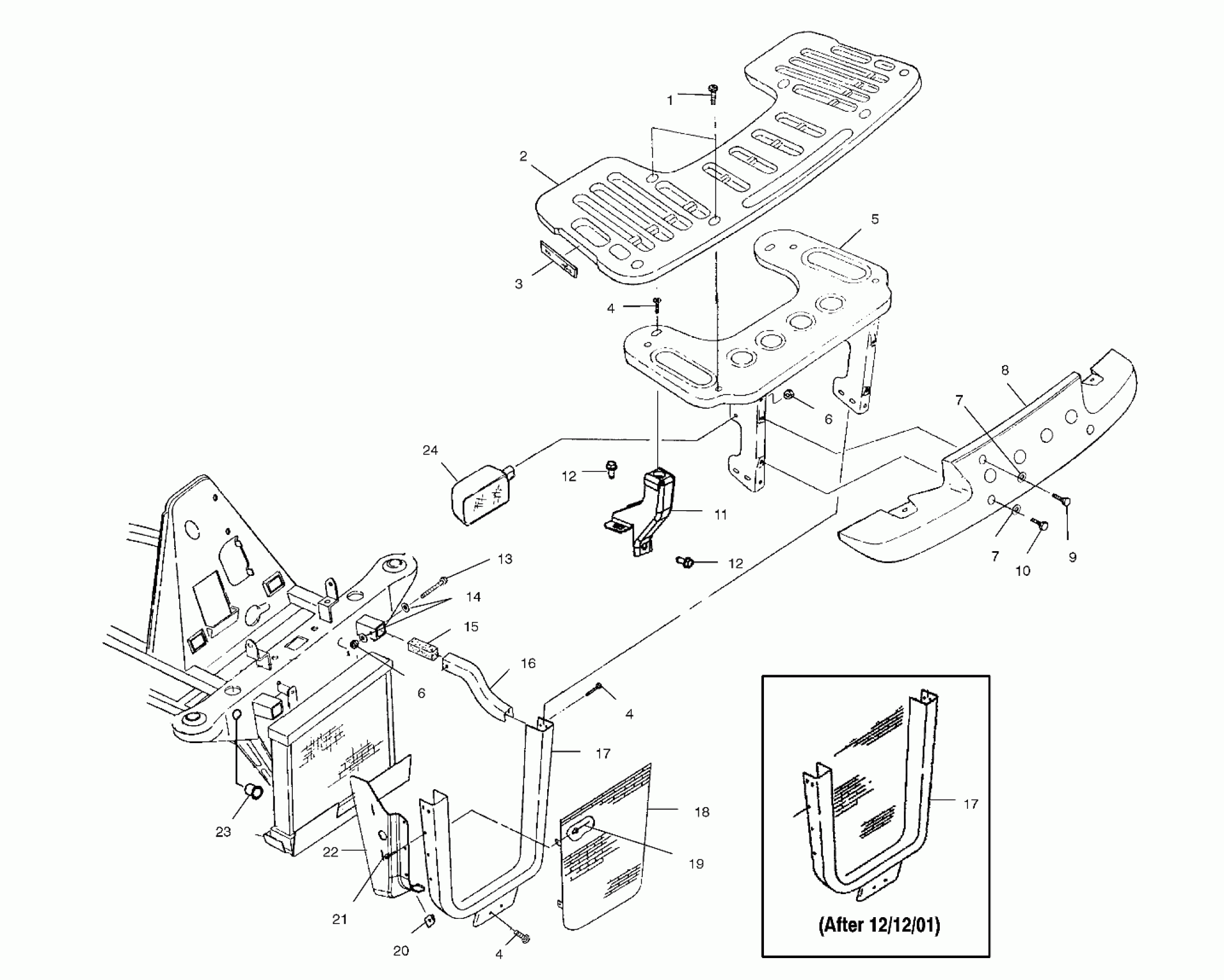

Polaris SPORTSMAN 6X6 - A02CL50AA FRONT RACK and BUMPER MOUNTING - A02CL50AA/DA (4967986798A06) Diagram

#

Description
Price

1

SCREW

7517685

$1.59

2

Asm., Front Rack [Incl. Ref. 3 and Warning Decal]

2632340-070

Unavailable

3

Decal, Reflector, Amber

7079926

$6.19

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

4

SCREW

7515399

$1.49

5

Kit, Front Rack Mount

2200775

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

WASHER

7555954

$4.79

7

WASHER

7555954

$4.79

8

Bumper

5432155-070

$143.99

9

Screw

7515391

$4.79

10

Screw

7515390

Unavailable

11

Support, Front Rack, LH

1013744-067

$119.99

11

Support, Front Rack, RH

1013746-067

$94.99

12

SCREW

7512232

$1.49

12

SCREW

7512232

$1.49

13

Bolt

7512329

$3.99

14

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

15

PLUG, FRAME

5810467

Unavailable

16

Extension, Frame, LH

5244729-067

$164.99

16

Extension, Frame, RH

5244730-067

$144.99

17

Guard, Brush (If built before 12/12/01)

5244731-067

Unavailable

17

Guard, Brush (If built after 12/12/01)

1013772-067

Unavailable

17

Guard, Brush (If built before 12/12/01)

5244731-067

Unavailable

17

Guard, Brush (If built after 12/12/01)

1013772-067

Unavailable

18

Grill, Brush Guard (If built before 12/12/01)

5240591-067

$62.99

19

Rivet (If built before 12/12/01)

7621330

$1.49

20

Nut, U-Type

7670094

$5.59

21

Screw

7512097

$3.99

22

Shield, Side, Radiator, LH

5433923

$31.99

22

Shield, Side, Radiator, RH

5433924

$31.99

23

Nutsert

7547069

$3.99

24

Bulb, Replacement, 27W

4030059

Unavailable

24

Headlight, LH

2431014

Unavailable

24

Headlight, RH

2431015

$92.99
