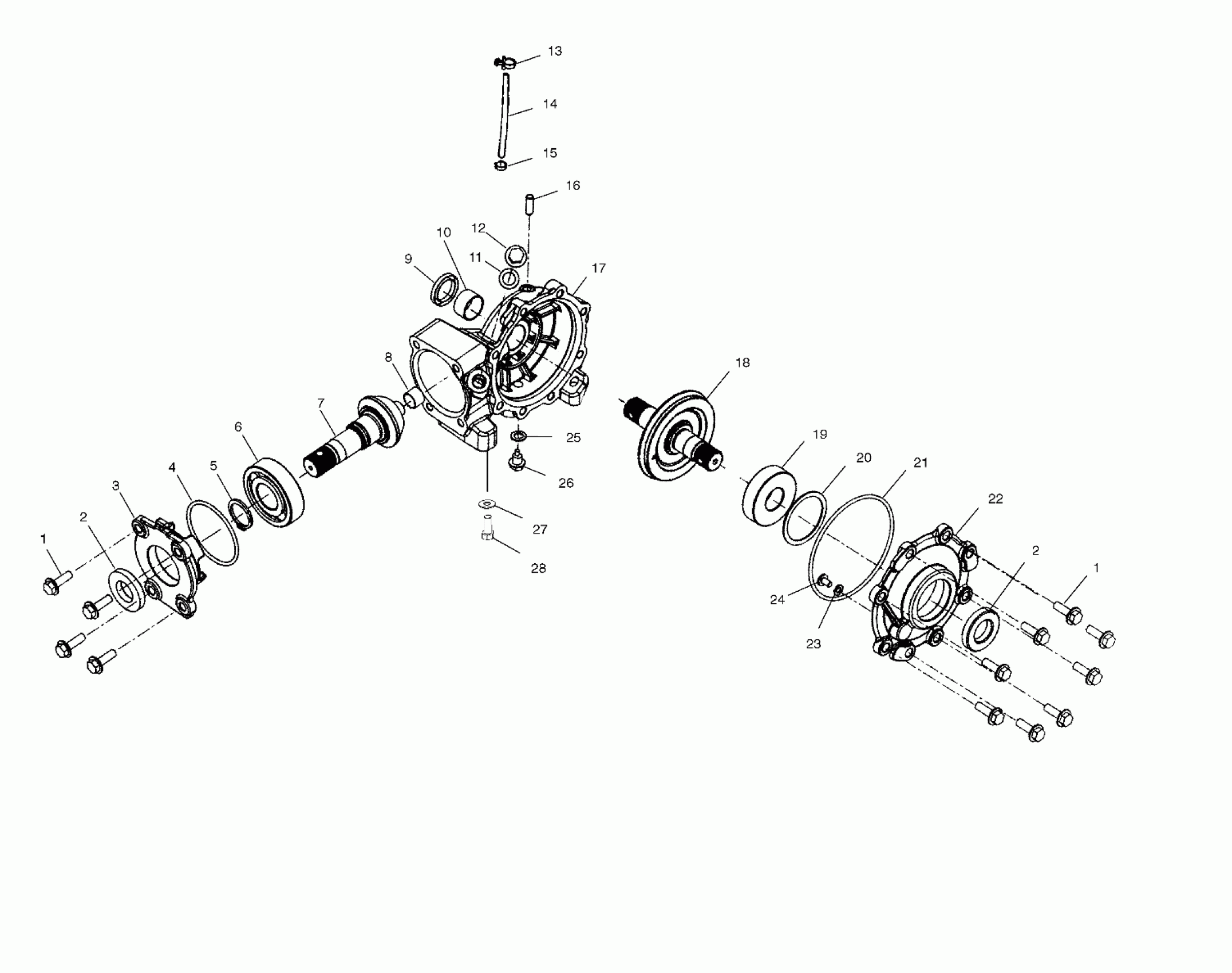

Polaris SPORTSMAN 6X6 - A02CL50AA FRONT HOUSING - A02CL50AA/DA (4967986798B01) Diagram

#

Description
Price

-

Asm., Front Gearcase [Incl. 1-12,16-26]

1341323

$1,204.99

1

Screw

3233252

$5.27

1

Screw

3233252

$5.27

2

Seal

3233248

$30.88

2

Seal

3233248

$30.88

3

Cover, Input, Front Housing

3233701

$39.37

4

O-Ring

3233700

Unavailable

5

RING, RETAINING

3233699

$7.19

6

BEARING,BALL

3233589

$59.99

7

Pinion, Input, 14T

3233726

Unavailable

8

Bushing

3233541

$23.99

9

Seal, Oil

3233319

$27.99

10

Bushing

3233697

Unavailable

11

Washer

3233324

$8.99

12

Plug

3233711

Unavailable

13

CLIP, SNAP-IN

7080756

$4.79

14

Line, Fuel

8450003-1525

Unavailable

15

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

TUBE, VENT

3233524

$7.19

17

Gearcase, Front Housing

3233696

Unavailable

18

Shaft, Output, 29T

3233725

Unavailable

19

BEARING

3233020

$47.99

20

SHIM

3233554

Unavailable

21

O-Ring

3233693

Unavailable

22

Cover, Output

3233724

Unavailable

23

SHIM

3233583

Unavailable

24

THRUST BUTTON

3233582

$7.91

25

Washer

3233254

$7.99

26

Plug, Drain

3233253

$34.99

27

Washer, Spring Lock

7552603

$1.49

28

Screw

7512492

$1.49
