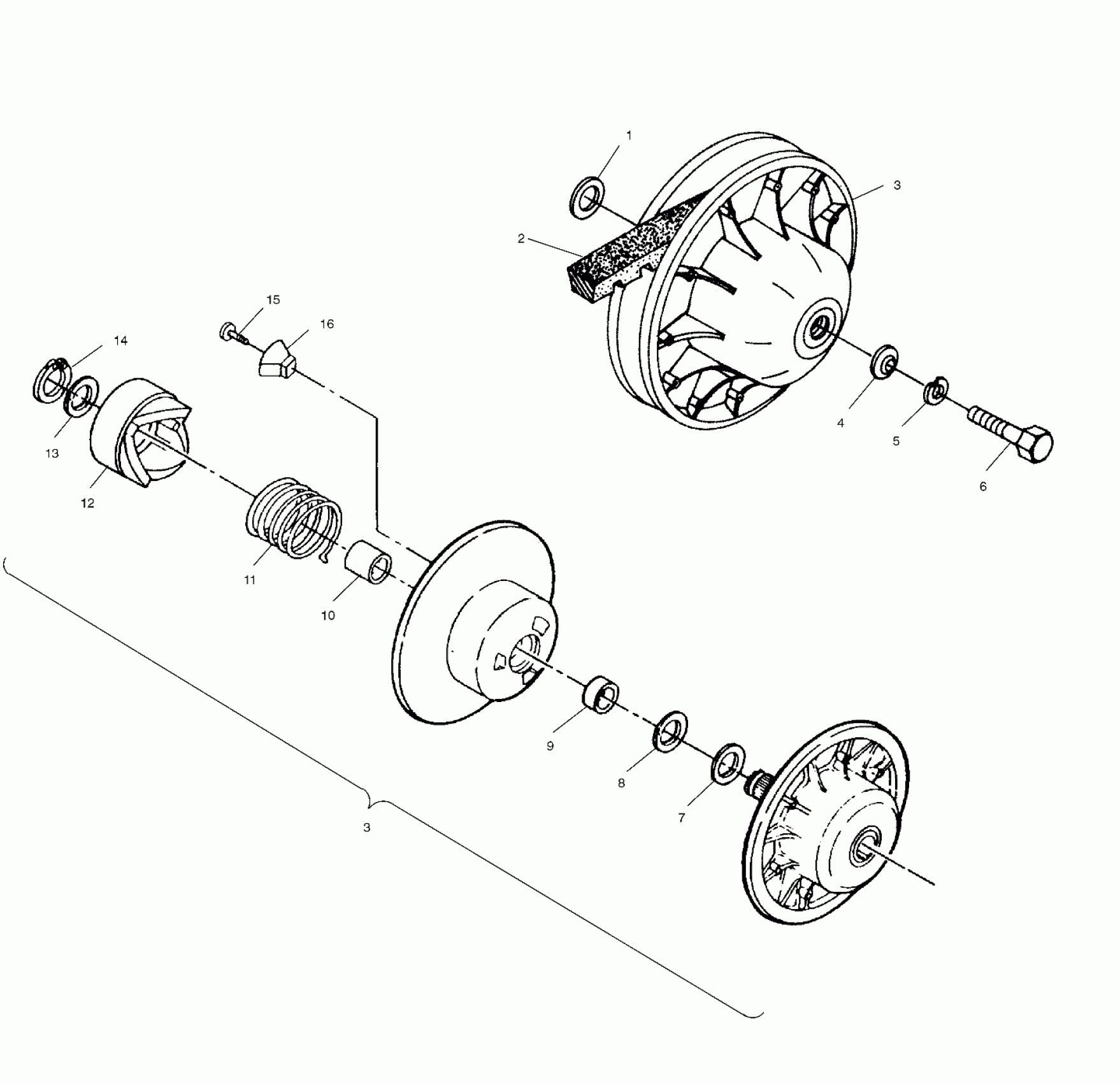

Polaris SPORTSMAN 6X6 - A02CL50AA DRIVEN CLUTCH - A02CL50AA/DA (4967986798C04) Diagram

#

Description
Price

1

BUSHING [3 MAX]

7556120

Unavailable

2

BELT, DRIVE

3211077

$75.99

3

Asm., Driven Clutch (Incl. 7-10,13-16)

1322180

Unavailable

3

Asm., Driven Clutch (Incl. 7-10,13-16)

1322180

Unavailable

4

Washer

5220646

$2.38

5

Washer

7552901

$1.19

6

BOLT

7515382

$2.38

7

Washer [.020]

7555898

Unavailable

7

Washer [.025]

7556076

Unavailable

8

Washer [.030]

7556804

Unavailable

9

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.81

10

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.78

11

Spring, Clutch

7041198

$56.65

12

RAMP, STATIONARY

5131446

$93.08

13

Spacer

5210752

$1.59

14

Ring, Retaining

7710448

$3.17

15

Bolt

7511854

$1.19

16

Button, Ramp

5430766

$6.35
