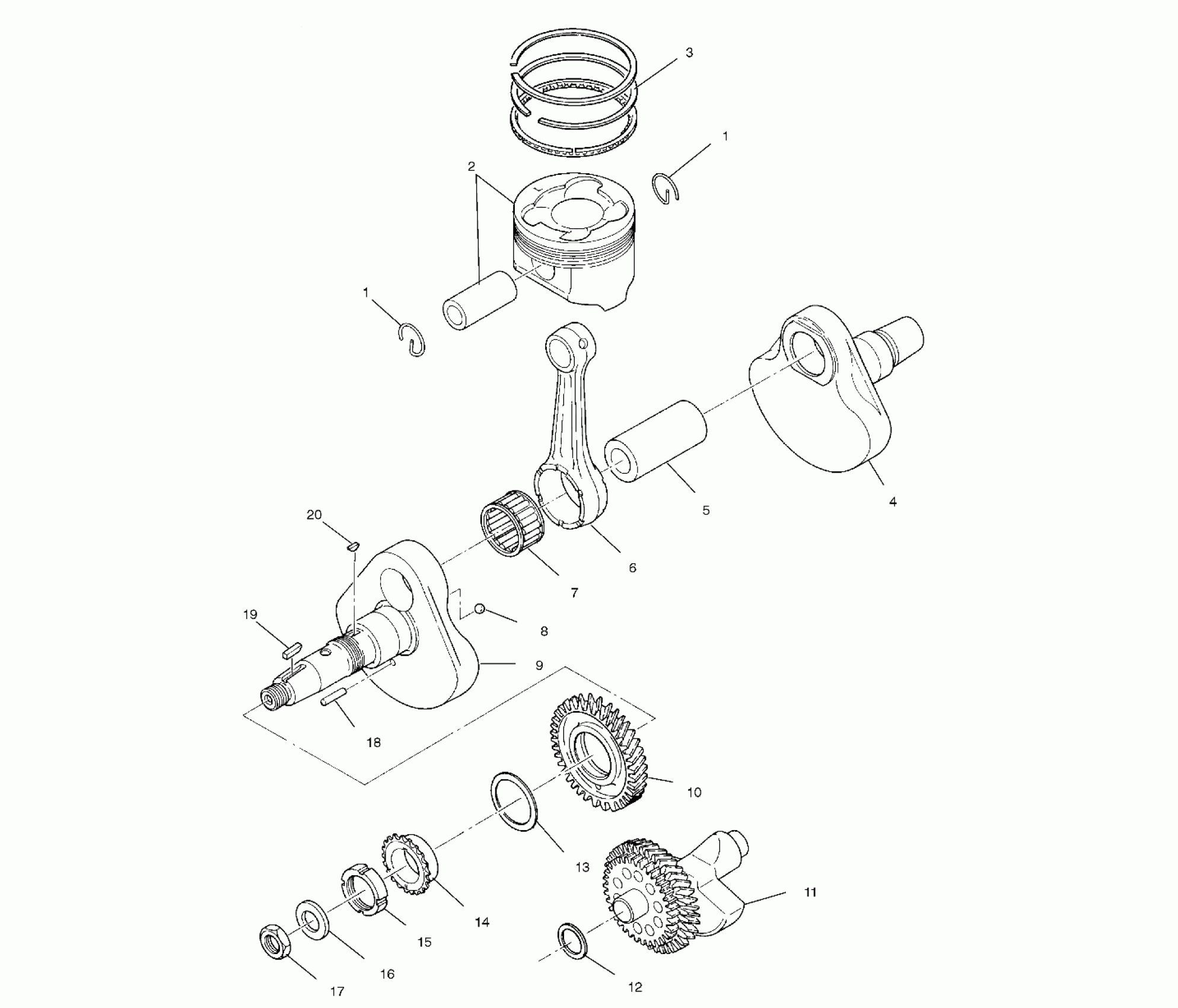

Polaris SPORTSMAN 6X6 - A02CL50AA CRANKSHAFT and PISTON - A02CL50AA/DA (4967986798D04) Diagram

#

Description
Price

1

CLIP

3085534

Unavailable

1

CLIP

3085534

Unavailable

2

Asm., Piston Set [Std] [Incl. 1]

3087170

Unavailable

2

Asm., Piston Set [0.25 O/S] [Incl. 1]

3087171

Unavailable

2

Asm., Piston Set [0.50 O/S] [Incl. 1]

3087172

Unavailable

3

Piston Ring Set [Std]

3085379

Unavailable

3

Piston Ring Set [0.25 O/S]

3085380

Unavailable

3

Piston Ring Set [0.50 O/S]

3085381

Unavailable

4

Crankshaft 2

3085374

$338.29

5

Pin, Crank

3085341

Unavailable

6

Rod, Connecting

3085376

$175.99

7

Bearing, End, Large

3085400

$78.56

8

BALL, STEEL

3085024

$5.59

9

Crankshaft 1

3085373

$342.99

9

Asm., Crankshaft [Incl. 4-10,18]

3085399

Unavailable

10

Gear 1, Balancer

3085852

Unavailable

11

Shaft, Balancer

3085404

Unavailable

12

Spacer [1.2]

3084897

$6.39

12

Spacer [0.8]

3084895

$6.39

12

Spacer [1.0]

3084896

$6.39

13

Spacer [1.2]

3084894

$19.99

13

Spacer [0.6]

3240088

$10.39

13

Spacer [1.0]

3084893

$19.99

13

Spacer [0.8]

3084892

$12.79

14

SPROCKET 1

3084882

Unavailable

15

NUT, SLIT

3085528

$35.99

16

Washer

3083904

Unavailable

17

NUT, LOCK

3083905

Unavailable

18

Pin, Dowel

3085346

Unavailable

19

KEY

3081447

Unavailable

20

Key, Woodruff

3080130

Unavailable
