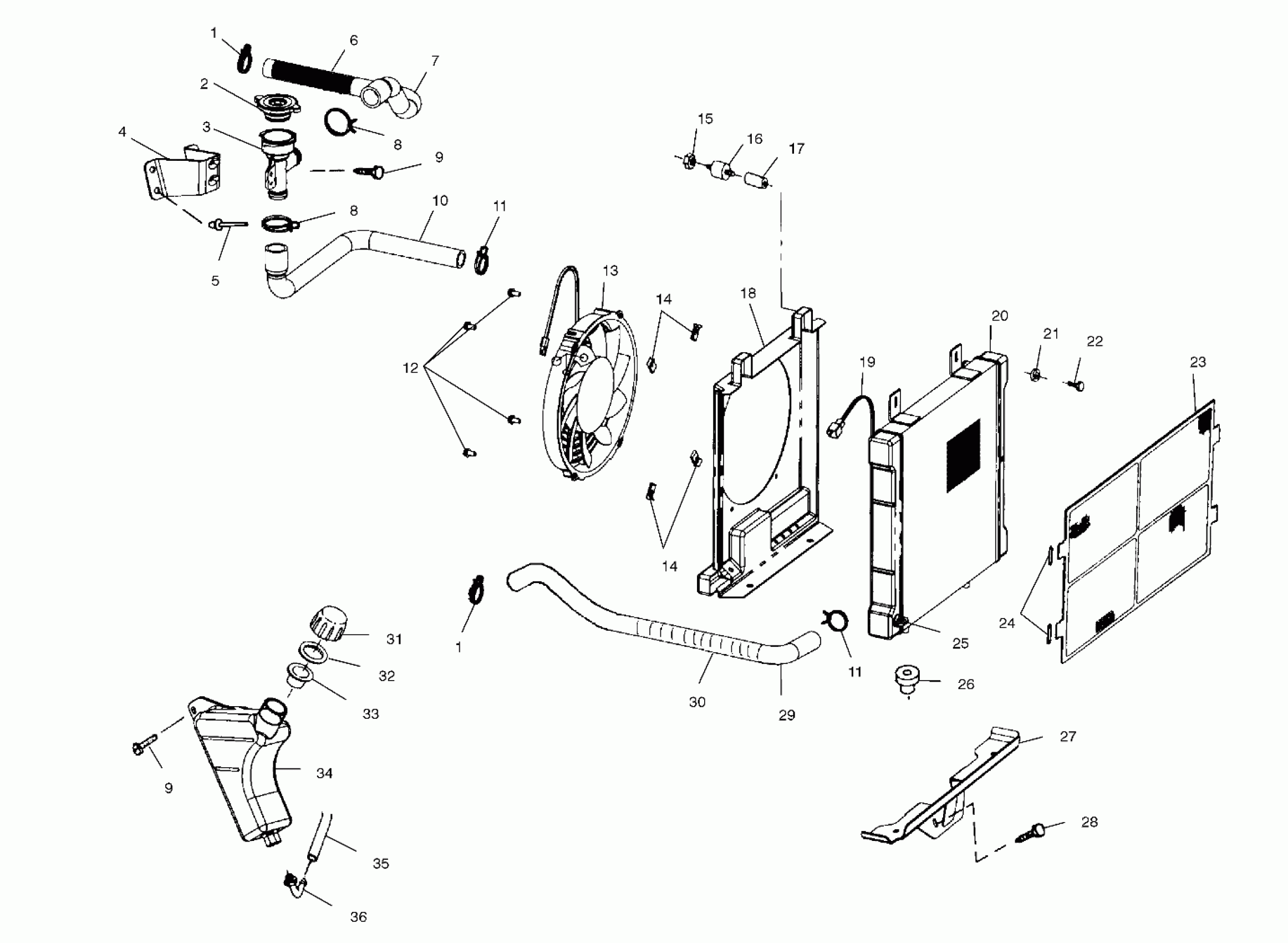

Polaris SPORTSMAN 6X6 - A02CL50AA COOLING SYSTEM - A02CL50AA/DA (4967986798A07) Diagram

#

Description
Price

1

CLAMP, HOSE

7080614

$7.19

1

CLAMP, HOSE

7080614

$7.19

2

Cap, Pressure

1240044

Unavailable

3

Filler, Coolant

5433364

$43.56

4

Bracket, Filler, Coolant

5243505-067

Unavailable

5

RIVET-3/16-.090-.290

7661637

$1.49

6

Flexguard

5433948

Unavailable

7

Hose, Engine, Upper

5411811

$59.99

8

Clamp, 1"

7080827

Unavailable

8

Clamp, 1"

7080827

Unavailable

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

10

Hose, Neck, Filler

5411632

Unavailable

11

Clamp

7080826

$4.79

11

Clamp

7080826

$4.79

12

Screw

7517659

$3.99

13

Asm., Fan and Motor

2410123

$180.79

14

U-Clip

7670111

Unavailable

14

U-Clip

7670111

Unavailable

15

Nutsert

7547069

$3.99

16

Mount, Rubber

3110032

$7.99

17

Spacer

5020572

$8.79

18

Shroud, Fan

5433059

Unavailable

19

Sensor, Thermal

4010161

$103.99

20

Radiator

1240045

Unavailable

21

Washer, Split Lock

7552605

$5.27

22

Screw

7512113

$3.99

23

Cover, Radiator w/Mesh

5433317

$35.35

24

O-Ring

5410607

$5.99

25

Valve, Drain

7052296

Unavailable

25

O-Ring

5411633

Unavailable

26

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

27

Bracket, Radiator, Lower

5243503-067

$154.99

28

SCREW

7512232

$1.49

29

Hose, Engine, Lower

5411694

Unavailable

30

Guard, Hose

5521511

$7.43

31

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

32

GASKET-OVERFLOW CAP

5810279

$2.41

33

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

34

Tank, Surge

5433410

Unavailable

35

Line, Fuel

8450003-1525

$84.99

36

Fitting, Barbed, 90 Degree

7052065

$7.19
