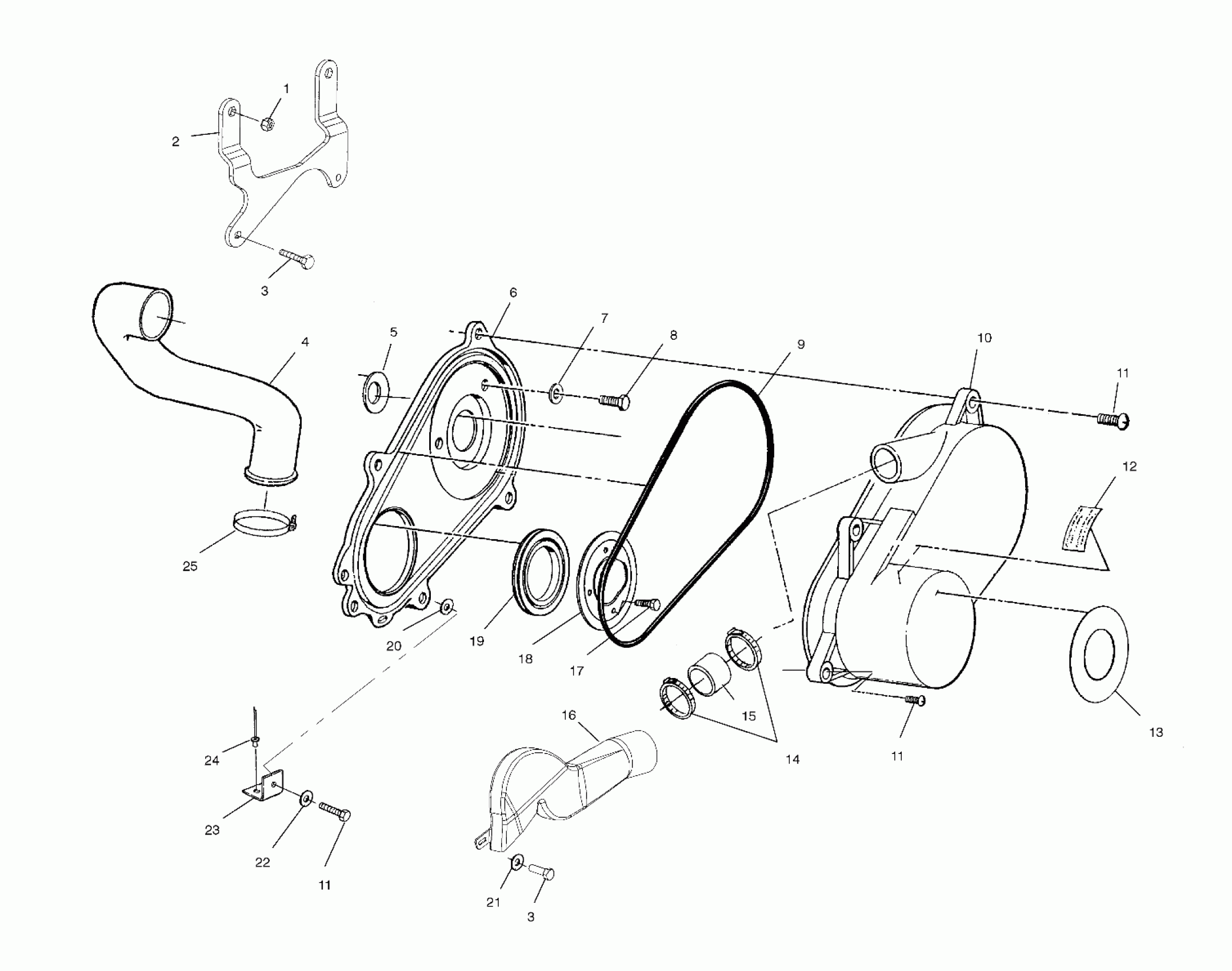

Polaris SPORTSMAN 6X6 - A02CL50AA CLUTCH COVER - A02CL50AA/DA (4967986798C06) Diagram

#

Description
Price

1

Nutsert

7547067

$6.23

2

Bracket, Clutch Cover

5242208-067

Unavailable

3

SCREW

7512232

$1.49

3

SCREW

7512232

$1.49

4

Duct, Clutch Air, Inlet

5433427

Unavailable

5

Seal, Cover

5411553

$23.99

6

Kit, Inner Clutch Cover, Service [Incl. Inner Cover, Seals, Screws]

2201851

$125.46

7

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

8

Screw

7512278

Unavailable

9

Seal, Clutch Cover, Outer

5521578

Unavailable

10

Cover, Clutch, Outer

5433451-070

$178.08

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

11

SCREW

7512094

$1.59

12

Decal, Warning, Clutch Cover

7078689

Unavailable

13

Decal, Automatic Transmission

7074782

Unavailable

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

15

Boot, Duct

5411489

Unavailable

16

Duct, Air Outlet, Clutch

5433657

$36.31

17

SCREW AND WASHER [SEE CRANKCASE PG. D3, REF. 6]

-------

Unavailable

18

Bracket, Retainer, Seal

5242046-067

$34.74

19

Seal, Cover, Case

5410575

Unavailable

20

Spacer

7556091

$3.99

21

Washer, Flat

7558301

$1.49

22

Washer

7555935

$2.39

23

Bracket, Clutch Cover

5242693-067

Unavailable

24

RIVET-3/16-.090-.290

7661637

$1.49

25

Clamp, Narrow Band

7080511

$4.79
