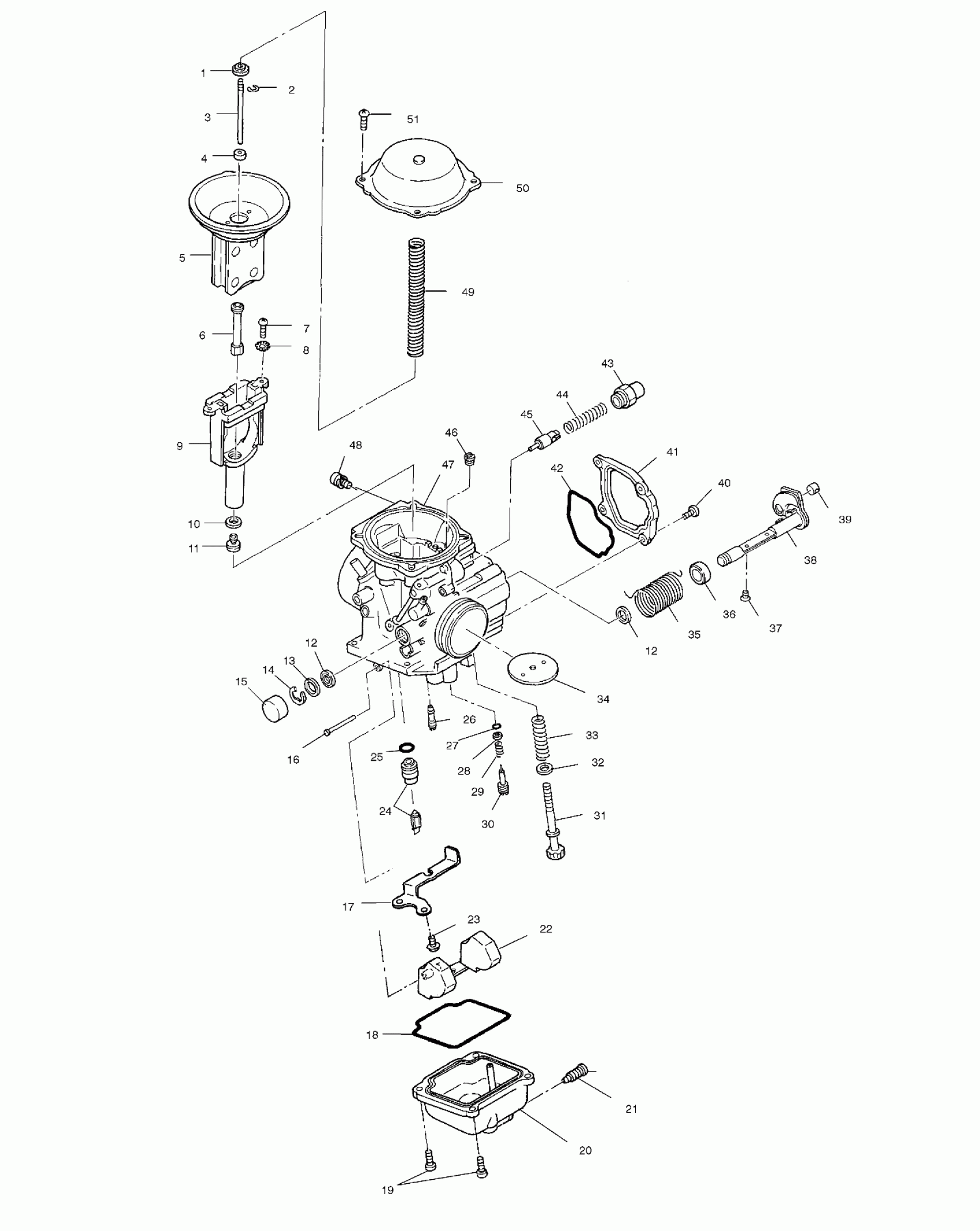

Polaris SPORTSMAN 6X6 - A02CL50AA CARBURETOR - A02CL50AA/DA (4967986798D07) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING

3130508

$6.46

3

Needle, Jet

3130963

$40.46

4

RING

3130752

$5.65

5

Diaphragm

3130732

$156.74

6

Jet, Needle [Q-4M]

3131388

Unavailable

7

SCREW

3130541

$11.11

8

WASHER, SPRING

3130540

$4.76

9

Asm., Jet Block

3130504

$64.75

10

WASHER

3130014

$1.59

11

Jet, Main [#142.5]

3131391

$8.89

12

SEAL

3130515

$12.13

12

SEAL

3130515

$12.13

13

PACKING

----

Unavailable

14

E-RING

3130518

$1.60

15

CAP

3130519

$10.51

16

PIN, FLOAT

3130361

$9.70

17

PLATE

3130594

$32.37

18

O-RING

3130532

$32.37

19

SCREW

3130520

$1.59

20

Asm., Float Body

3130590

$119.98

21

SCREW

3130521

$10.32

22

ASM., FLOAT

3130529

$99.74

23

SCREW

3130591

$3.97

24

Valve, Needle [1.5]

3131360

$61.74

25

O-RING

3130533

$5.65

26

Jet, Pilot [#40]

3131390

$28.32

27

O-Ring

3130522

$5.65

28

Washer

3130523

$2.38

29

Spring

3130525

$5.65

30

Adjuster

3131389

Unavailable

31

Screw, Adjust

3130546

$13.75

32

Ring

3130545

$12.13

33

Spring

3130544

$10.51

34

Valve, Throttle [100]

3130502

$62.92

35

SPRING

3130589

$28.32

36

Ring

3130514

$7.27

37

SCREW

3130501

$3.97

38

Asm., Throttle Shaft

3130513

$79.37

39

GUIDE, CABLE

3130543

$32.37

40

SCREW

3130535

$7.14

41

COVER

3130511

$54.99

42

O-Ring

3130512

Unavailable

43

Holder, Guide

3130199

$28.32

44

SPRING

3130538

$5.65

45

Asm., Plunger

3130593

$40.46

46

Jet, Air [#160]

3130625

$14.56

47

Asm., Carburetor [Incl. 1-38,43-51]

3131387

Unavailable

48

Screw and Washer

3084205

$3.97

49

SPRING

3130505

$28.32

50

ASM., COVER

3130503

$68.79

51

SCREW-MIKUNI C2=0408

3130592

$1.59
