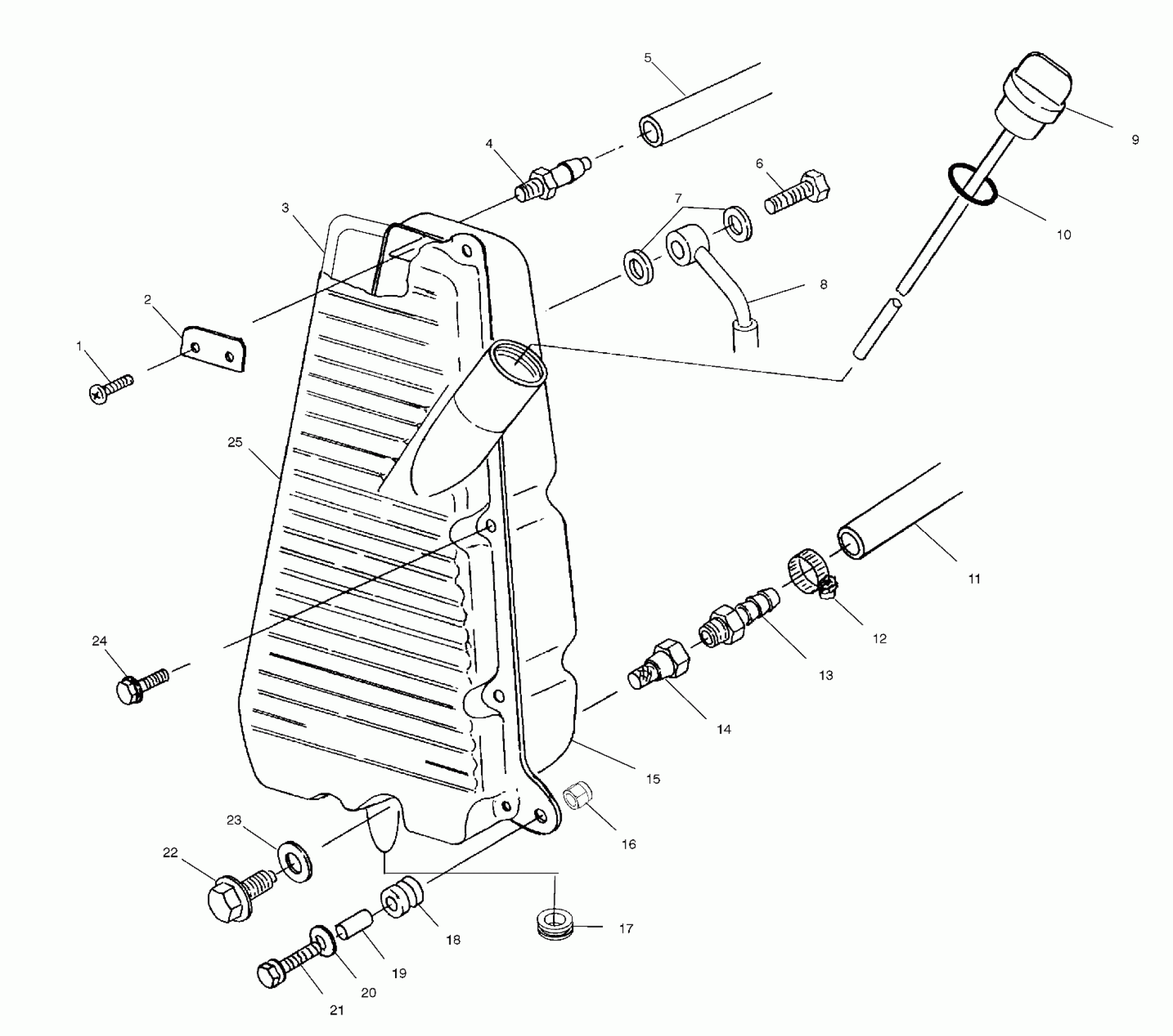

Polaris SPORTSMAN 6X6 - A01CL50AA OIL TANK - A01CL50AA (4964586458A012) Diagram

#

Description
Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

LINE,BREATHER,SPECIAL

5411321

Unavailable

6

BOLT

7517102

Unavailable

7

WASHER,COPPER,14MM.

7555896

$1.49

8

TUBE BANJO RETURN

7052240

Unavailable

9

DIPSTICK

5432289

Unavailable

10

O RING

5410889

Unavailable

11

HOSE,FORMED,3/8I.D.

5411846

Unavailable

12

CLAMP-HOSE,.875-SS

7080474

$8.40

13

FITTING,HOSE BR

7052106

$6.23

14

SCREEN,OIL FILTER

2530014

$9.91

15

TANK,LH,OIL

5131785

$131.99

16

NUT-LOCK(10)

7542122

$1.49

17

Grommet

5411042

Unavailable

18

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

19

BUSHING,MTG.

5333204

$26.39

20

WASHER(10)

7558301

$1.49

21

SCREW(10)

7512144

Unavailable

22

PLUG,MAG.12 M.

7051524

$27.99

23

WASHER

5850135

$3.19

24

SCREW(10)

7515158

$4.79

25

TANK,OIL,RH

5131255

Unavailable
