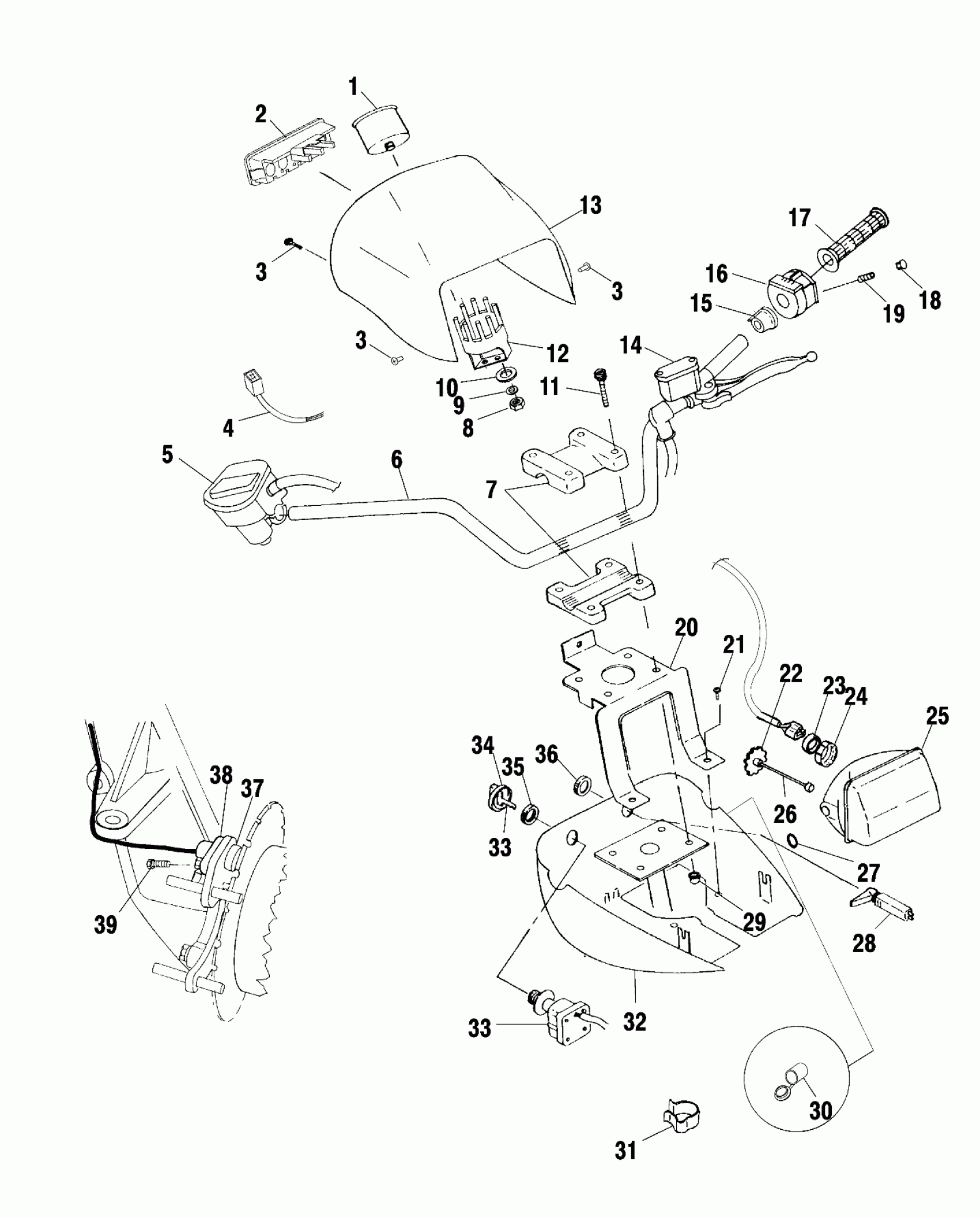

Polaris SPORTSMAN 6X6 - A01CL50AA HANDLEBAR and HEADLIGHT POD - A01CL50AA (4964586458D001) Diagram

#

Description
Price

1

SPEEDO,ASM,KILO,3.38" 6-PULSE Substituted by 3280358 (DA)

3280312

Unavailable

1

ASM-SPEEDOMETER,KILO,3.38",6P (AA)

3280363

Unavailable

2

PANEL-INDICATOR,SVC,STD PVT

4010459

Unavailable

2

BULB-INDICATOR,HOBBS

4010416

$9.59

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

HARNESS,CTR.PNL.

2460668

$11.51

5

ASM., THROTTLE CONTROL (See Controls - Throttle Asm./Cable Pg. B7, Ref. 5)

-------

Unavailable

6

TUBE,HNDLBR,GEN4,POD,6X6BLK

5244581-067

$83.59

7

KIT,H'BAR BLOCK (Incl. Blocks and 7,11,29)

2200774

Unavailable

7

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

8

NUT, BRASS(10)

7541933

$4.99

9

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

10

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

11

SCREW(10)

7515189

Unavailable

12

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

13

POD-HEADLIGHT,UPPER,E B GREEN

5433763-195

Unavailable

14

Asm., Master Cylinder (See Controls - RH, Master Cylinder/Brake Line Pg. B9 for details)

-------

Unavailable

15

SPACER-SWITCH,LH,99

5433903

Unavailable

16

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

17

GRIP-HNDLBAR,7/8 ID,ATV,BLACK

5433834-070

$24.27

18

PLUG,HOLE(10)

5432952

$5.59

19

SCREW,SET

7517625

$4.79

20

BRKT-POD MOUNTING,BLK

5244969-067

$44.99

21

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

22

KNOB,ADJUSTING

4032079

$23.99

23

BOOT, HEADLIGHT

5411120

$27.99

24

COLLAR,LOCK

4032077

$27.99

25

BULB,QUARTZ.H/L,INDY

2870448

$24.99

25

LENS&REFLECTOR ASM.

4032075

Unavailable

26

ROD,ADJUSTING

4032078

Unavailable

27

O RING

5410163

$1.60

28

CABLE-CHOKE,FRICTION,40"

7081008

$79.99

29

NUT-LOCK(10)

7542122

$1.49

30

RECEPTACLE-POD MNT,12 VOLT

4010283

Unavailable

31

CLIP,CABLE RETAIN,(10)

7080631

$6.29

32

POD-HEADLIGHT,LOWER,SNAP,BLK

5433762-070

$114.99

33

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

33

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

33

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

33

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

33

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

33

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

34

KEY SWITCH KEY COVER

5433534

$12.35

35

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

36

NUT,CHOKE,M24X1.5 THD,M29 HEX

7080922

$3.19

37

CAP-HALL SENSOR

5132382

$23.99

38

SENSOR,HALLEFFECT

4010298

$111.99

39

Screw

7517658

$5.59
