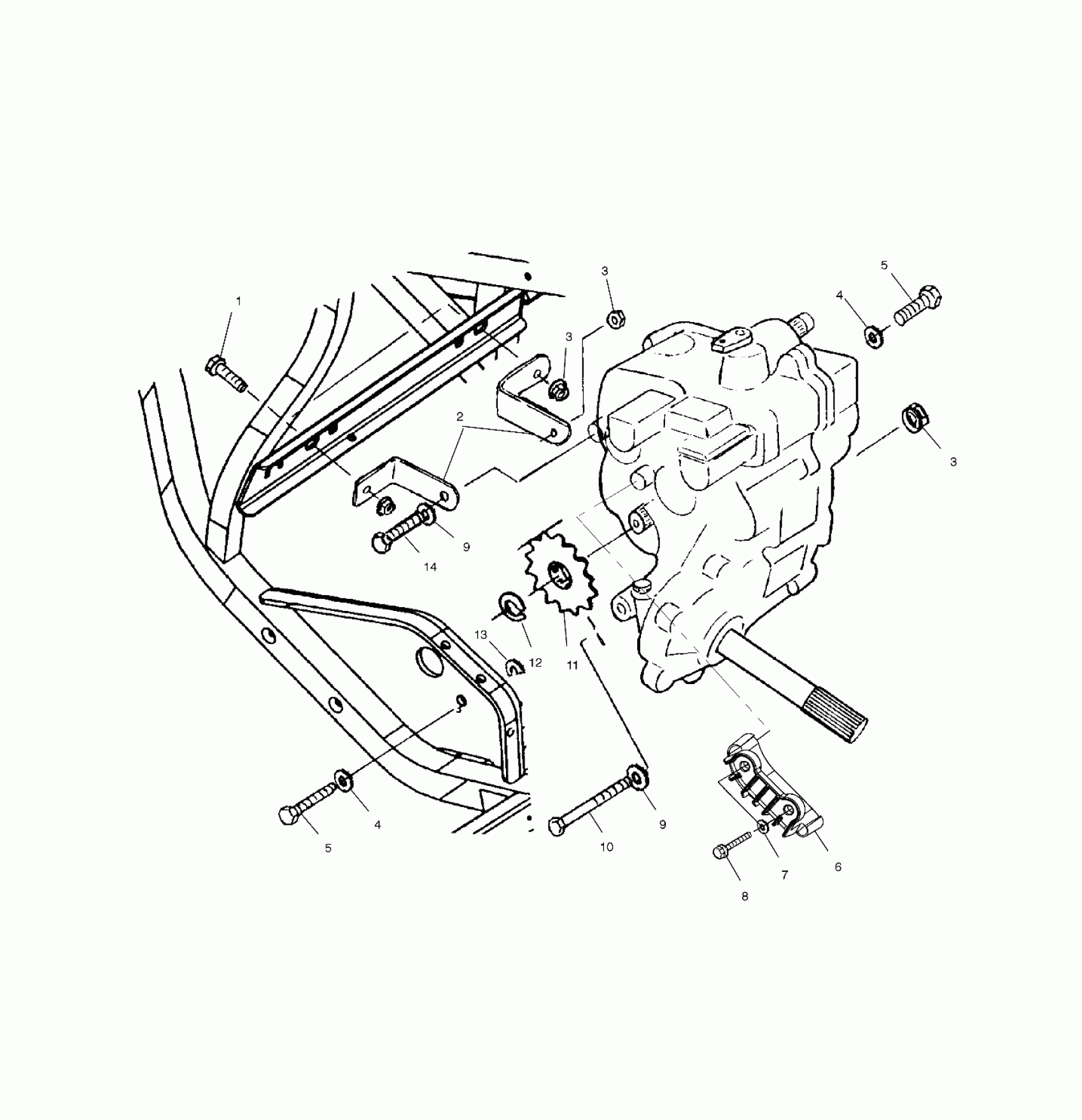

Polaris SPORTSMAN 6X6 - A01CL50AA GEARCASE MOUNTING - A01CL50AA (4964586458C008) Diagram

#

Description
Price

1

SCREW

7517632

$5.56

2

BRKT,X'MISSION MT,BLK

5242456-067

$24.99

3

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

3

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

3

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

4

WASHER(10)

7552603

$0.79

4

WASHER(10)

7552603

$0.79

5

SCREW(10)

7512492

$1.19

5

SCREW(10)

7512492

$1.19

6

GUIDE-CHAIN,TRANSMISSION

5433109

$32.37

7

WASHER(10)

7558301

$1.19

8

BOLT(10)

7512276

$4.76

9

WASHER(10)

7555806

$0.79

9

WASHER(10)

7555806

$0.79

10

SCREW

7517646

$7.14

11

SPKT, 12T

3221044

$44.51

12

RING,SNAP(10)

7710434

$3.97

13

SPACER,(10) (.020")

5210764

Unavailable

13

SHIM,.010,GEARCASE (.010")

5211065

Unavailable

13

SHIM,(.030) (.030")

5211517

Unavailable

14

Screw

7517640

$10.32
