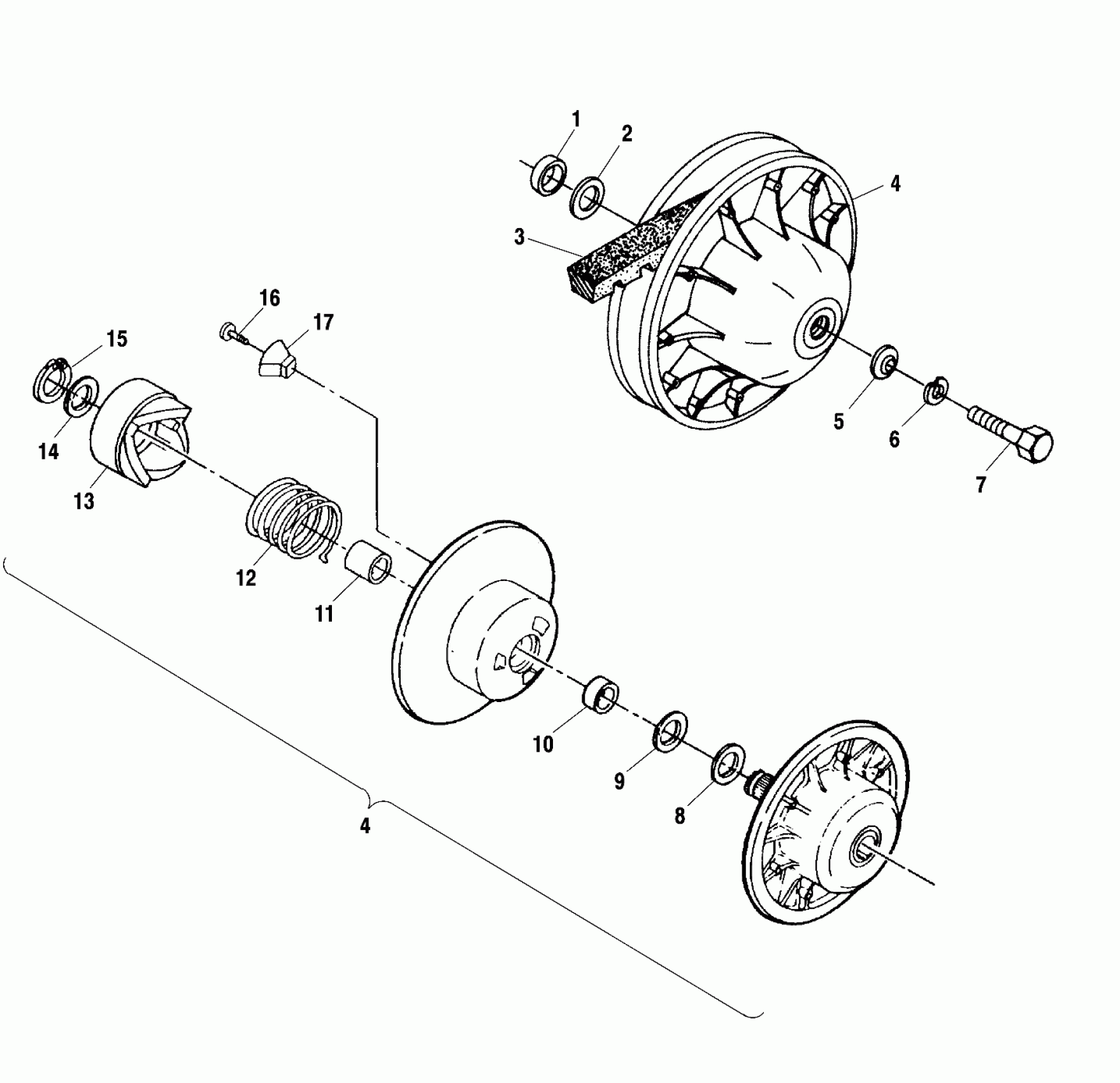

Polaris SPORTSMAN 6X6 - A01CL50AA DRIVEN CLUTCH - A01CL50AA (4964586458C004) Diagram

#

Description
Price

1

SPACER,DRIVEN,ATV

5010409

Unavailable

2

BUSHING-7/8 X 3/8 X 16 GA-Y (3 Max)

7556120

Unavailable

3

BELT,DRIVE,ATV,CLOSE TOL(5)

3211077

$63.99

4

CLUTCH,DRIVEN,HVY RET (Incl. 8-11,14-17)

1322180

$614.99

4

CLUTCH,DRIVEN,HVY RET (Incl. 8-11,14-17)

1322180

$614.99

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

BOLT(10)

7515382

$2.39

8

WASHER(10) (.020)

7555898

Unavailable

8

WASHER(10) (.025)

7556076

Unavailable

9

WASHER(10) (.030)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING,CLUTCH,(RED)

7041198

$52.60

13

RAMP,STA.MACH,HVY RET

5131446

$87.99

14

SPACER(10)

5210752

$1.59

15

RING,RET.

7710448

$3.19

16

BOLT(10)

7511854

$1.49

17

BUTTON,RAMP

5430766

Unavailable
