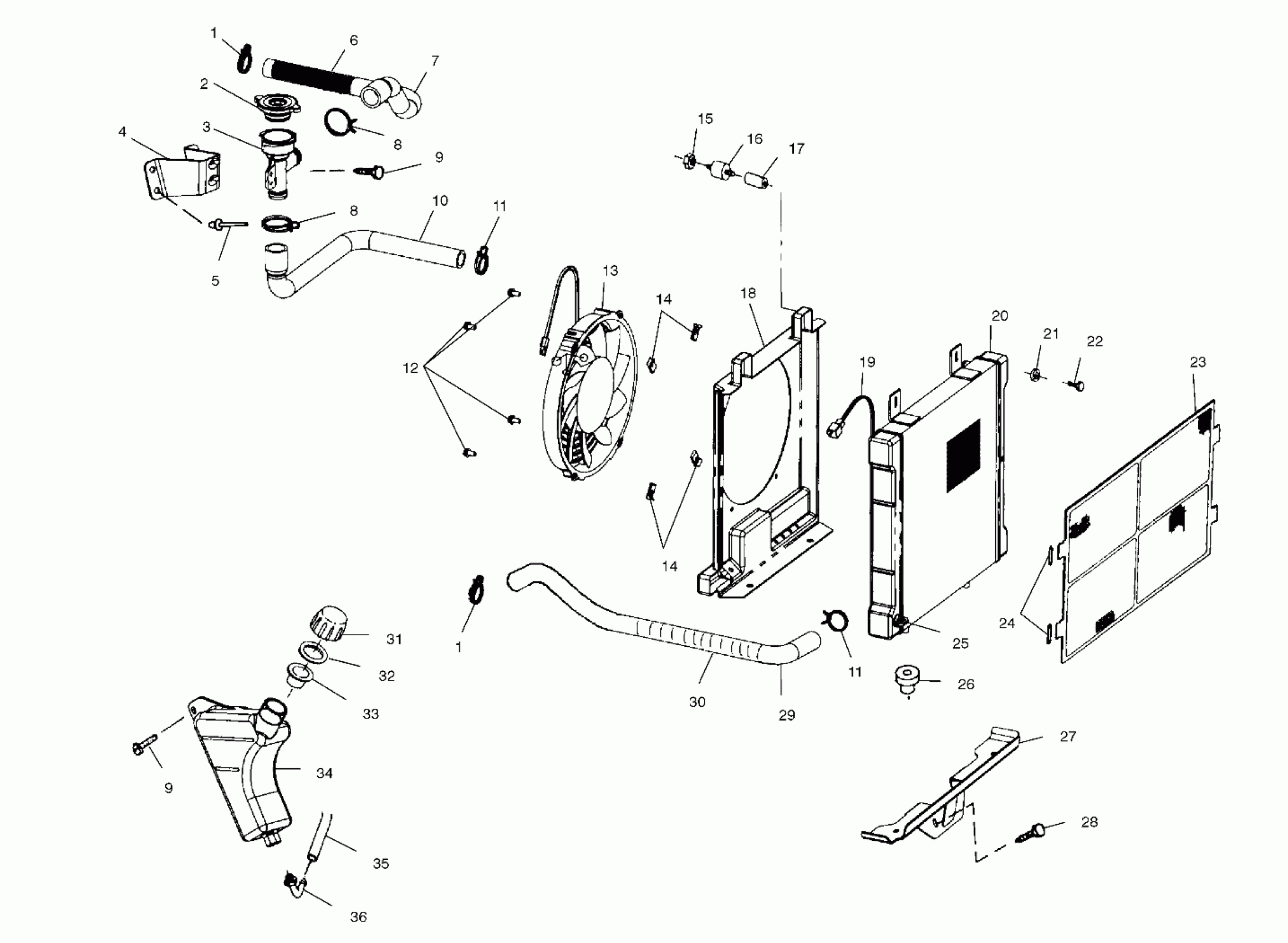

Polaris SPORTSMAN 6X6 - A01CL50AA COOLING SYSTEM - A01CL50AA (4964586458A007) Diagram

#

Description
Price

1

CLAMP,HOSE,(10)

7080614

$7.19

1

CLAMP,HOSE,(10)

7080614

$7.19

2

CAP-PRESSURE,13 PSI

1240044

Unavailable

3

FILLER-REMOTE COOLANT

5433364

$43.56

4

BRKT,REMOTE COOLANT FILL

5243505-067

Unavailable

5

RIVET,INTERLOCK,B(50)

7661638

$1.49

6

FLEXGUARD-PLASTIC GUARD

5433948

Unavailable

7

HOSE,ENGINE,UPPER

5411811

$59.99

8

CLAMP-ROTO SPRING 1"

7080827

Unavailable

8

CLAMP-ROTO SPRING 1"

7080827

Unavailable

9

SCREW(10)

7512084

$1.49

9

SCREW(10)

7512084

$1.49

10

HOSE,FILLER NECK

5411632

Unavailable

11

CLAMP-ROTO CLIP

7080826

$4.79

11

CLAMP-ROTO CLIP

7080826

$4.79

12

Screw

7517659

$3.99

13

FAN&MOTOR,ASM,SPAL

2410123

$180.79

14

CLIP,U,ZY

7670111

Unavailable

14

CLIP,U,ZY

7670111

Unavailable

15

NUTSERT,HEX(10)

7547069

$3.99

16

Mount, Rubber

3110032

$7.99

17

Spacer, Mount

5020572

$8.79

18

SHROUD-FAN,ATV

5433059

Unavailable

19

SENSOR-THERMAL/HARNESS

4010161

$103.99

20

Radiator

1240045

Unavailable

21

WASHER(10)

7552605

$5.27

22

SCREW(10)

7512113

$3.99

23

DESC NOT_AVAILABLE

5243506

Unavailable

24

O RING

5410607

$5.99

25

VALVE-PLASTIC RAD/COOLER DRAIN

7052296

Unavailable

25

O-RING,BUNA [No Longer Available]

5411633

Unavailable

26

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

27

BRKT,RADIATOR,LOWER,BLK

5243503-067

$154.99

28

BOLT(10)

7512232

$1.49

29

HOSE,LOWER ENGINE

5411694

Unavailable

30

GUARD-HOSE,12"

5521511

$7.43

31

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

32

GASKET-OVERFLOW CAP

5810279

$2.41

33

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

34

TANK,SURGE

5433410

Unavailable

35

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

36

FITTING,90 DEGREE

7052065

$7.19
