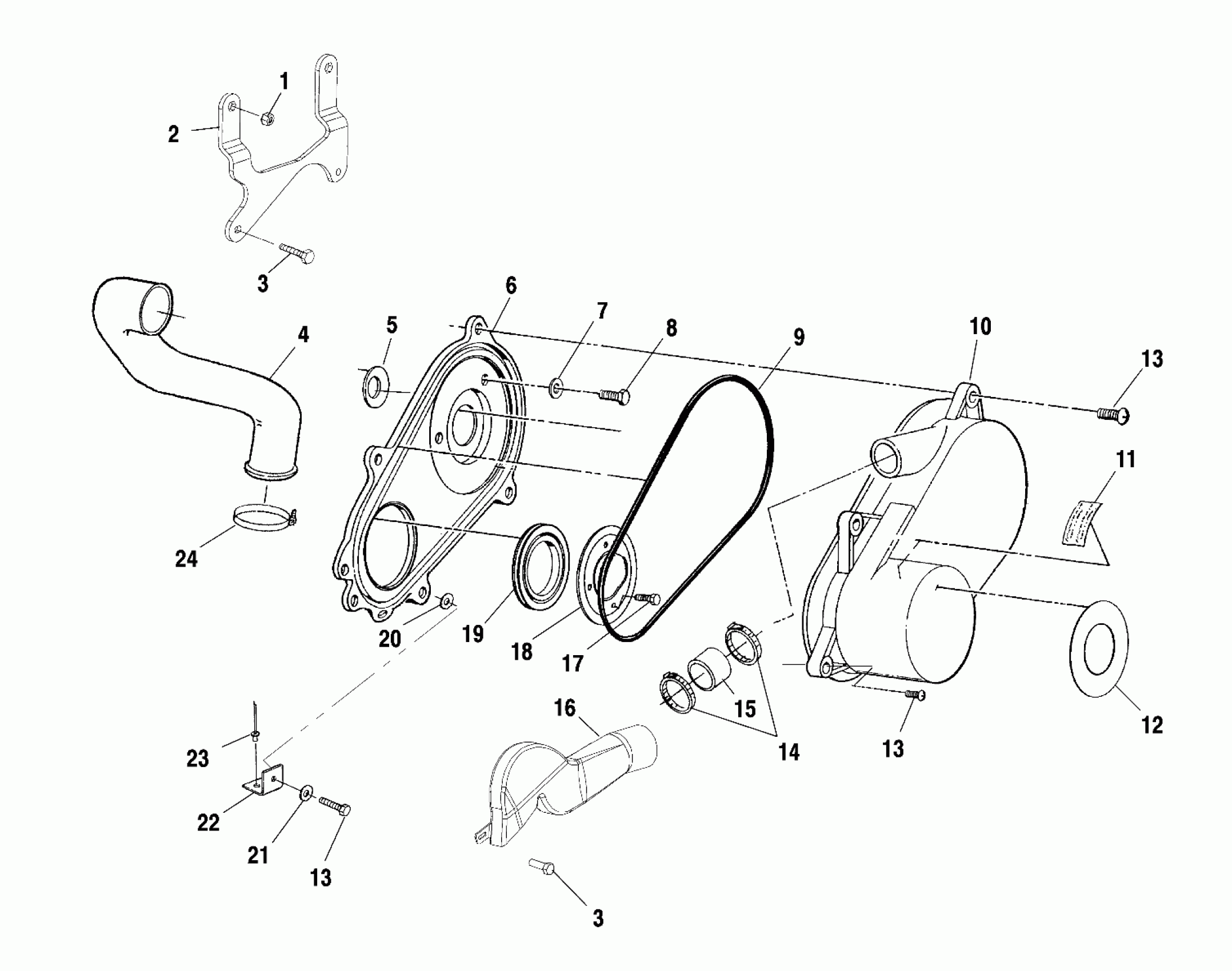

Polaris SPORTSMAN 6X6 - A01CL50AA CLUTCH COVER - A01CL50AA (4964586458C006) Diagram

#

Description
Price

1

NUTSERT,HEX

7547067

$6.23

2

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

4

DUCT-CLUTCH AIR INLET

5433427

Unavailable

5

SEAL,CLUTCH CVR,INNER

5411553

$23.99

6

COVER,INNER CLUTCH,KIT SVC,863 (Incl. 13)

2201851

$125.46

7

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

8

BOLT(10)

7512278

Unavailable

9

SEAL,CLUTCHCOVER

5521301

$30.88

10

COVER,CLUTCH-OUTER,HV,BLK

5433451-070

$178.08

11

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

12

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

13

SCREW(10)

7512094

$1.59

13

SCREW(10)

7512094

$1.59

13

SCREW(10)

7512094

$1.59

14

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

15

BOOT,DUCT,HI-FLOW

5411489

Unavailable

16

DUCT,AIROUTLET,CLUTCH

5433657

$36.31

17

SCREW AND WASHER (See Crankcase Pg. D3, Ref. 6)

-------

Unavailable

18

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067 (If built before 8/15/00)

5240409-067

Unavailable

18

BRACKET,CLUTCH SEAL (If built after 8/15/00)

5242046-067

$34.74

19

Seal, Cover Case

5410575

Unavailable

20

WASHER,NYLON

7555932

$2.39

21

WASHER(10)

7555935

$2.39

22

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

CLAMP, NARROW BAND(10)

7080511

$4.79
