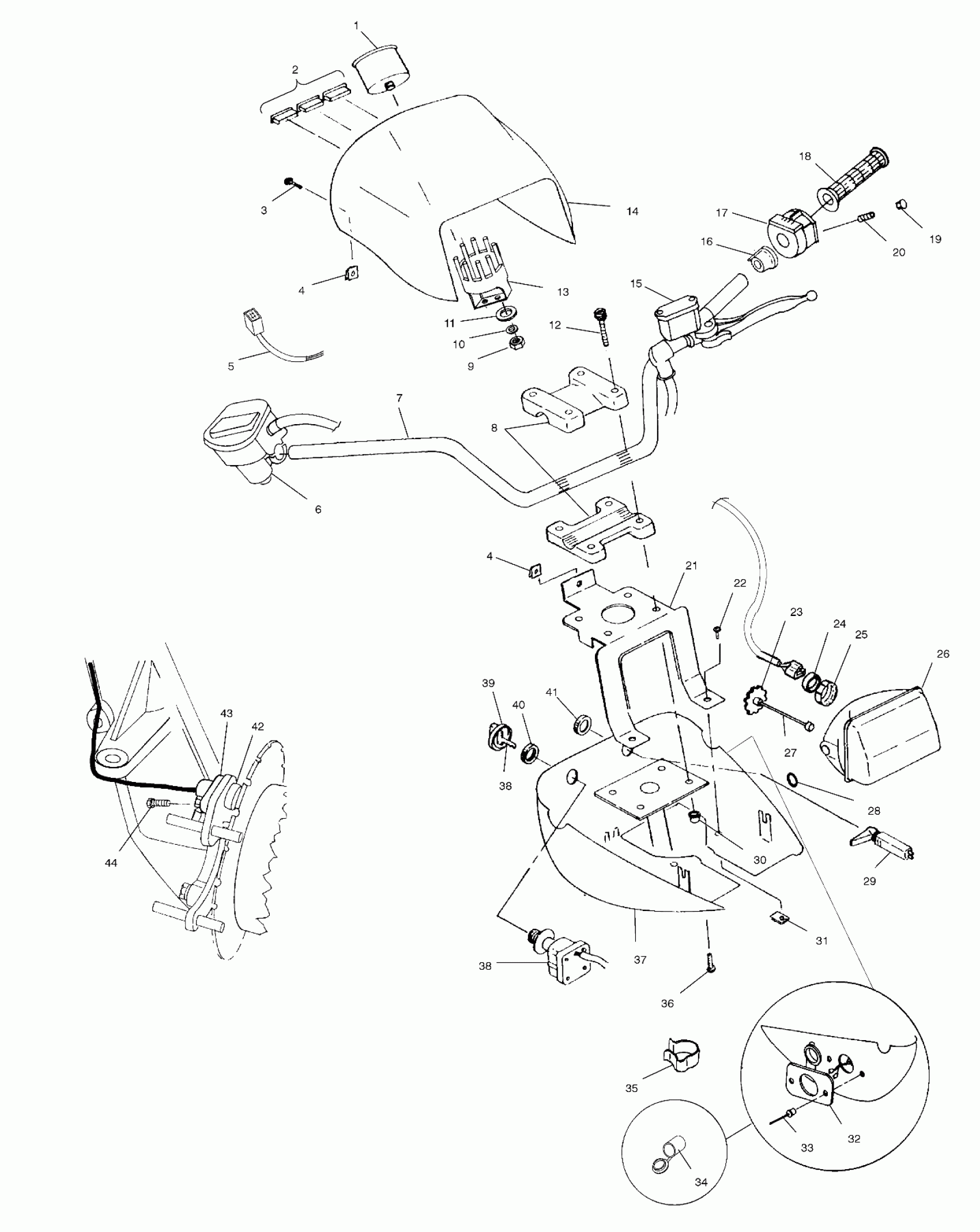

Polaris SPORTSMAN 6X6 - A00CL50AA HANDLEBAR and HEADLIGHT POD - A00CL50AA (4954815481D003) Diagram

#

Description
Price

1

SPEEDO ASM,3.38",6-PULSE Substituted by 3280363 (AA)

3280290

Unavailable

1

SPEEDO,ASM,KILO,3.38" 6-PULSE Substituted by 3280358 (DA)

3280312

Unavailable

2

PLUG,INDIC.HOLE

5430967

$5.65

2

INDIC"HOT TEMPERATURE"

4040053

$31.99

2

INDIC"NEUT./REV."

4040054

$31.99

3

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

4

NUT

7670086

$3.99

4

NUT

7670086

$3.99

5

HARNESS,CTR.PNL.

2460668

$11.51

6

Asm., Throttle Control (See Controls - Throttle Asm./Cable Pg. B9, Ref. 5)

-------

Unavailable

7

TUBE-HANDLEBAR,GEN 4,POD,BLK

5242987-067

$114.99

8

KIT,H'BAR BLOCK (Incl. Blocks and 8,12,30)

2200774

Unavailable

8

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable

9

NUT, BRASS(10)

7541933

$4.99

10

WASHER, LOCK,(S.S.)(10)

7555868

Unavailable

11

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

12

SCREW(10)

7515189

Unavailable

13

CLAMP,BACK,ELEC.SPEEDO,3.38"

3280291

Unavailable

14

POD,HEADLIGHT,UPPER,EB GREEN

5433042-195

Unavailable

15

Asm., Master Cylinder (See Controls - RH, Master Cylinder/Brake Line Pg. B11 for details)

-------

Unavailable

16

SPACER,SWITCH,LH

5432926

$2.63

17

SWITCH-HANDLEBAR,H/L/O,REV/OR

4010262

$203.99

18

GRIP, HANDLEBAR

5431030

$24.27

19

PLUG,HOLE(10)

5432952

$5.59

20

SCREW,SET

7517625

$4.79

21

BRKT,POD MTG,BLK.

5240586-067

Unavailable

22

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

23

KNOB,ADJUSTING

4032079

$23.99

24

BOOT, HEADLIGHT

5411120

$27.99

25

COLLAR,LOCK

4032077

$27.99

26

BULB,QUARTZ.H/L,INDY

2870448

$24.99

26

LENS&REFLECTOR ASM.

4032075

Unavailable

27

ROD,ADJUSTING

4032078

Unavailable

28

O RING

5410163

$1.60

29

KIT-CHOKE CONTROL

2200188

$24.27

29

CABLE,CHOKE,W/ADJUSTER

7080726

$99.99

30

NUT-LOCK(10)

7542122

$1.49

31

NUT,U-TYPE(10)

7670089

$5.59

32

POWERPLUG ASM,12V (If built before 9/27/99)

2410025

Unavailable

33

RIVET(50) (If built before 9/27/99)

7621334

$1.49

34

RECEPTACLE-POD MNT,12 VOLT (If built after 9/27/99)

4010283

Unavailable

35

CLIP,CABLE RETAIN,(10)

7080631

$6.29

36

SCREW(10)

7522021

$3.99

37

POD,H/L.LOW.BLK Substituted by 5433366-070 (If built before 9/27/99)

5432314-070

$93.08

37

POD,HEADLIGHT,LOWER,BLK (If built after 9/27/99)

5433366-070

$93.08

38

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

38

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

38

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

38

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010278

Unavailable

38

Blank, Key, Series 2200, 2300, 2700, 2800. Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.

4010321

Unavailable

38

SWITCH,IGNITION (Incl. Key)

4110264

$104.24

39

KEY SWITCH KEY COVER

5433534

$12.35

40

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

41

Nut

7080229

$19.99

42

CAP-HALL SENSOR (Used w/401298 only)

5132382

$23.99

43

SENSOR,HALLEFFECT (If built after 8/09/99)

4010298

$111.99

43

SENSOR,HALL EFFECT Substituted by 2201625 (If built before 8/09/99)

4040081

Unavailable

44

Screw

7517658

$5.59
